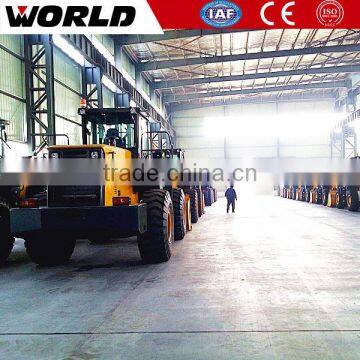

3m3 Rock Bucket Mining Machine 5ton Wheel Loader Prices

Name: 3m3 Rock Bucket Mining Machine 5ton Wheel Loader Prices
Brand: World
SKU: 140754618
Availability: InStock

US$ 40,000 - 45,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Brand Name:

World

Model Number:

W156

World Heavy Industry (China) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name World

Model Number W156

Place of Origin Jiangsu, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8075x2980x3500mm

Rated Load 5000kg

Certification CE GOST-R ISO9001

Warranty 12 moths

After-sales Service Provided Engineers available to service machinery overseas

3m3 rock bucket mining machine 5ton wheel loader prices

Main Features 5ton W156 construction machines ZL50G mini wheel loader prices

-Cummins engine, 160kw

-3m3 bucket 5ton W156 construction machines ZL50G mini wheel loader prices

-5000kg rated load 5ton W156 construction machines ZL50G mini wheel loader prices

-A/C cabin,Joystick control,Alarm

-CE marked 5ton W156 construction machines ZL50G mini wheel loader prices

5ton W156 construction machines ZL50G mini wheel loader prices

Specifications of 3m3 rock bucket mining machine 5ton wheel loader prices

Model: W156	5 ton wheel loader, with air conditioner

Basic Data
Bucket Capacity	3.0 or 3.6m³
Rated Load	5000kg
Travelling Speed
Forward 1st	0-11.5km/h
Forward 2nd	0-37.5km/h
Reverse 1st:	0-17km/h
Max. Traction	165kN
Max. Break Out Force	150kN
Min. Turning Radius (outside tires)	6700mm
Max. Dumping Height	3100mm
Max. Reach	1200mm
Total Hydraulic Cycle Time	≤11.1s
Full Bucket Lifting Time	5.7s
Dimensions (LxWxH)	8075x2980x3500mm
Min. Clearance Over Ground	450mm
Operating Weight	16200kg

Diesel Engine
Model	CUMMINS 6CTA8.3 or C6121 or WEICHAI WD10G
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output	162/162/160kW
Rated Speed	2200rpm
Max. Torque	860/860/908N.m

Transmission
Model	ZL50
Manufacturer	Hangzhou Advance Gearbox Group Co., Ltd
Rated Input Power	154kW
Rated Input Speed	2200rpm
Hydraulic Torque Converter Model	Single stage, two phase four components
Torque Ratio When Zero Speed	4
Transmission Type	two forward and one reverse gears/power shift, planet type
Transmission Type	two forward and one reverse gears/power shift, planet type
