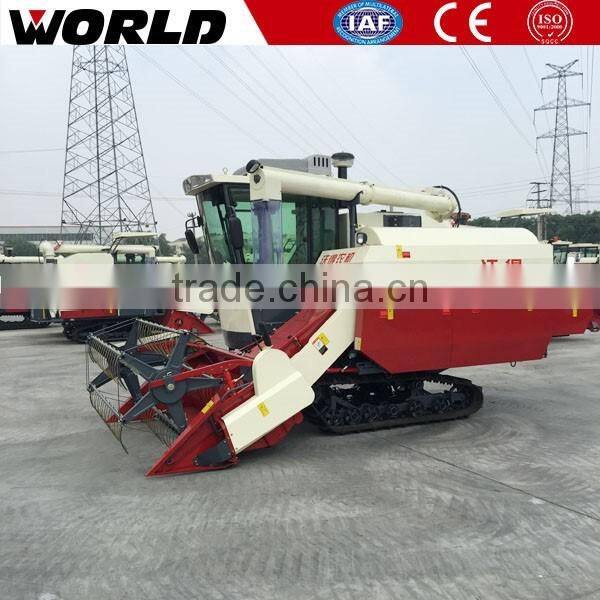

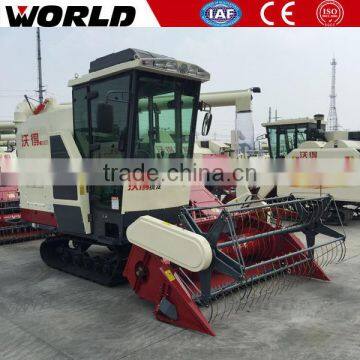

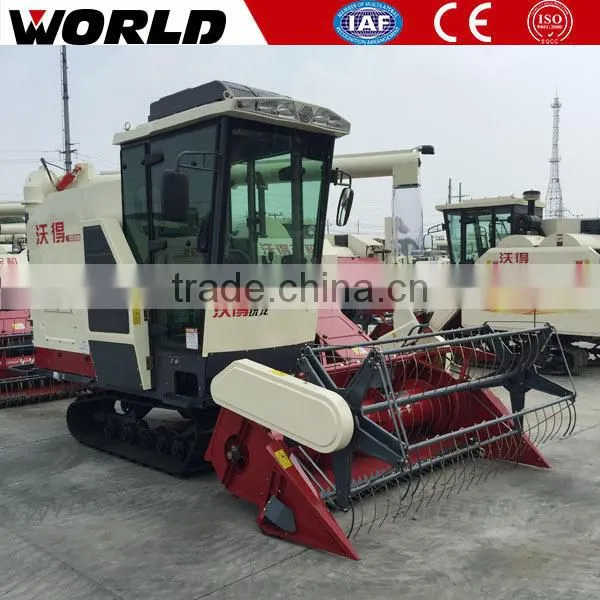

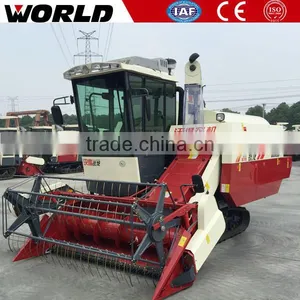

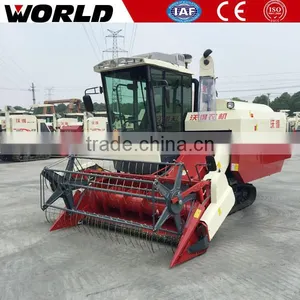

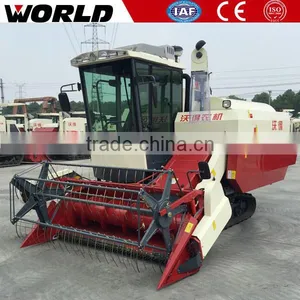

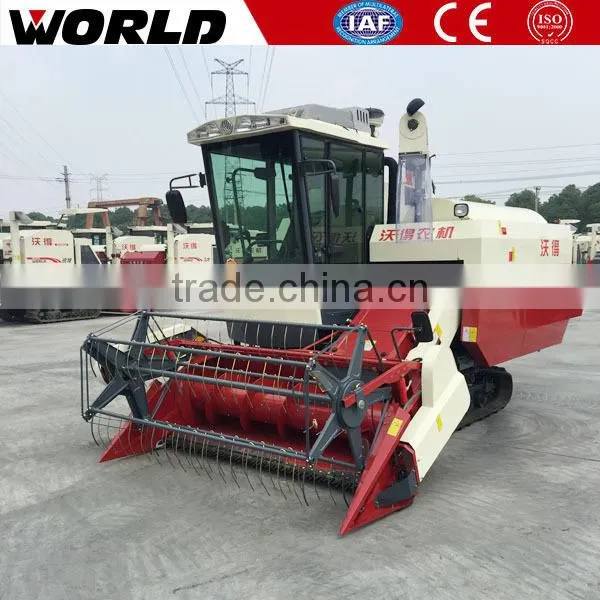

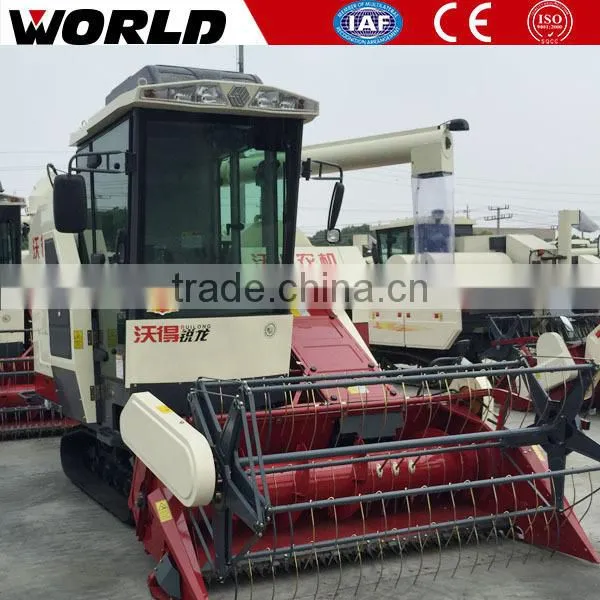

4LZ-5.0E 98HP 1.4m3 grain tank small rice wheat harvester machine
Main Features:
-Changchai 4L88 engine, 98hp
-Korean imported HTS 40CC
-Imported belts
-1.4m3 grain tank
-360 degree rotary auger
-Sunshade or Cabin with A/C
Specifications of 4LZ-5.0E 98HP 1.4m3 grain tank small rice wheat harvester machine
Feeding Capacity (kg/s) |
5 | |
Work Dimension L*W*H (mm) |
5100*2890*2700 |
|
Weight (kg) |
3100 | |
Cabin/Sun shade |
Cabin with A/C |
|
Engine Part |
Model No. |
Changchai 4L88 |
Power/Speed (hp/rpm) |
98/2600 |
|
| Fuel |
Light Diesel Oil
|
|
| Fuel Capacity (L) | 130 | |
Fuel Consumption(kg/hm2) |
12-30 | |
|
Stat
|
Motor Starter |
|
Gear Box |
ZKB65 made by WORLD Factory. |
|
|
HST
|
40CC HST Imported from south Korea.
|
|
|
Harvesting Unit
|
Working Width (mm)
|
2200 |
|
Work Efficiency(hm2/h)
|
0.5~0.8
|
|
Details of 4LZ-5.0E 98HP 1.4m3 grain tank small rice wheat harvester machine
|
|
|
Chinese famous Changchai brand engine, powerful and lower fuel consumption. |
130L fuel tank, enough for one day working, more convenient and higher efficiency. |
World Self-produced Bigger gearbox with Korean brand HST (400cc) for higher performance. |
|
|
|
Lighter and simple design of reel assembly. |
Stronger feeding auger. |
It’s easy to solve block of conveyor by control this lever for rotating reversely. |
|
|
|
Double-arms type support for tension wheel. |
Top and side cover can be opened to clean and maintenance |
360 degree rotary grain discharge pipe. |
