Axial flow World Brand new mini rice wheat small combine harvester
1, Small harvester with 60hp diesel engine suitable for slope mountain land ,can harvester rice ,wheat ,soybean ,rape and other cereal .
2,Axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3,With a large convery can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration
4,Extramely strong classis for the machine made by World .
Specifications:
Dimension LxWxH (mm) |
4800x2560x2700 |
||
Weight (kg) |
2110 |
||
Feed Capacity (kg/s) |
3 |
||
Cabin/Sunshade |
Sunshade |
||
Engine |
Work Type |
Vertical, Water-cooling, 4 strokes Direct Inject |
|
Displacement (L) |
2.136 |
||
Power/Speed (hp/rpm) |
60/2400 |
||
Fuel |
0# Diesel |
||
Fuel Capacity (L) |
71.8 |
||
Start |
Motor Starter |
||
Battery (V/Ah) |
12/165 |
||
Gear Box |
Hydraulic Gear Box |
||
HST |
40CC HST Imported from Republic Korea |
||
Walking Unit |
Rubber Track |
Width× Ground Contact (mm) |
400×1350 |
Center Distance (mm) |
1030 |
||
Average Contact Pressure |
20.9[0.21] |
||
(kpa[kgf]/cm2) | |||
Min. Ground Clearance (mm) |
250 |
||
Gear Shifts |
Variable Sun-transmission 3 Shift |
||
Walk Speed |
Forward (m/s) |
Low:0~0.97 Medium:0~1.37 High:0~1.85 |
|
Reverse (m/s) | |||
Harvesting Unit |
Grain Lifter |
Divider |
|
Reel Bat |
Dia. × Length (mm) |
900×1828 |
|
Adjusting Means |
Hydraulic |
||
Cut Width (mm) |
2000 |
||
Stubble Height[Lift] (mm) |
30cm or above |
||
Fallen Crop(Angle) |
Flow: less than 85° Reverse less than 70° |
||
Threshing Unit |
Threshing Mode |
Axial Flow Type, Beat Bar |
|
Threshing Drum |
Dia. × Length (mm) |
550×1290 |
|
Rotating Speed (rpm) |
765/813 |
||
Remove mode |
Flight Auger |
||
Separating Type |
Vibrating Screen· Air Separating |
||
Area of Screens (m2) |
1.64 |
||
Grain-unloading Unit |
Capacity (L) |
0.3m3 |
|
Grain Tank |
No. of Mouth (pcs) |
2 |
|
Grain Unloading |
2 bags |
||
Alarm and other units |
Re-separating, Vertical Transmission |
Yes |
|
Block of Auger |
Yes |
||
Grain Tank to be full of grain |
Yes |
||
Water Temperature |
Yes |
||
Battery to be charged |
Yes |
||
Oil Pressure of Engine |
Yes |
||
Crop |
Rapeseed Rice Wheat |
||
Work Efficiency(Ha./Hour) |
0.33~0.47(it depends on crop varieties and work conditions) |
||
Crops |
Rice, Wheat, Rapeseed |
||
Total Loss |
Less than 2.5% |
||
Breakage |
Less than 1.5% |
||
Impurity |
Less than 1.5% |
||

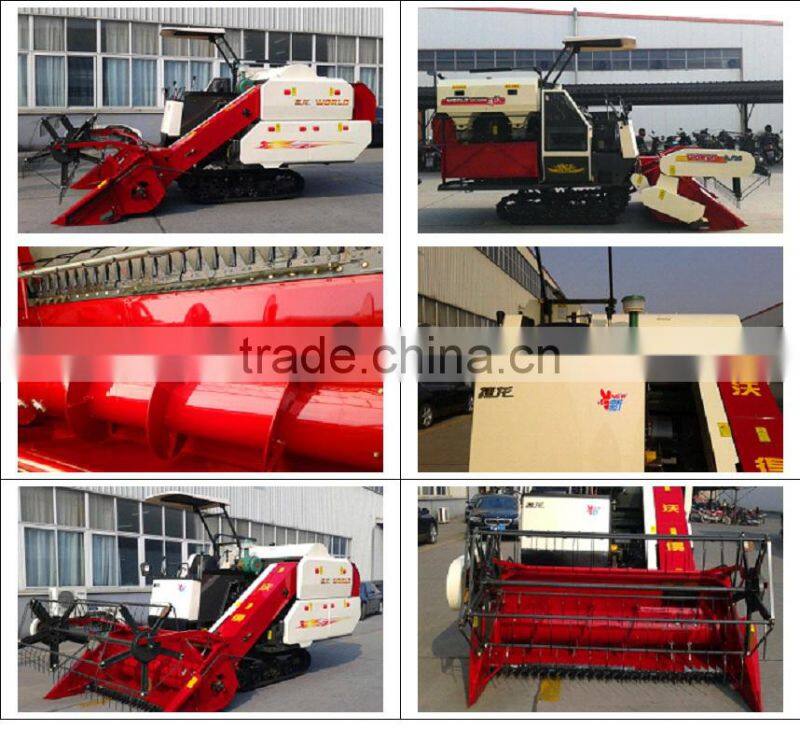

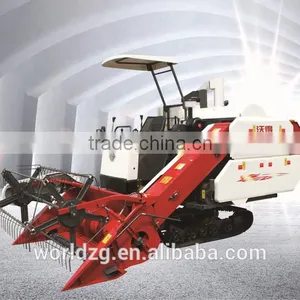

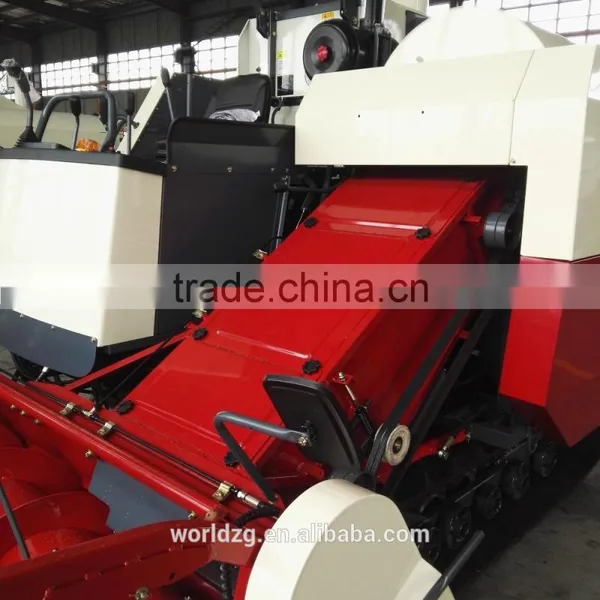

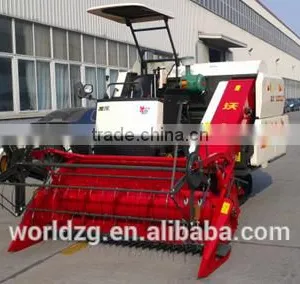

Pictures:
Features of the machine :

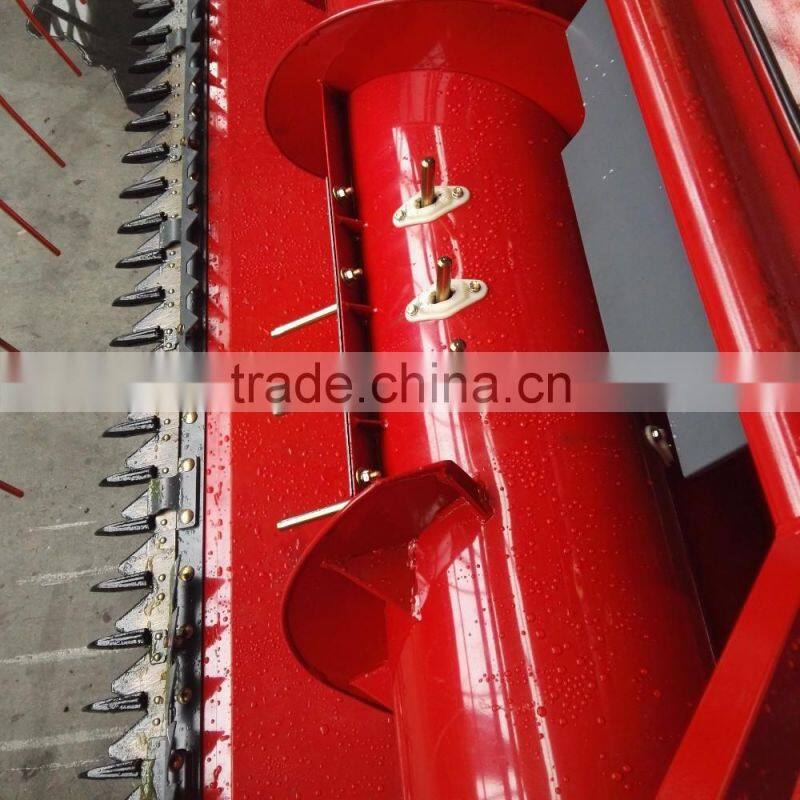

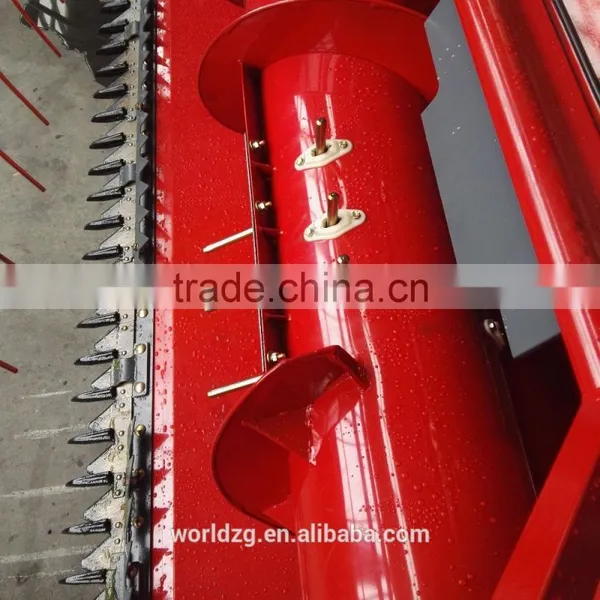

1,Strong feeding auger for effiency feeding crops from left and right tor the feeding mouth.

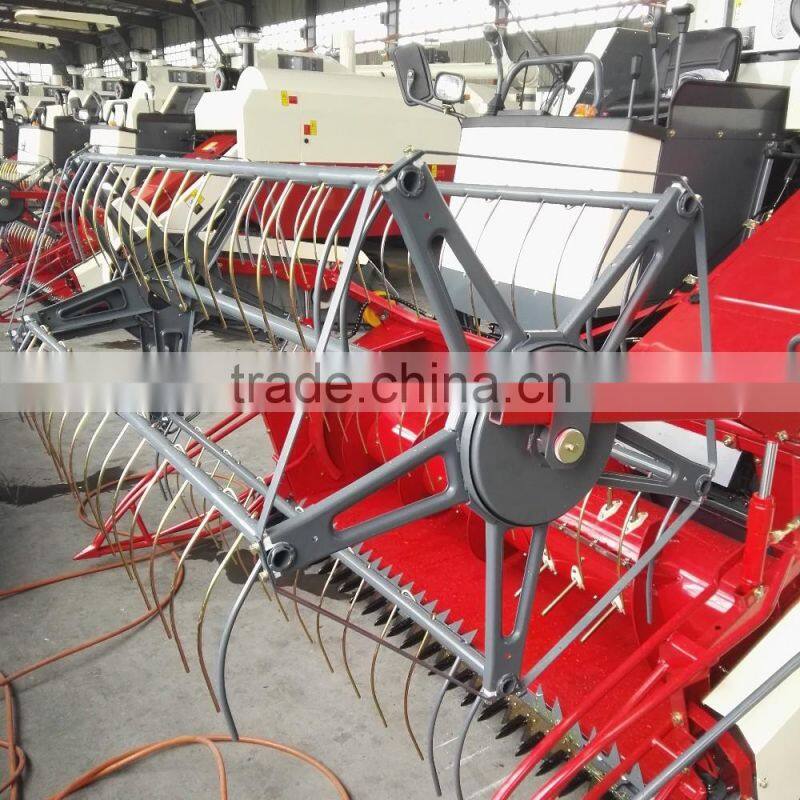

2.Longer and stronger spring teeth can pick up crops easy

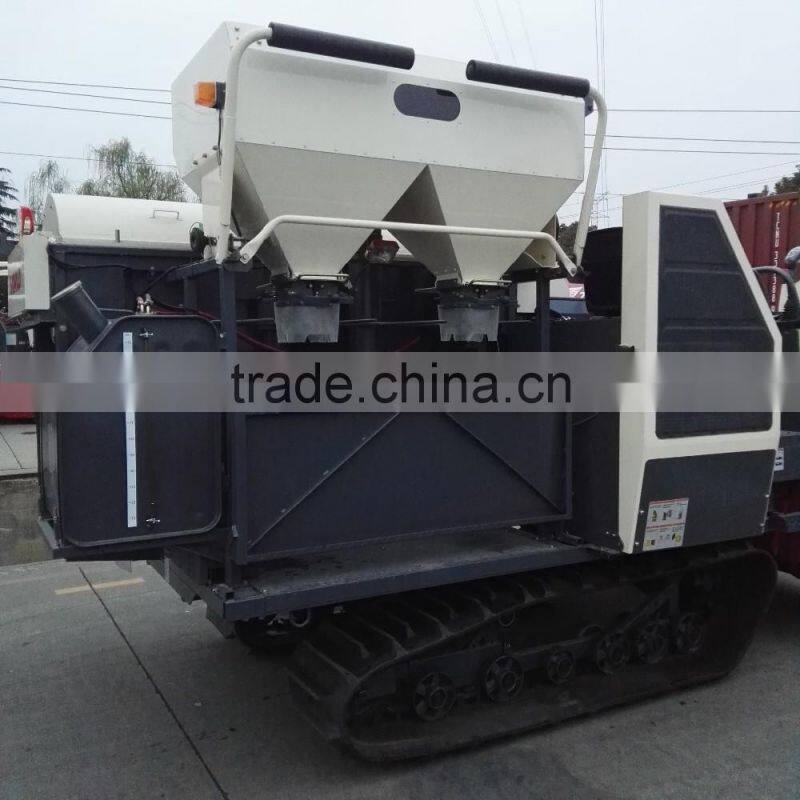

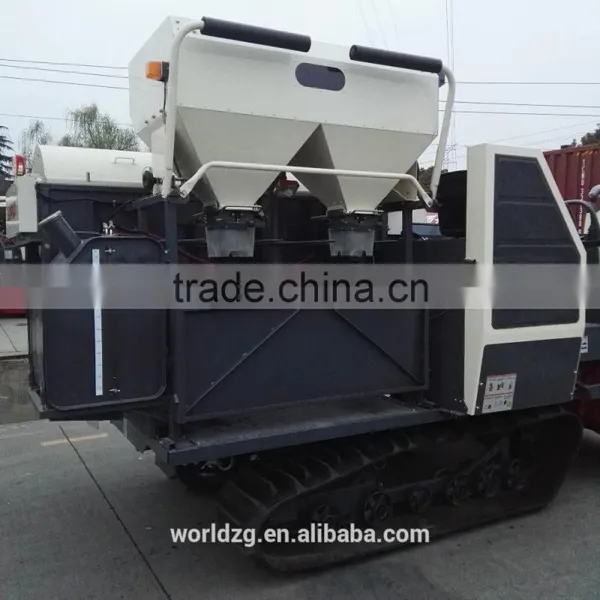

3,Manual discharging type can with two people to harvester wheat rice and so on
4, 78L fuel tank for long time to operate the machine

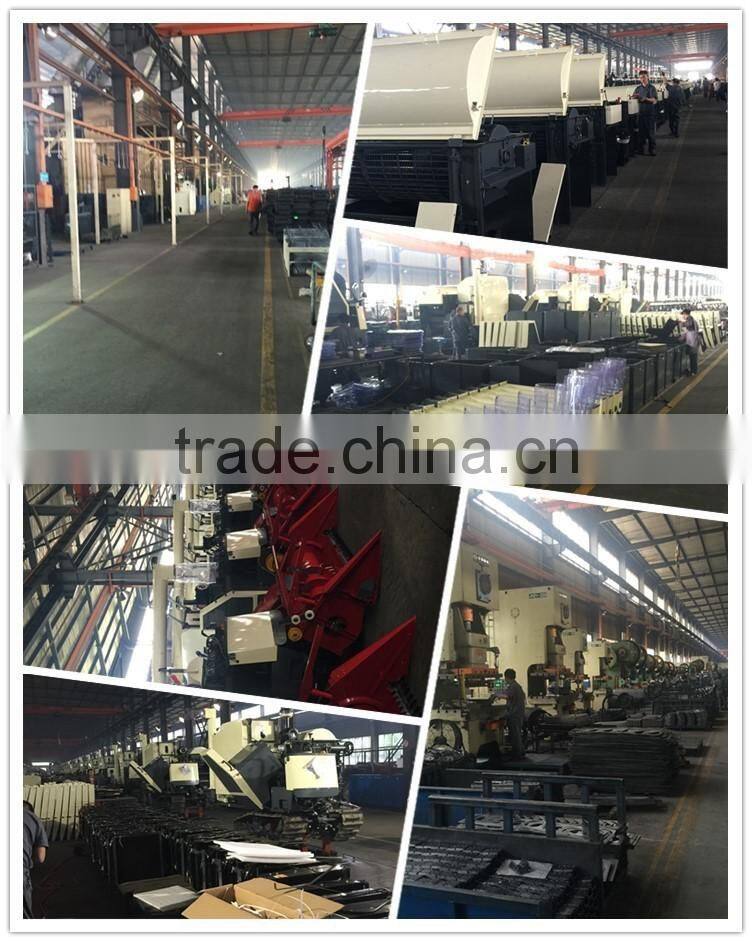

5,Customer visiting for the factory with high satisfactory.
Contact information :
Shanghai Yingxin World Machinery Co., Ltd
Lily Wang
Email:sale5 at
Mob/whatsapp/Imo:0086-15121038273
Tel/Fax:0086-21-62828320
Website:
For more information and big discount please contact directly via whatsapp:0086-15121038273 or sending email: sales5 at . Thanks for your inquiry !
