1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.

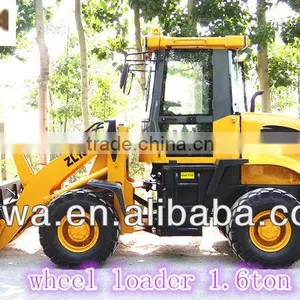

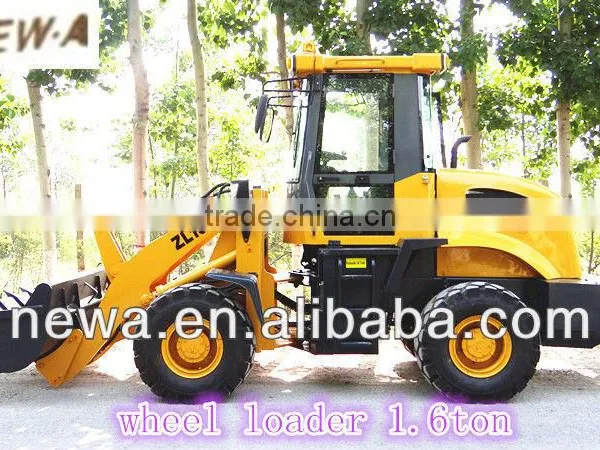

CE certificate 1.6ton ZL16 wheel loader
1.Engine:weichai4102
2.Power:47KW
3.Bucket Capacity:1.0m3
4.Rated Load:1600kg
Standard packing
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Overall Dimension | ||||
1 | Length(with bucket on ground) | 5500(mm) | ||
2 | Bucket width | 1910(mm) | ||
3 | Height(To the top of the cab) | 2700(mm) | ||
4 | Wheel base | 2150(mm) | ||
5 | Tread | 1500(mm) | ||
6 | Min. ground clearance | 342(mm) | ||
Main Technical Specification | ||||
1 | Rated load | 1600(Kg) | ||
2 | Operating weight | 4300KG | ||
3 | Rated bucket capacity | 1.0(CBM) | ||
4 | Max. breakout force | 45KN | ||
5 | Max. dump clearance | 2850 (mm) | ||
6 | Dump reach | 960(mm) | ||
7 | Dump angle at any position | ≤40 | ||
8 | Digging depth(with bucket bottom horizontal) | 146(mm) | ||
9 | 9 Max. turning radius |
| ||
| (1) Outside of bucket | 4850(mm) | ||
(2) Outside of rear wheel | 4675(mm) | |||
10 | Pivot angle frame | 38+ | ||
11 | Oscillating angle of rear axle + | ±11° | ||
12 | Lifting time of bucket | ≤5.9(sec.) | ||
13 | Lowering time of bucket | ≤2.8(sec.) | ||
14 | Dumping time | ≤2.0(sec.) | ||
15 | Traveling speed(Km/h) 2 forward and 2 reverse | |||
| (1) 1st gear forward | 10.00 | ||
| (2) 2nd gear forward | 24.00 | ||
| (3) 1st gear reverse | 10.00 | ||
| (3) 2nd gear reverse | 24 | ||
