Help CenterCE D25 With Imported Engine Mini Skid Steer Loader
Related Products
-
NEW 2.0Ton ZL20 CE Chinese Wheel LoaderUS$ 13,771 - 14,400MOQ: 1 Unit -
2016 Hot ZL16 1.6ton 63hp CE Mini Wheel LoaderUS$ 10,164 - 10,666MOQ: 1 Unit
-
2016 Hot Sale 2.8ton 928 Mini Wheel LoaderUS$ 14,400 - 14,500MOQ: 1 Unit
-
2016 Hot Sale ZL20 2.0ton CE Mini Front LoaderUS$ 13,000 - 14,000MOQ: 1 Unit
-
CE D25 Multi-functional Mini Wheel Shovel LoaderUS$ 13,279 - 13,935MOQ: 1 Unit
1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.

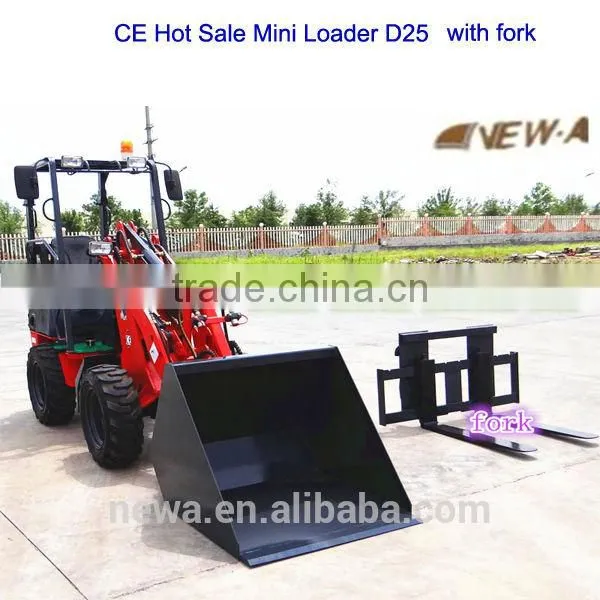

CE D25 with imported engine mini wheel loader
loader D25
1.Engine:PERKINS 403D-11
2.Power:18.5KW
3.Bucket Capacity:0.4m3
4.Rated Load:800kg
Standard packing
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.ZL60.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Engine |
|
Model |
PERKINS 403D-11 |
Rated power |
18.5kw(24.8BHP) |
Rated speed |
2800rpm |
Maximum torque |
67Nm |
The ratio of fuel consumption |
252g/kwhr |
Dimensions |
|
Body length |
3690mm |
Body width(reverse tyre) |
1050mm/970mm |
Body height |
2300mm |
Minimum ground clearance |
200mm |
Maximum dumping height |
2000mm |
Dumping reach |
600mm |
Wheel base |
1340mm |
Performance parameters of the machine | |
Bucket |
0.4m3 |
Tipping load in shovel,vehicle straight raight straight798kg |
798kg |
Tipping load in shovel,vehicle at 68° |
498kg |
Operating weight |
1470kg |
The sum of the work device |
8s |
Driving speed |
0-12km/h |
Minimum turning-circle radius |
|
Outside face of bucket |
1989mm |
Outside face of tyre |
1469mm |
Tyre specifications |
27*8.5-15TL |
Maximum turning angle |
±68° |
Remarks:
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery date: 25-30 days after we receive the deposit
3) Quotation valid date: within 30 days
4)The MOQ:One Set
