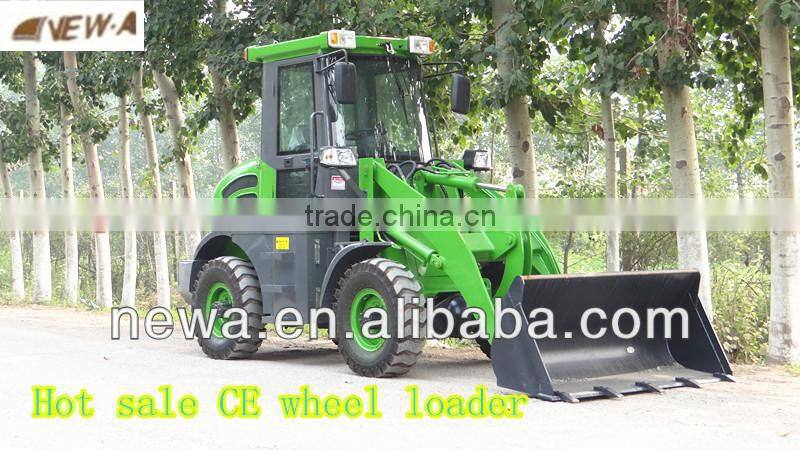

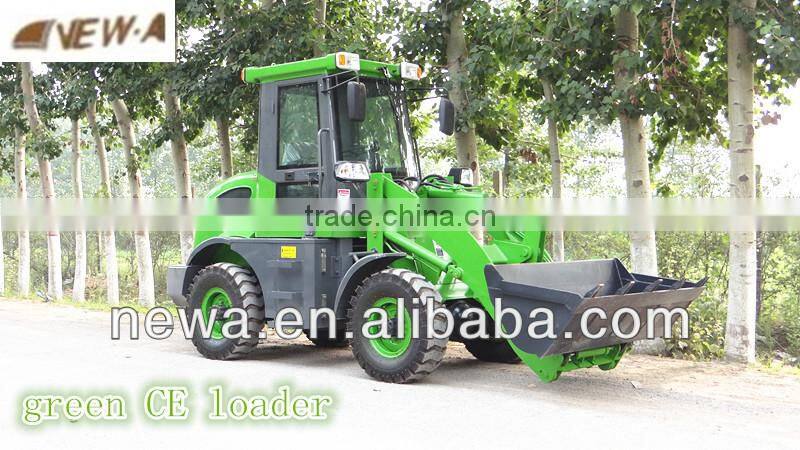

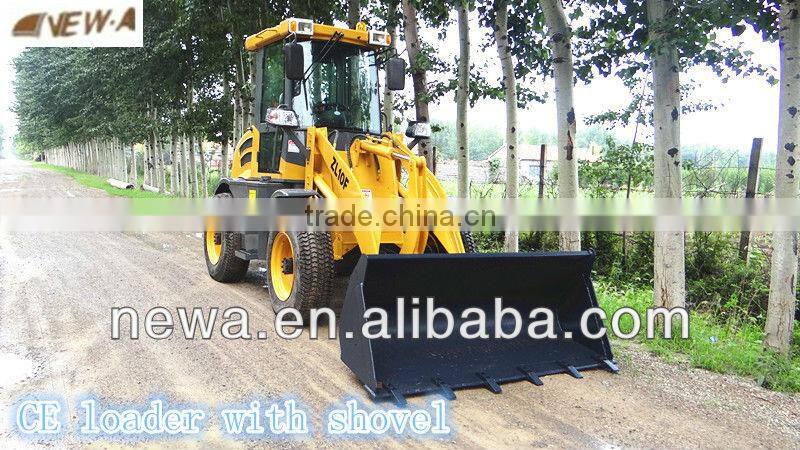

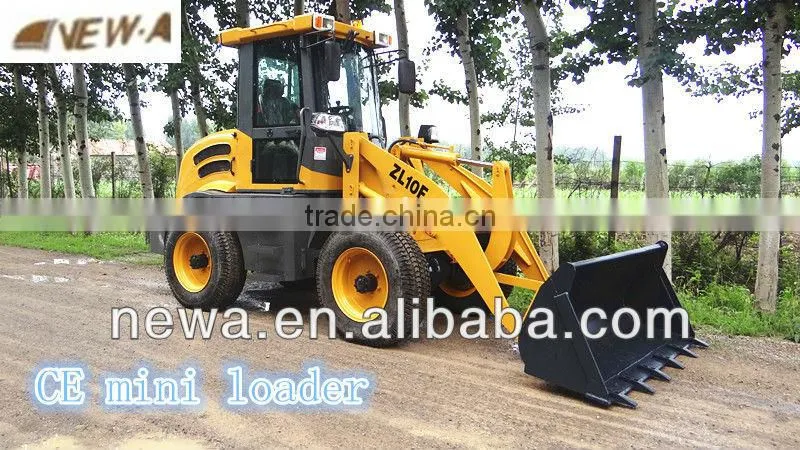

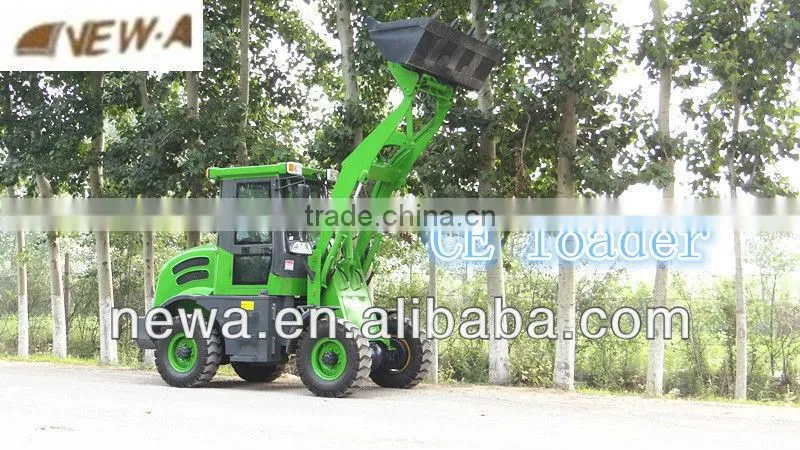

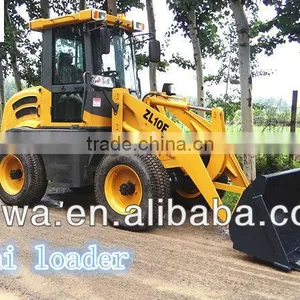

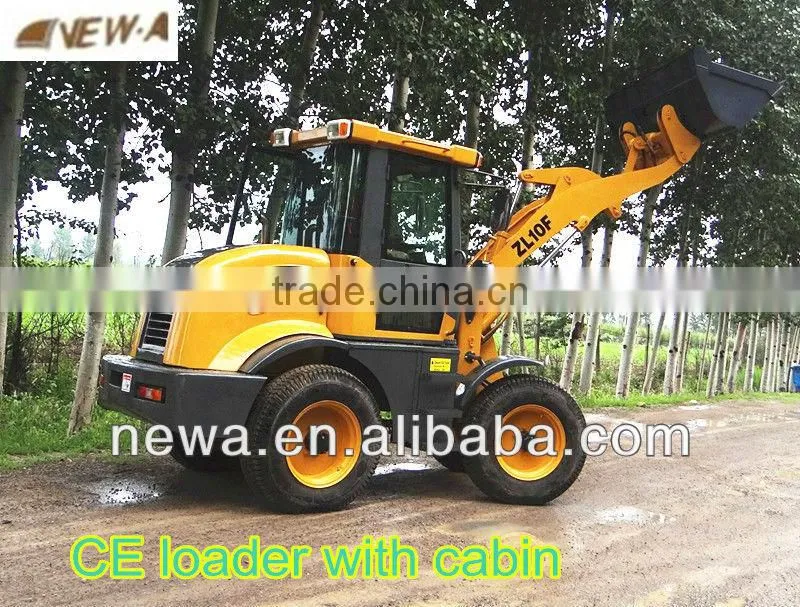

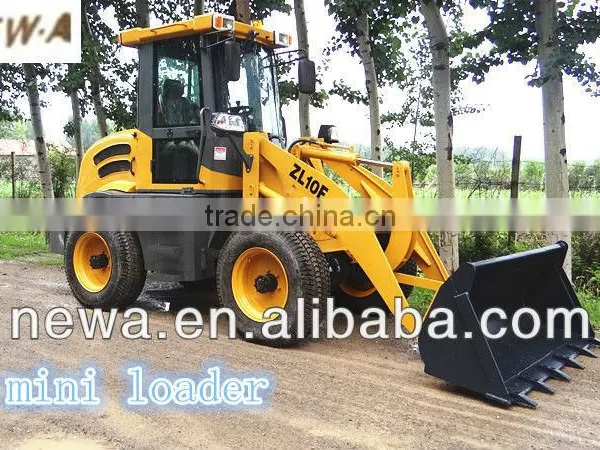

CE 1.0ton mini front wheel loader
loader 1.0ton ZL10
1.Engine:CHANGCHAI 490
2.Power:29KW
3.Bucket Capacity:0.5m3
4.Rated Load:1000kg
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
If you have demand please let me know, I will offer best price for you.
Overall Dimension | ||
1 |
Length(with bucket on ground) |
4800(mm) |
2. |
Width(to outside of wheels) |
1730(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
2530(mm) |
5 |
Wheel base |
2150(mm) |
6 |
Tread |
1320(mm) |
7 |
Min. ground clearance |
200(mm) |
Main Technical Specification | ||
1 |
Rated load |
1000(Kg) |
2 |
Operating weight |
2300KG |
3 |
Rated bucket capacity |
0.5(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
36kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
4500mm |
8 |
Driving system |
Gear box |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine | ||
1 |
Model |
Changchai 490 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
29(kW) |
4 |
Inter-bore of cylinder/stroke |
85 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
230(g/Kw.h) |
9 |
Net weight |
240(kg) |
Transmission System | ||
(a)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(b)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
1200-16 |
Brake system | ||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
