1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service

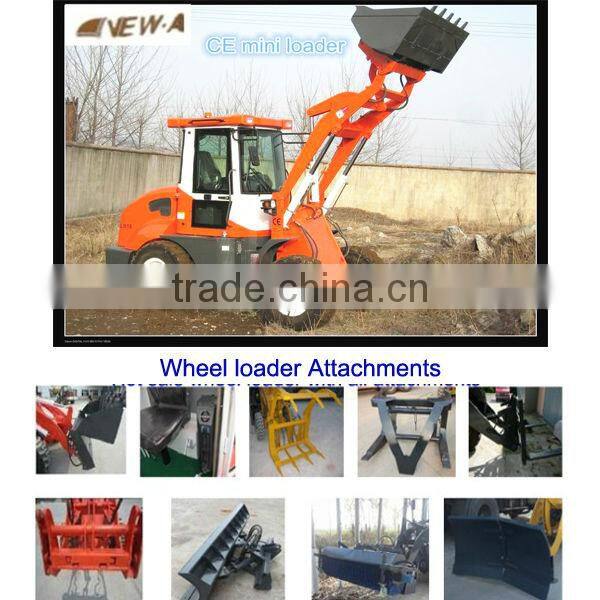

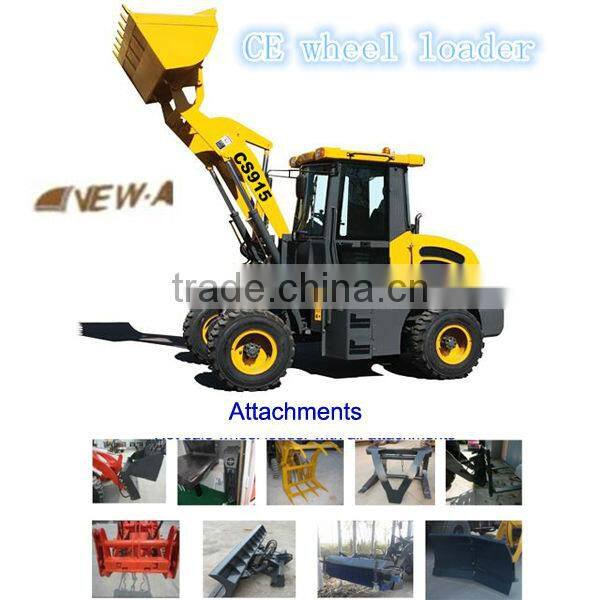

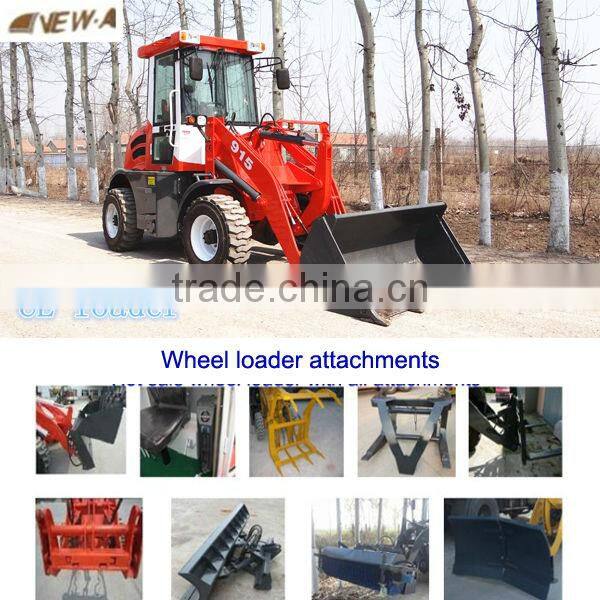

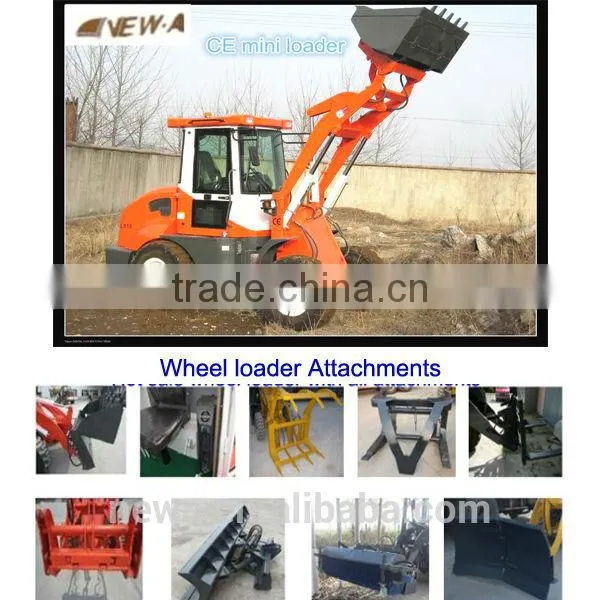

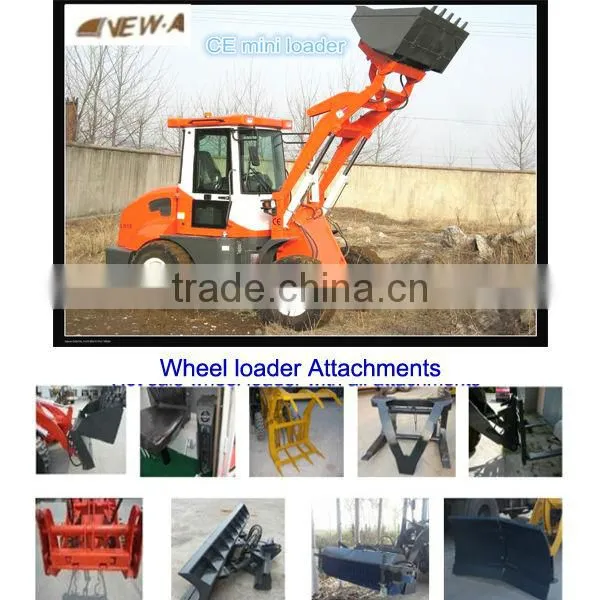

1.5ton CE mini wheel front loader
loader 1.5ton ZL15
1.Engine:CHANGCHAI 4L68
2.Power:37KW
3.Bucket Capacity:0.6m3
4.Rated Load:1500kg
Standard packing
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Overall Dimension | ||
1 | Length(with bucket on ground) | 4800(mm) |
2. | Width(to outside of wheels) | 1730(mm) |
3 | Bucket width | 1700(mm) |
4 | Height(To the top of the cab) | 2720(mm) |
5 | Wheel base | 2060(mm) |
6 | Tread | 1400(mm) |
7 | Min. ground clearance | 210(mm) |
Main Technical Specification | ||
1 | Rated load | 1500(Kg) |
2 | Operating weight | 3100KG |
3 | Rated bucket capacity | 0.60(CBM) |
4 | Bucket type | Heavy-duty bolt teeth |
5 | Max. breakout force | 36kN |
6 | Max. dump clearance | 2650(mm) |
7 | Min. turning radius | 4500mm |
8 | Driving system | Hydraulic converter |
9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
| (1) 1st gear forward | 5.75 |
| (2) 2nd gear forward | 23.86 |
| (3) 1st gear reverse 5.85 | 5.85 |
| (3) 2nd gear reverse | 24 |
Diesel engine | ||
1 | Model | Changchai 4L68 |
2 | Type | In-line arrangement. Water cooling |
3 | Rated output | 37 (kW) |
4 | Inter-bore of cylinder/stroke | 95 (mm) |
5 | Rated speed | 2300(r/min) |
6 | Max. Torque | 275(N.M) |
7 | Starting type | Electric |
8 | Min. fuel consumption | 230(g/Kw.h) |
9 | Net weight | 240(kg) |
Transmission System | ||
(A)Torque Converter | ||
1 | Model | YJ240 |
2 | Type | Fixed-spindle power shift |
3 | Cooling type | Pressure oil circulating |
(B)Transmission case | ||
1 | Model | New.A |
2 | Type | Power shift, spur gear constantly in mesh |
3 | Gear shift position | 2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Size of tire | 1100-16(12-16.5 for optional) |
Brake system | ||
1 | Service brake | 4 wheel hydraulic brake |
2 | Parking brake | Hand operated |
Steering System | ||
1 | Type | Middle articulated frame with hydraulic power steering |
