1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.

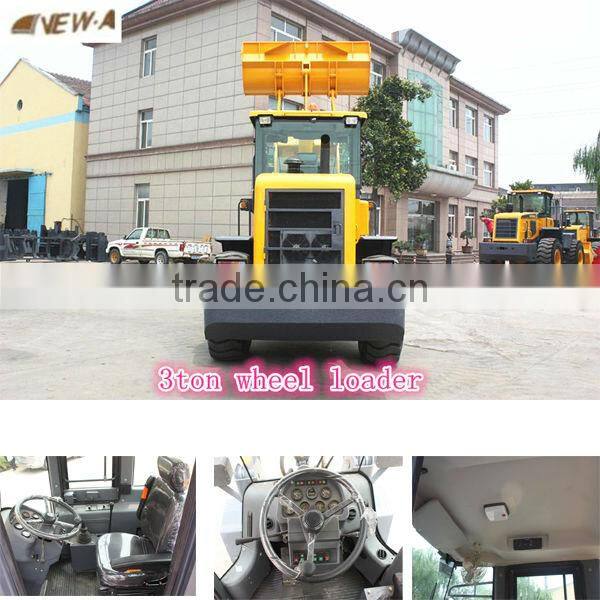

3Ton Hydraulic Driving wheel loader
loader 3.0ton ZL30
1.Engine: Cummins/Deutz
2.Power:92KW
3.Bucket Capacity:1.7m3
4.Rated Load:3000kg
Standard packing
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.

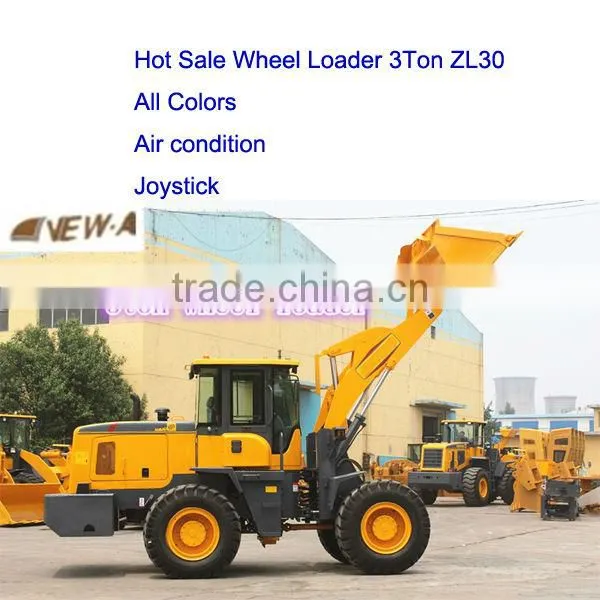

Specifications of ZL30
Specifications | ZL30 |
Rated bucket capacity | 1.7M3 |
Rated loading weight | 3000kg |
Operating weight | 9970kg |
Max.dump height | 3200mm |
Max.dump distance | 1100mm |
Min. base to the ground | 390mm |
Wheel base | 2750mm |
Track base | 1800mm |
Performance of bucket being set level | Yes |
Static tilting load at full steering position | 72KN |
Max.breakout force | 138KN |
Max.drawbar pull | 90KN |
Max.grade ability | 30 |
Total time of three(lifting,dumping,lowering) | 11s |
Overall dimensions(length×with×height)mm | 6680×2270×3190 |
Intake method | Turbocharged intercooled |
Cylinder number | 6 |
Max.torsion | 480Nm |
Engine | Engine (92KW) Cummins/Deutz |
Rated power | 92kw |
Min.futel consumption | 190g/kw·h |
Rated speed | 2200r/min |
Noise(dB) | 105 |
Transmission | Gearbox separated from torque converter |
Model of torque devicePattern | YJ320 |
Pattern | 3-element,single stage |
Pattern of gear boxes | Full-powershift,countershaft type |
Number of gear shift | 4 forward,2revers |
Max.travel speed | 45km/h |
Main reducer type | Arc taper gear, moderation of double grade |
Pattern of wheel side moderation | Single stage planetary |
Tire size | 17.5-25 |
Front tire pressure | 343kpa |
Rear tire pressure | 304kpa |
Steering System | Articulated and hydraulic steering |
Steering angle(each direction) | 37± 1 |
Min.turning radius(outside of bucket) | 5700mm |
Valve distributing working | DF25·2C |
Working pumps | CBGQ2100 |
Brake system | Air assisted oil disc type four wheel brake |
Service brake | Air cutting control inner expand hoof |
Fuel tank capacity | 108L |
Remarks:
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery date: 25-30 days after we receive the deposit
3) Quotation valid date: within 30 days
4)The MOQ:One Set
