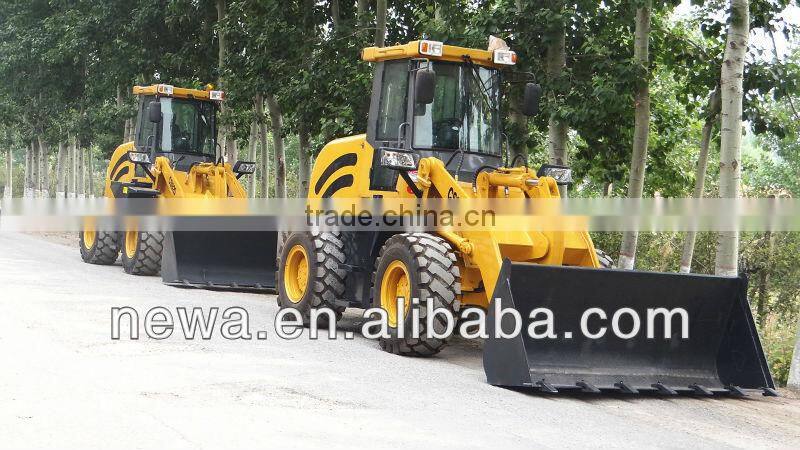

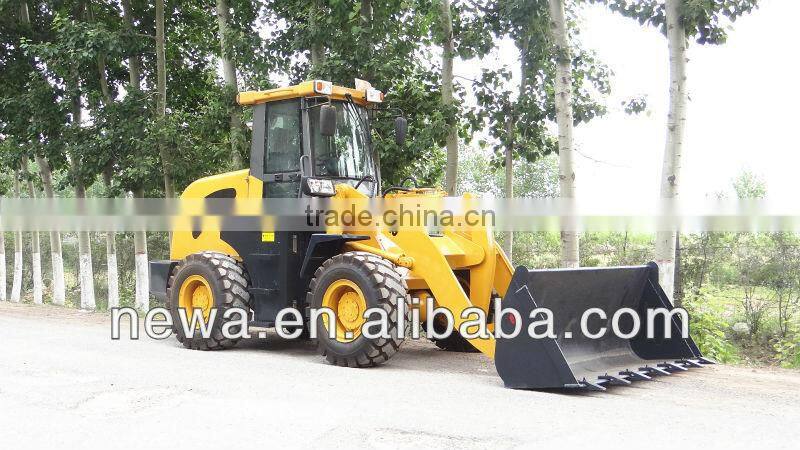

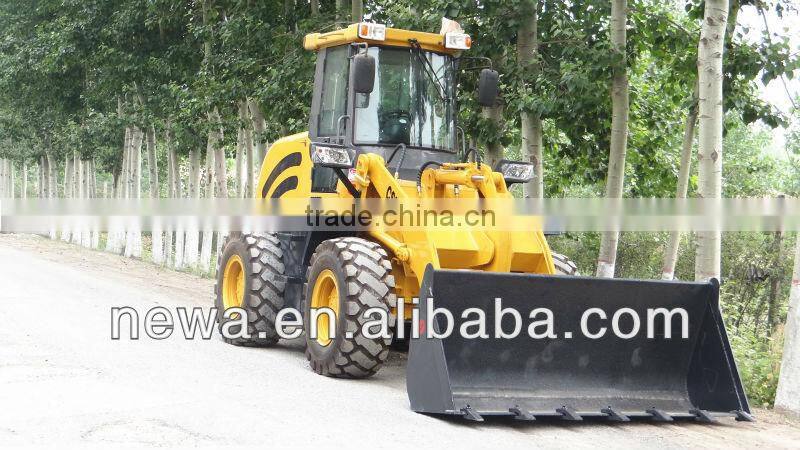

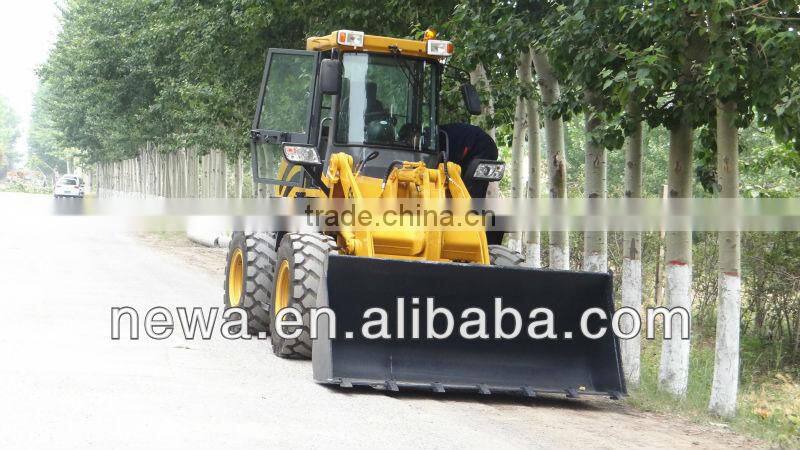

0.6ton-6.0ton mini front wheel loader

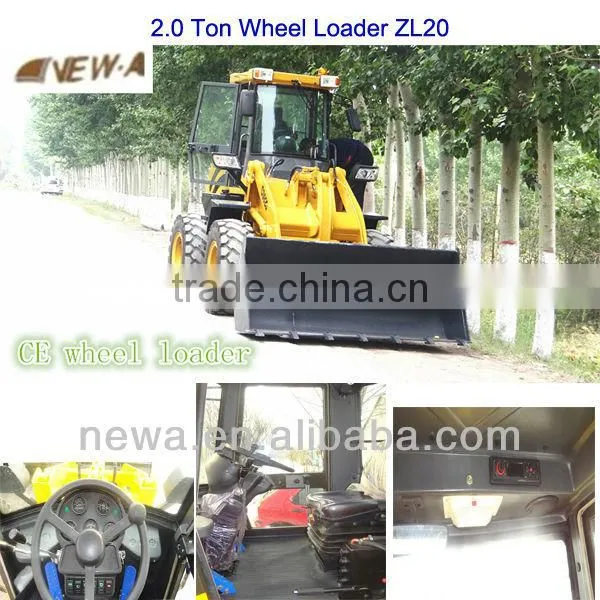

loader 2.0ton ZL120
1.Engine:weichai4108
2.Power:60KW
3.Bucket Capacity:1.2m3
4.Rated Load:2000kg
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
Overall Dimension | ||
1 | Length(with bucket on ground) | 5850(mm) |
2. | Width(to outside of wheels) | 2050(mm) |
3 | Height(To the top of the cab) | 2860(mm) |
4 | Wheel base | 2400(mm) |
5 | Tread | 1640(mm) |
6 | Min. ground clearance | 310(mm) |
Main Technical Specification | ||
1 | Rated load | 2000(Kg) |
2 | Operating weight | 5800KG |
3 | Rated bucket capacity | 1.2(CBM) |
4 | Bucket type | Heavy-duty bolt teeth |
5 | Max. breakout force | 51kN |
6 | Max. dump clearance | 2950(mm) |
7 | Min. turning radius | 5251mm |
8 | Driving system | Hydraulic converter |
9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
Diesel engine | ||
1 | Model | WeiChai 4108 |
2 | Type | In-line arrangement. Water cooling |
3 | Rated output | 60(kW) |
4 | Inter-bore of cylinder/stroke | 105×125mm |
5 | Rated speed | 2400(r/min) |
6 | Max. Torque | 275(N.M) |
7 | Starting type | Electric |
8 | Min. specific fuel consumption | 235(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 | Model | YJ280 |
2 | Type | Fixed-spindle power shift |
3 | Cooling type | Pressure oil circulating |
Transmission case | ||
1 | Model | NEW.A |
2 | Type | Power shift, spur gear constantly in mesh |
3 | Gear shift position | 2 Forward and 2 reverse gears |
Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Size of tire | 16.70-20 |
Brake system | ||
1 | Service brake | Air assisted oil on four wheel |
2 | Parking brake | Hand operated |
Steering System | ||
1 | Type | Middle articulated frame with hydraulic power steering |
Remarks:
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery date: 25-30 days after we receive the deposit
3) Quotation valid date: within 30 days
4)The MOQ:One Set
