1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.

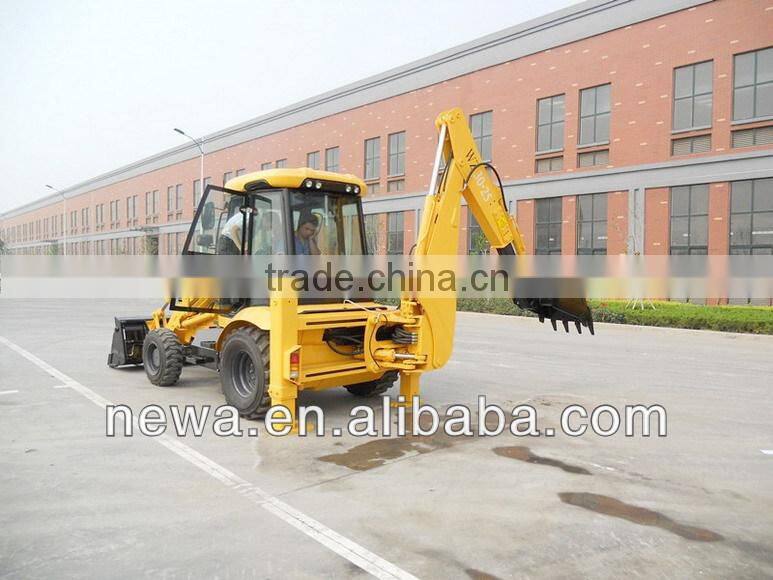

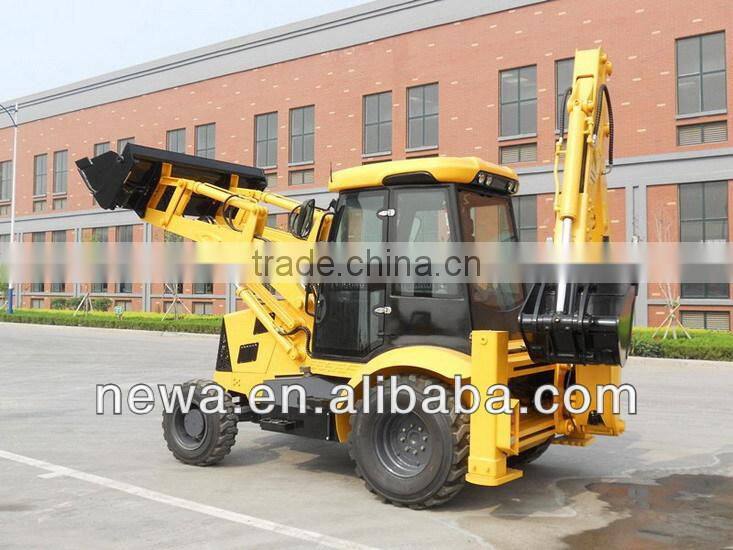

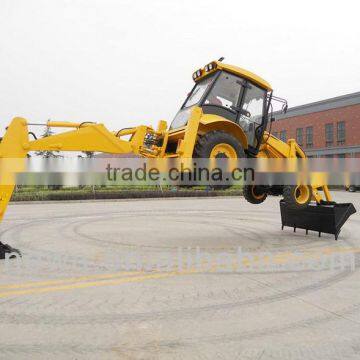

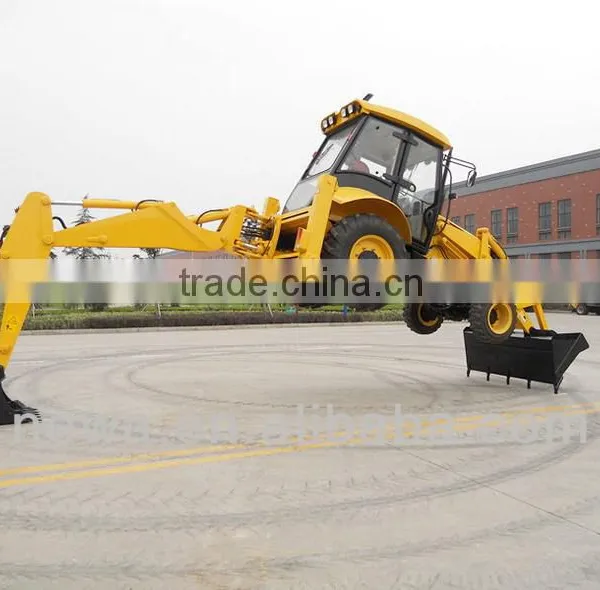

WZ30-25 7 ton 0.96 m3 backhoe loader with 4 combine in 1 bucket.
Performance Characteristics
Backhoe Loader
*Chinese name " both ends is busy " . the front is loaded device, back to digging.
* you only need to rotate the seat to change the role from loader to the excavator.
*Applications: Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting ,
power and airport projects, municipal construction, water conservancy construction, rural housing construction.etc
Cab
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the
big window structure is conducive to broadening their horizons and ventilation.
indoor with a strong air-conditioning system, during hot and cold environment, comfortable working, multi-band car radio, mp3 players, car stereo allows you to work
more enjoyable.
Easy to operate the hydraulic tank, fuel tank, they are also independently replaceable, and are in low places, which will help bringing down the machine center of gravity, improving stability and suitably for standing on the ground for
oil filling and maintenance, at the same time, they also are part of the boarding ladder.
legs, independent control of left and right legs can make the machine on slopes or rough terrain easily get on the horizontal
position.
Working device:
Load-side adopts a unique eight-bar linkage that automatically keep the bucket level when the loading arm lift bucket to keep
the original angle, to ensure that the material will not be spilled. According to need, you can also add some attachments,
such as a multi-bucket, fork, log grappler and so on.
Travel System:
Travel System adopts hydrostatic drive. Using German technology shift driven front axle.
Hydraulic System:
Main pump adopts Germany Rexroth pump technology, Chinese wellknown enterprises produce the pump. All excavators
adopts open hydraulic system, with good micro performance, and make the operation much stabler, easier, more responsive,
more accurate tap control, to maximize power and improve fuel efficiency.
Power system
The engine adopts the YTO Group Corporation and RICARDO designed classic model - LR4105ZG96, maximum output
power is 65KW
According to the needs of users, Cummins engine is optional, B3.3T-C80, power is 60 kw. You may also choose Yanma,
Perkins engine and so on.
MODEL |
WZ30-25 |
|
Weight |
|
|
Weight |
kg |
7270 |
Bucket |
|
|
Bucket Width |
mm |
700 |
Bucket Capacity |
m³ |
0.25/0.96 |
Engine |
|
|
Model |
|
YTO4108 supercharged |
Power/ Speed |
Kw/rpm |
63/2200 |
Overall Dimensions |
|
|
Length |
mm |
5600 |
Width |
mm |
2100 |
Height |
mm |
3600 |
Ground Clearance |
mm |
250 |
Performance Parameters |
|
|
Travel Speed |
Km/h |
35 |
Grade ability |
% |
51 |
Max. Track Force |
kn |
47 |
Operation Range |
|
|
Max. Digging Height |
mm |
5400 |
Max. Digging Depth |
mm |
600 |
Max. Dumping Height |
mm |
2600 |
Max. Digging Radius |
mm |
5000 |
Hydraulic System |
|
|
Rated Pressure |
mpa |
21 |
