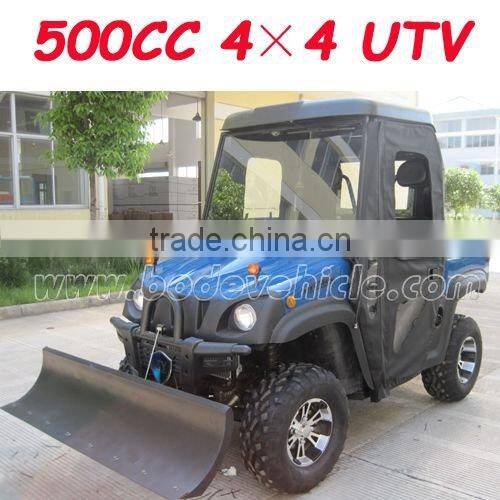

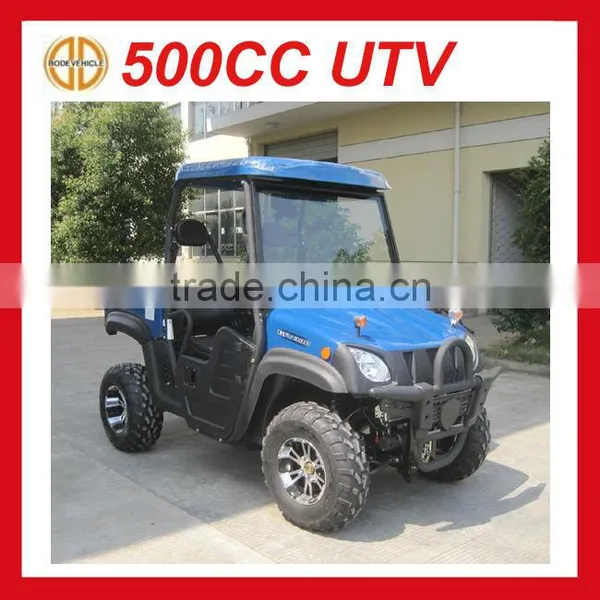

EPA /EEC 500cc UTV(MC-161)

Model Number: MC-161

UTV-500 4x4 Features:

Packaging & Delivery
Packaging Detail 7LAYERS SHIPPING CARTON, WITH STRONG IRON FRAME ALL COMPLETE FINISHED PRODUCTION WHEN PACKING,WE DISASSEMBLE THE WHEELS,
Delivery Detail PRODUCTION TIME 20-25DAYS SINCE ADVANCE PAYMENT

.

With a liquid-cooled, 4-stroke engine.  The  4-stroke engine presents excellent power over a standard 250/300 class vehicle in a light weight, full-sized ATV while the liquid cooling provides excellent wear characteristics and thusly, longevity.  The UTV-300 has a 2-speed CVT automatic transmission with Hi / Lo / Neutral / Reverse as well as shaft drive at the front and rear wheels.  All of these features plus the Linhai name in quality means that with regular maintenance, this UTV will go for many years without the likelihood of needing major service.  If you take care of it, it should last for a very long time.

The gauges and controls are large and easy to read and use.  The roll cage is built stylish but tough (take a look) for heavy duty utility use but with the 2-Speed transmission and 2WD / 4WD, you can also get into sport mode and race around in the woods, mud or sand... and when it's time to 'get back to work' on the farm or ranch.

Description

(1) Product dimensions: 2,690 x 1,280 x 1,960mm
(2) Minimum turing radius:4650mm
(3) Transmission:CVTand R/N/L/H
(4) Brake Type:F:Dual disc brake R:Single disc brake
(5) Minimum ground clearance:210mm
 Engine specifications:
(6) Type:Liquid-cooled four-stroke,SOHC
(7) Bore x stroke:87.5 x 82mm(3.44x3.23in)
(8) Displacement: 493cm3
(9) Compression ration: 10.2:1
(10) Starting mode: Electric and recoil starter
(11) cylinder  arragement:Forward-inclined single cylinder
(12) Oil Capacity:2.2L
(13) Carburetion:MIKUNI BSR36-89
 Capacities:
(14) Fuel tank: 22.0L
(15) Battery: 12V
(16) Maximum speed: 70kph
(17) Maximum loading capacity: 300kg
(18) Net weight: 590kg
(19)20ft: 7pcs    40HQ: 18pcs
Atv,Quad  go kart and Buggy.UTV HS code:8703101100
