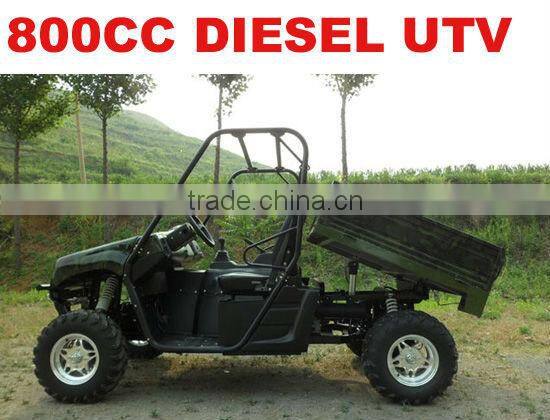

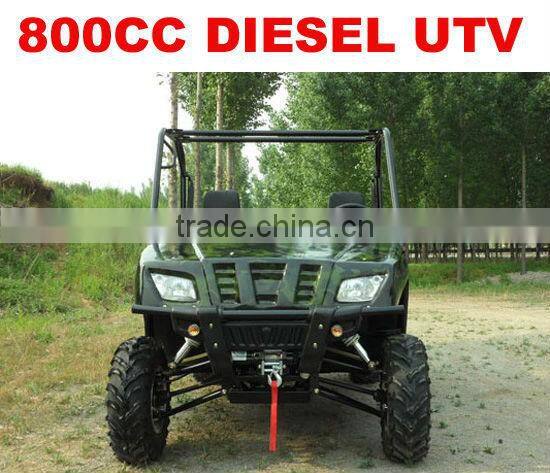

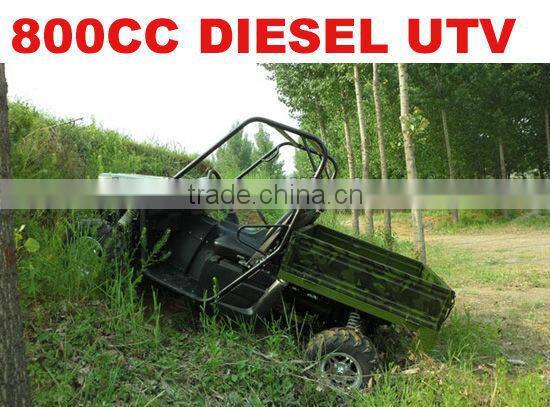

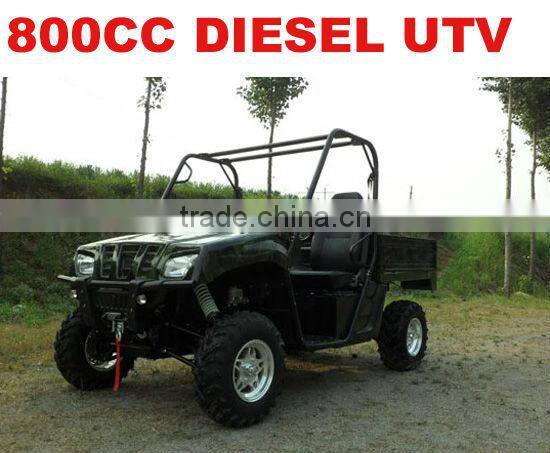

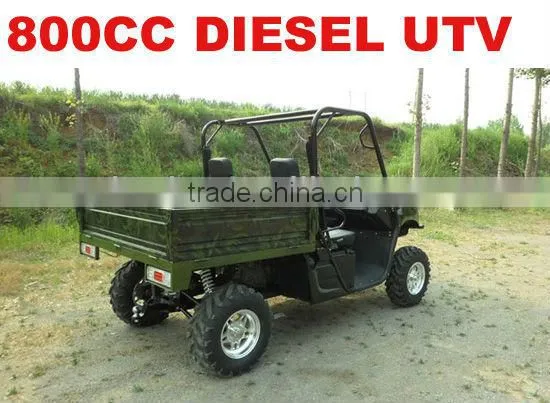

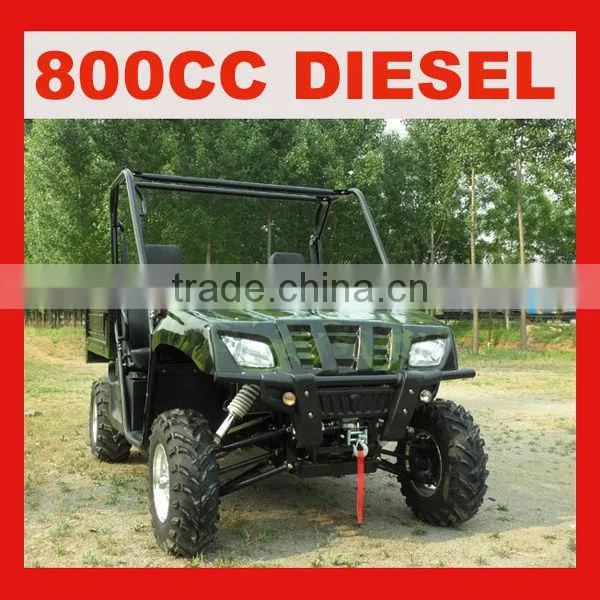

NEW 800CC DIESEL UTV JEEP(MC-180)
Driving mode 4x2 / 4x4
Vehicle dimension(LxWxH) 3050x1510x1860mm (120.0x59.4x73.2in)
Cargo bed dimensions(LxWxH) 1500x1200x350mm (59.0x47.2x13.8in)
Wheel base 2200mm(86.6in)
F/R tread 1305/1282mm(51.4/50.5in)
Min. ground clearance 300mm(11.8in)
Curb weight 540kgs(1190.5lbs)
Gross weight 890kgs(1962.1lbs)
Load carrying capacity 350kgs(771.6lbs)
Passengers (Persons) 2
Engine type 2V80
suspension independent double wishbone
Fuel tank capacity 35L(9.2gal)
Max speed ≤80km/h( 50mph)
Max gradient ≥37°
Engine
Type name 2v80
Mode V twin,4 stroke,2 cylinder, Diesel
Diameter and stroke Φ80×79mm(3.1x3.1in)
Displacement 0.794L
Fuel system swirl combustion chamber
Fuel type :0#
Rated power/rev 12kw/3000rpm (16.5hp) 14kw/3600rmp (19hp)
Start type motor starter
Cooling type Water cooled forcibly closed cycle
Lubricating system Hybrid ( pressure + splash)
Starter motor capacity 12V,1.4kw
AC generator capacity 12V,20A
Oil capacity 2.3L(0.6gal)
Cooling water capacity engine 2.6L (0.7gal) auxiliary tank 0.3L (0.08gal)
Engine dimension(LxWxH) 616x486x528mm( 24.3x19.1x20.8in)
Net weight 57.5kgs(126.8lbs)
Idle rev 950±50rph
Tire
Front/rear tire size 25x8-12/25x10-12
Brake
Front/rear brake type disc/dics
Optional accessories 1)winch 2)green camo or leaf camo 3)snow plow4)half door 5) Platic canopy 6) Window 7) Tail ball 8) Electric dump box
Load information 4 units/20 HQ; 8 units/40HQ
