Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 2inch Gasoline Self-priming Water Pump QG65-20-40

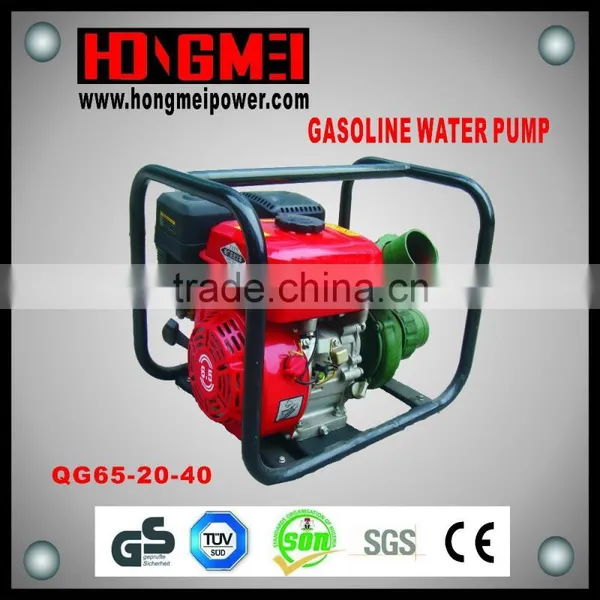

2inch Gasoline Self-priming Water Pump QG65-20-40

2inch Gasoline Self-priming Water Pump QG65-20-40 thumbnail-1
2inch Gasoline Self-priming Water Pump QG65-20-40 photo-1
Negotiable MOQ: 30 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
HONGMEI
Model Number:
QG65-20-40
Contact Supplier Request Quote Chat Now
Chongqing Hongmei Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name HONGMEI
Model Number QG65-20-40
Theory Other, self-priming pump
Structure Other, self-priming pump
Usage Water
Power Other, gasoline power
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Other, pump clear water



  2inch gasoline submersible water pump QG65-20-40



Model                                    QG65-20-40
engine parameter
Engine model 168FB
Engine type OHV25 °TILT,single cylinder,Forced air cooling,4-stroke
EnginePower kW/RPM 3.5/3600
Bore/Stroke 68*54mm
Compression ratio 8.5:1
Displacement 196ml
Fuel consumption

≤395g/kw.h

Ignition system induction ignition
Starting systemrecoil start
Fuel tank capacity 3.6L
Oil capacity 0.6L
Water pump parameter:
Intel Dia65mm(2.5inch)
Output  Dia 50mm(2inch)
Lift head 60m
Max.suction head 7m
Max.flow rate 50m³  /h
N.w 24KG
G.W 26KG
M.T520*395*420



2inch gasoline self-priming water pump QG65-20-402inch gasoline self-priming water pump QG65-20-402inch gasoline self-priming water pump QG65-20-402inch gasoline self-priming water pump QG65-20-40

2inch gasoline self-priming water pump QG65-20-40
