13HP HM188F/D Gasoline Engine /Electric Start

13HP HM188F/D Gasoline Engine /Electric Start thumbnail-1
13HP HM188F/D Gasoline Engine /Electric Start thumbnail-2
13HP HM188F/D Gasoline Engine /Electric Start photo-1

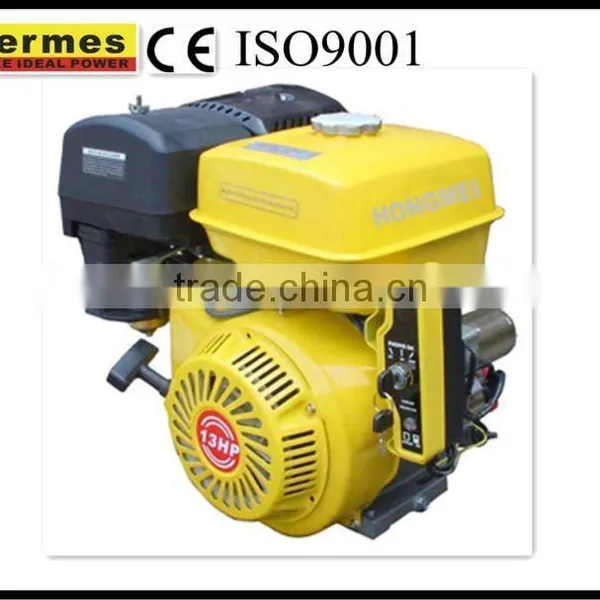

13HP HM188F/D Gasoline Engine /Electric Start photo-2
US$ 120 - 180 MOQ: 30 Units
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, GENERAL
Fuel:
Gasoline
Contact Supplier Request Quote Chat Now
Chongqing Hongmei Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing hina
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, GENERAL
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, ELECTRIC START
Place of Origin Chongqing, China
Brand Name hongmei
Model Number 188FD
Dimension(L*W*H) Standard
Weight 15KGS
Certification ISO9001 CE
Warranty 1year
After-sales Service Provided No overseas service provided

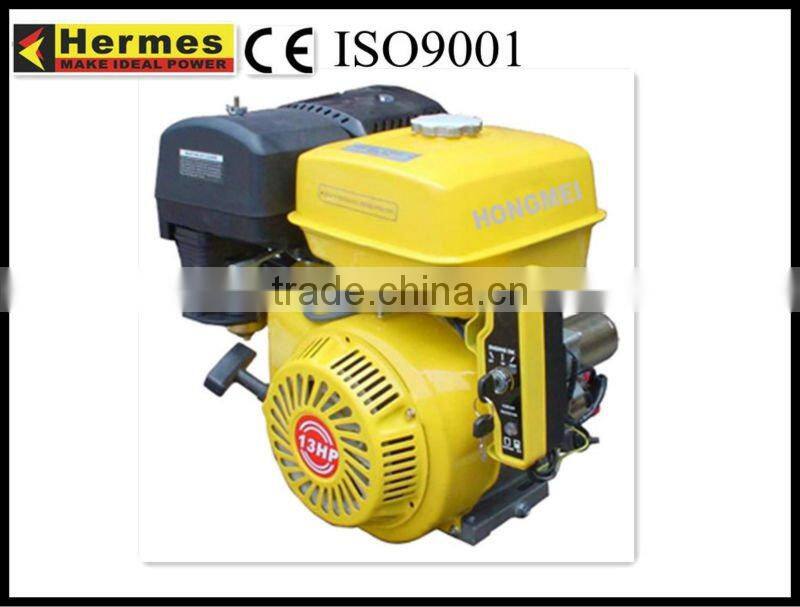

  13HP 4 stroke Gasoline engine



Introduction

 Powered by air-cooled 4-stroke gasoline engine
 Aluminum alloy high pressure easing
 High quality and mechanical sealed equipment
 Compact structure ,light weight,easy operation
 Easy maintenance.



13HP gasoline engine
Model 188FD
Engine Type OHV25° Tilt,single cylinder,air cooling,4-stroke
Engine Torque 26.5N/2500RPM
Engine power 7.5KW/3600RPM
BORE×STROKE 88×64MM
COMPRESSION  RATIO 8.0:1
Displacement 389ML
Fuel consumption ≤374g/kw.h
Lubrication Type Splashing
Ignition System Induction Ignition
Starting System recoil start/electric start
Fuel Tank Capacity 6.5L
Oil Capacity 1.1L
N.W 34KG
G.W 35KG
Dimension 490*450*535mm

13HP HM188F/D Gasoline Engine /Electric Start

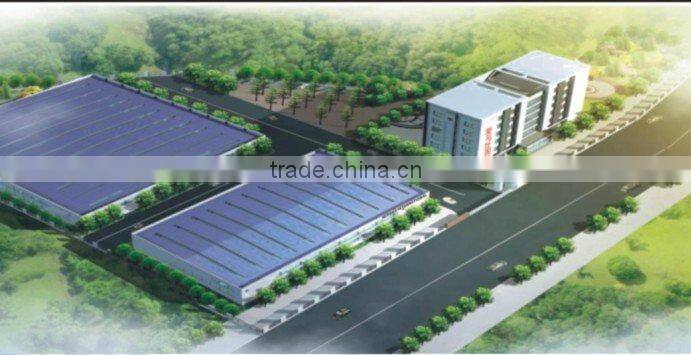

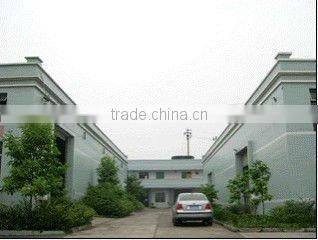

                                                                               1.Our Factory View







  13HP HM188F/D Gasoline Engine /Electric Start 13HP HM188F/D Gasoline Engine /Electric Start

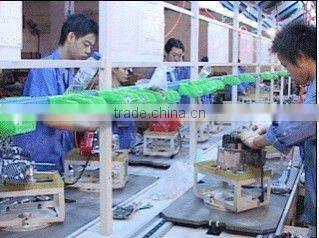

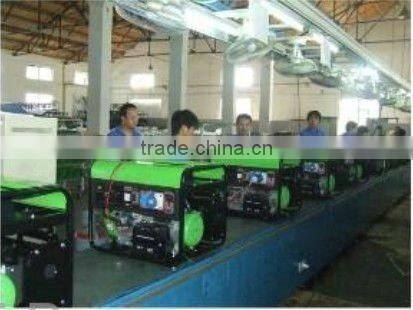

                                                                             2.Our Production Line



13HP HM188F/D Gasoline Engine /Electric Start  13HP HM188F/D Gasoline Engine /Electric Start

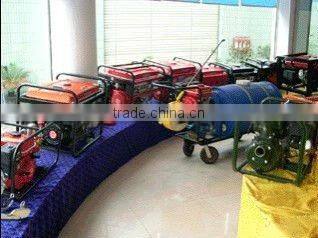

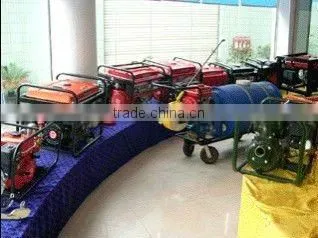

                                                                                         3.Our Show Room and Meeting



13HP HM188F/D Gasoline Engine /Electric Start13HP HM188F/D Gasoline Engine /Electric Start

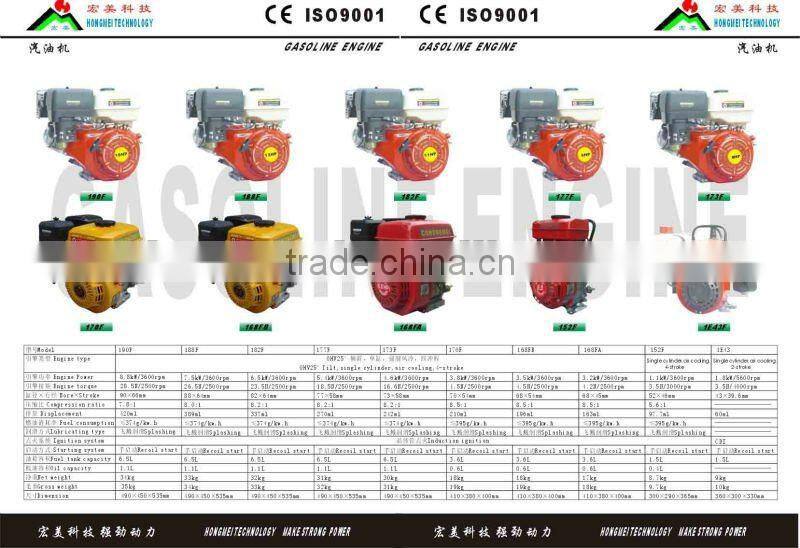

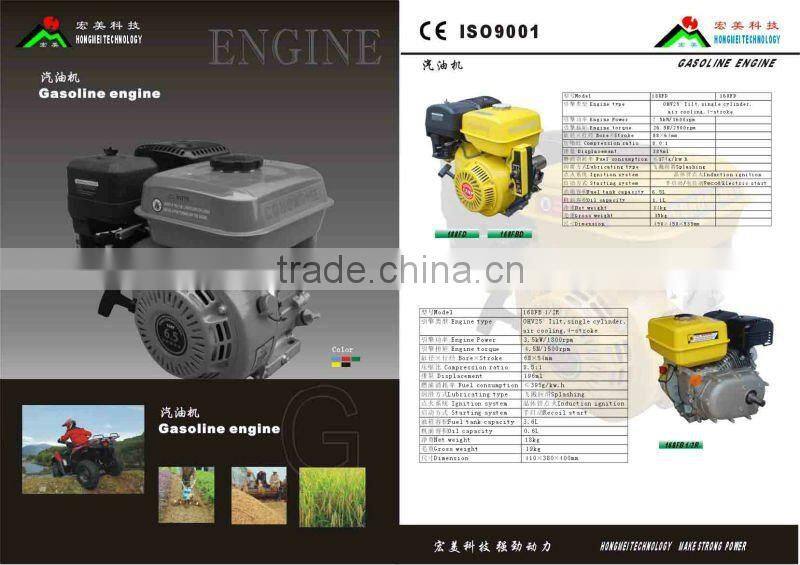

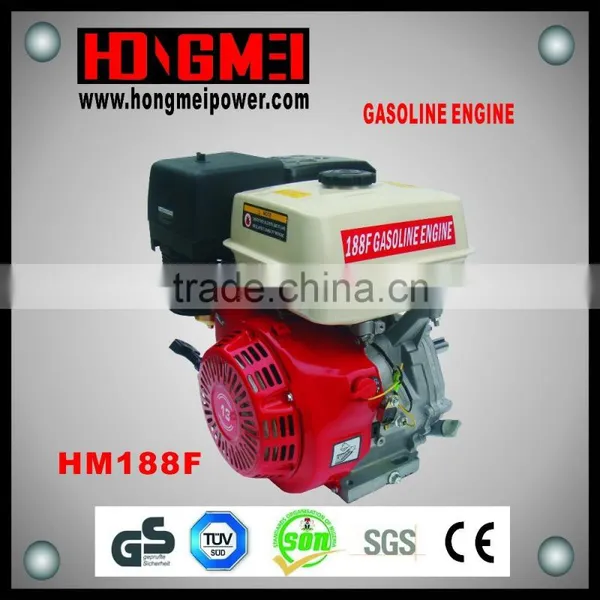

                                                                               4.Our Engine



13HP HM188F/D Gasoline Engine /Electric Start13HP HM188F/D Gasoline Engine /Electric Start

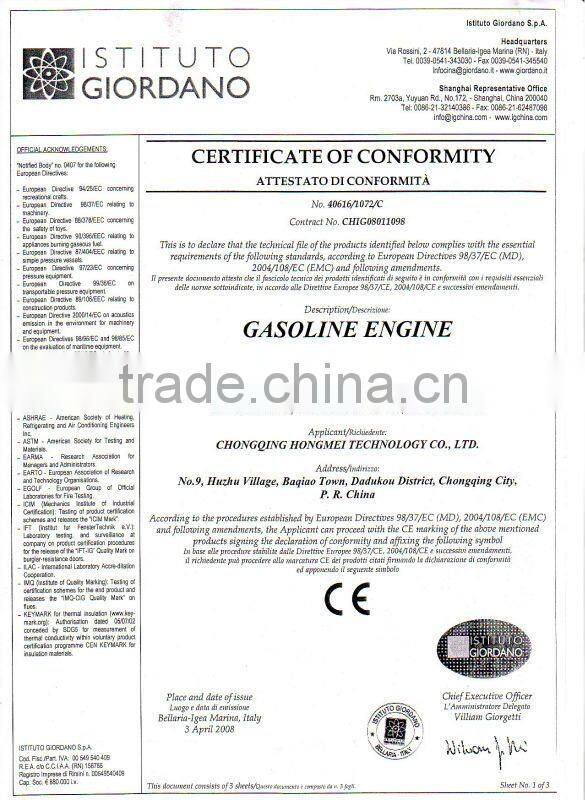

                                                                               5.CE certificate

                                                13HP HM188F/D Gasoline Engine /Electric Start

13HP HM188F/D Gasoline Engine /Electric Start
