Specifications
1.CE certificate2.One year warranty
3.Spare part services
4.High dependable
5.High effencicy
Heavy-duty static three wheel road rollers with large weight
1----Principal Features
1.Steady quality,serial products coverwide applications.
2.Electric power sprinkler device.
3.Low gravity center,good stability.

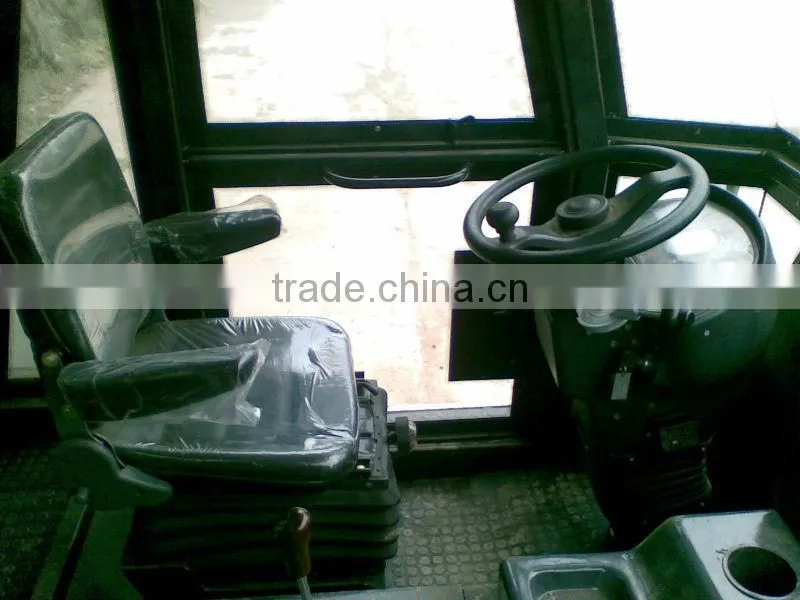

4.Spacious and comfortable cab,with broad visual view.
5.Central articulated hydraulic steering for flexible turning and concenient operation.
2----Configuration of road roller
Model : QLNJ1821
Engine : YC6108G
1.Static grinding,articulated short the body structure,cab mid-engine,working in a great view;
2.Hydraulic steering,low gravity toward the steering wheel deft and flexible;
3.Bridge type driving,hydraulic booster embedded disk brake,brake good,the two sets of brake system, safe and reliable;
4.Cab adopt glass that against ultraviolet ray;
5.Equipped with large capacity and dynamic sprinkler system
3----Technical Parameters of road roller
| MODEL | QLNJ1821 | ||||
| Operating mass | Overall length | mm | 5700 | ||
| Without ballast | kg | 18000 | Overall width | mm | 2300 |
| With ballast | 21000 | Overall height | mm | 3000 | |
| Front linear load | Front wheel size | mm | |||
| Without ballast | N/cm | 510 | Width | 1680 | |
| With ballast | 565 | Diameter | 1450 | ||
| Rear linear load | 1056 | Rear wheel size | mm | ||
| Without ballast | N/cm | 1226 | Width | 530 | |
| With ballast | Diameter | 1650 | |||
| Travel speed | Wheelbase | mm | 2945 | ||
| 1st gear | Km/h | 2.0 | Ground clearance | mm | 370 |
| 2nd gear | 4.0 | Diesel model | YC6B120 | ||
| 3rd gear | 9.6 | Diesel power | Kw | 85 | |
| Grade ability | % | 30 | Diesel speed | r/min | 2000 |
| Turning radius | mm | Fuel tank capacity | L | 200 | |
| Inside | 5180 | Elecrical voltage | V | 24 | |
| Outside | 7500 | Hydraulic tank capacity | L | 40 | |
| Steering angle | ±35 |
4----Application of road roller
LTJ2125 The machines are heavy-duty static three wheel road rollers.With their dead weight, they compact cohesive and non-cohesive materials, such as gravel, sand stone mixture, sandy soil, and asphalt concrete.They are universal compaction equipments for highway, municipal road, parking area and industry ground etc, medium and large-scale construction projects.

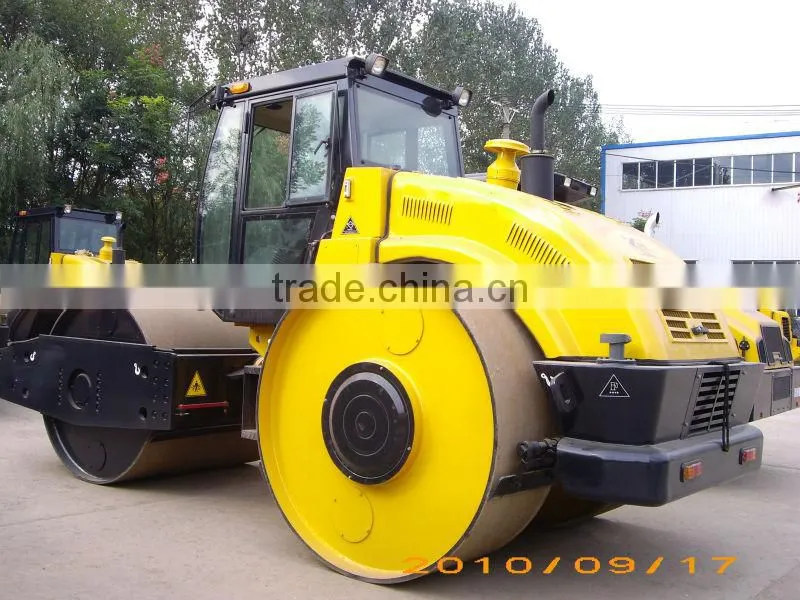

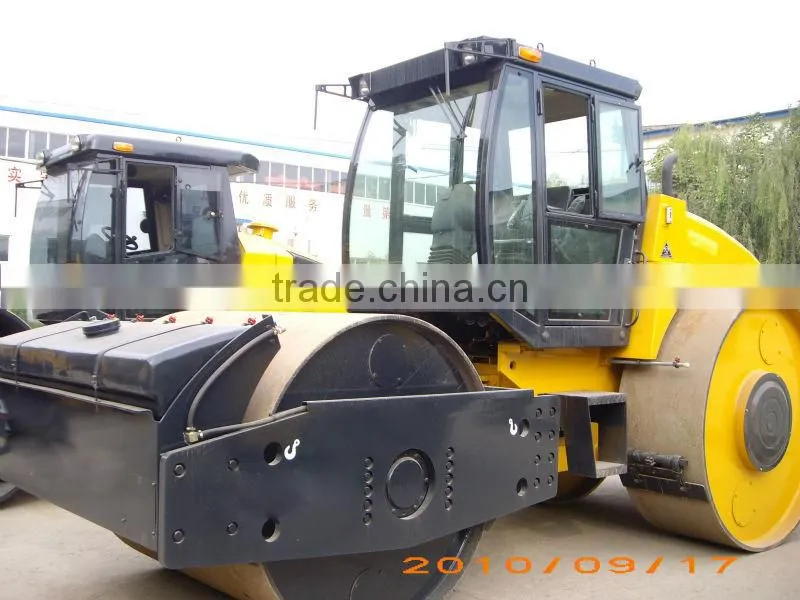

5----Pictures of road roller
More details
our certificates
NOTE:
We offer low price products with highest performance cost ratio.
If you are interested in our road roller, please feel free to contact us.
Electronic catalog will be sent to you upon receipt of your inquiries.
