Mini walking road roller, vibratory road roller,walking behaind road roller

Specifications

1.With nice shape and compact struture
2.Full-wheel drive
3.Strong climbing ability
4.Hydraulic travel, adopt imported motor

Mini walking road roller, vibratory road roller,walking behaind road roller



1. Standard configuration of QLNC08H



1.Mechnical and full-wheel drive ,full-wheel vibration.

2.Engine: CF186F(changchai) Vertical DI air-cooled diesel engine.

3.Electric and manual starting devices system.



2. Main Features of QLNC08H

1.The whole machine has a nice shape,compact structure and small size;it can do rolling work in narrow ground;

2.All wheel drive,strong climbing ability.

3.Using CF186F vertical direct-spray air-cooled engine,with both electrical and manual startup devices;

4.Designed with guide wheel and joystick ,it is labor saving and easy to control.

5.Hydraulic travel,adopt imported pump&starting motor,CVT.



3. Main technical parameters of QLNC08H



Model		QLNC08H
Operating mass	kg	770
Static linear load	N/cm	62/62
Vibration amplitude	mm	0.25
Vibration frequency	Hz	48
Centrifugal force	KN	12
Travel speed	Km/h	0-4
Grade ability	%	40
Turning radius	mm	2700
Turning angle	°	±30
Overall dimension	mm	2400×880×1100
Vibration drum diameter	mm	400
Vibration round width	mm	600
Wheelbase	mm	470
Diesel power	kw	5.68
Diesel model		CF186F
rated speed	r/min	2600
diameter X travel	mm	86x70
discharge volume	mL/r	10
drum thinck	mm	13
drum width	mm	60
drum dirmeter	mm	40
fuel oil capacity	L	5.5
water capacity	L	32
hydraulic oil capacity	L	10
fuel consumption		2K-100

 4. Usage



QLNC08H Hydraulic walking behind vibratory road roller

can be used for municipal road construction,highway maintenance,and rolling work at narrow road surface,

such as foundation of groove wider than 0.8m, building construction, backfilling for pipeline and stadium ground.



5. Pictures showing

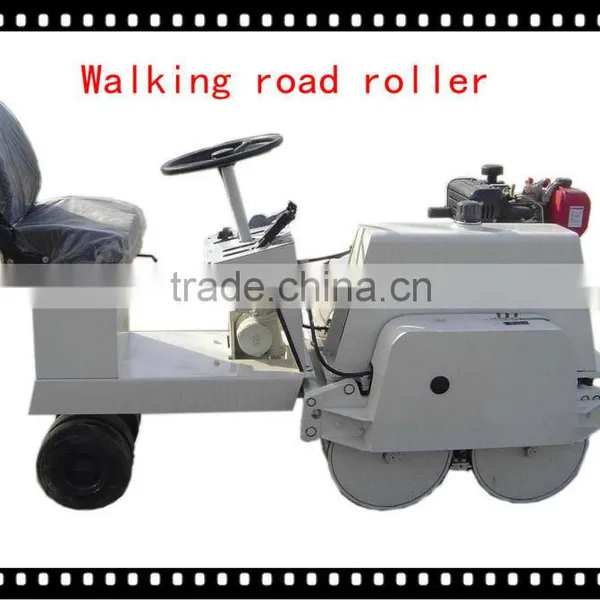

General view

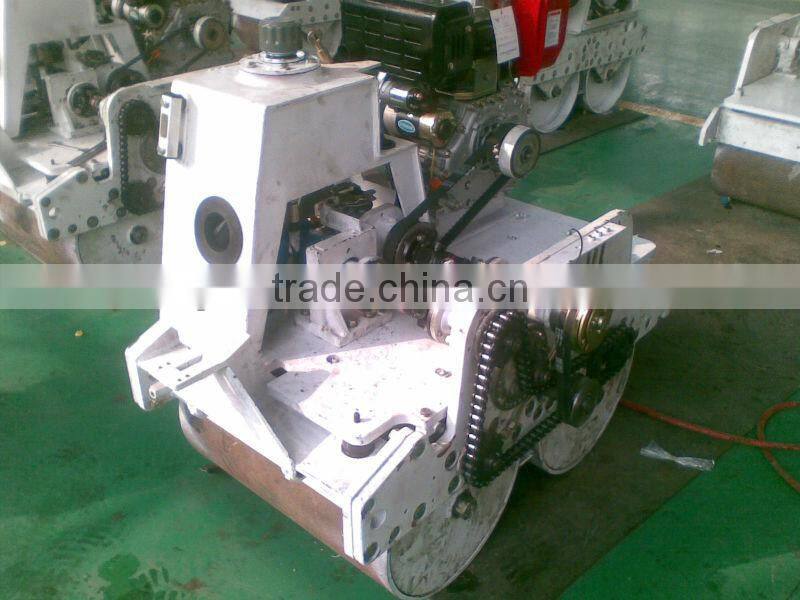

Details:



Our assembly line



Our certificate
