Specifications
1.CE certificates2.High reliability
3.Low price
4.Great working mass
5.One year warranty
Hydraulic vibratory road roller,14 ton road roller made in China(QLND214H)
1. <Standard configuration>
Model :QLND214H
Engine: 6BT5.9
Cab: Air conditioner cab
Travelling and vibrating system : Adopt the products of SAUER or REXROT
2. <Optional configuration>
1. Degree of compaction random detector
2. padfoot or removal padfoot
3. <Main Features>
1.Power system: cummins B-series extra-pressure diesel engine,huge power man coeffciency ,complicable for the operating conditon above 4000 meters altitude.
2.Total hydraulic pressure,total drive,frequency and radiation conversion,articulated direction change,tow stepless speed
changes,advanced technology,blocking the oil supply to brake the vehicle,safe and reliable.
3.Streamline outline,circular windshield glass and curvy hood form a unique style.
4.Hydraulic pump and vibrating motors are of the 90 series made by the American manufacturer SAUER.
5.Equipped with padfoot or removal padfoot as option
4. <Main Technical Parameters>
| Model | QLND214H | |
| Operating mass | kg | 14000 |
| Static linear load | N/cm | 400 |
| vibration amplitude | mm | (1.8/0.9) |
| Vibration frequency | Hz | (29/35) |
| Centrifugal force | KN | (290/160) |
| Travel speed | km/h | 12 |
| Grade ability | % | 35 |
| Turning radius | mm | 7000 |
| Overall dimension | mm | 5860x2278x3050 |
| Vibration round with | mm | 2100 |
| Wheelbase | mm | 3300 |
| Ground clearance | mm | 472 |
| Diesel power | KW | 110 |
| Diesel model | 6BT5.9 |
5. <Range of applicastion>
QLND214H Hydraulic vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad.
The machine is super heavy-scale mechanized construction.
This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can be a good effect compaction in cohesive material, Therefore the machine an ideal equipment for expressway,mining road, embankment, seaport and industrial sites.

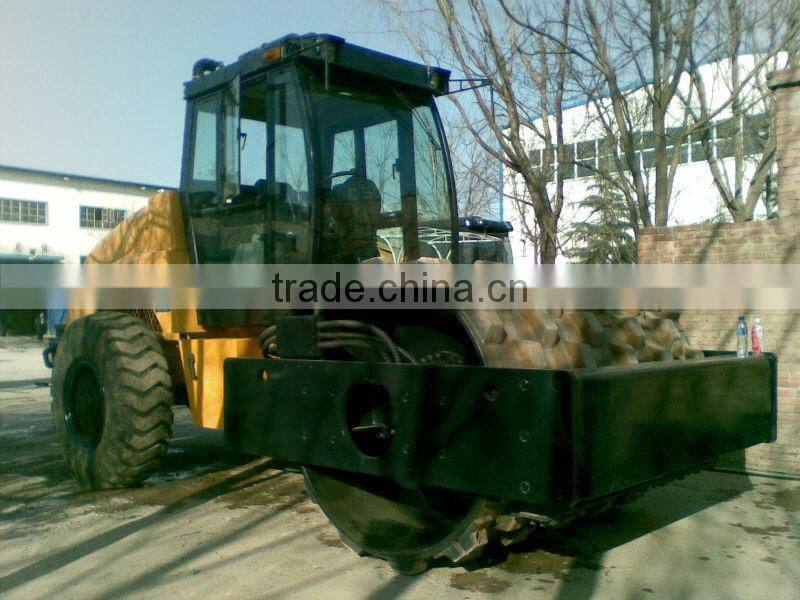

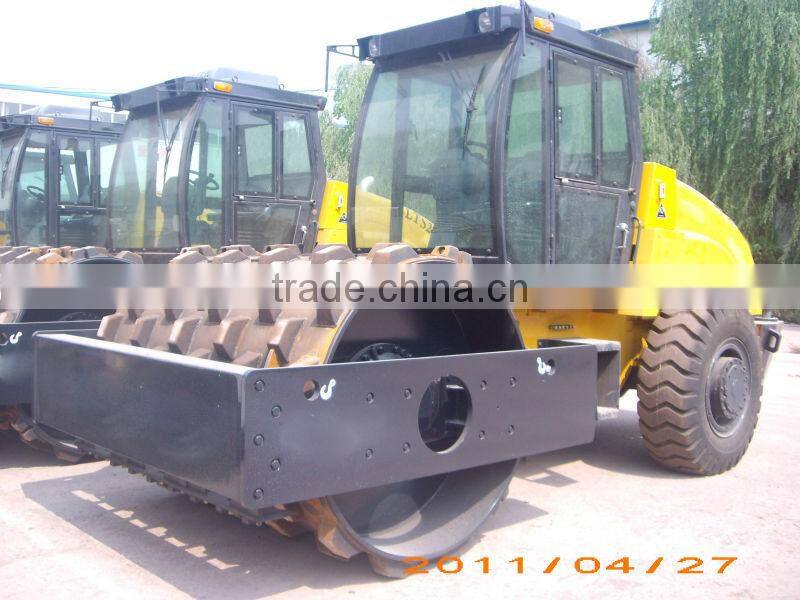

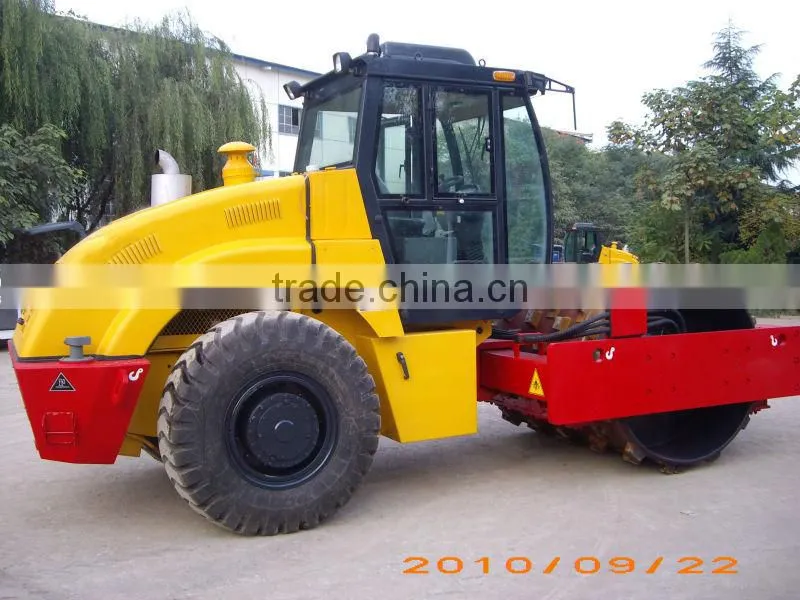

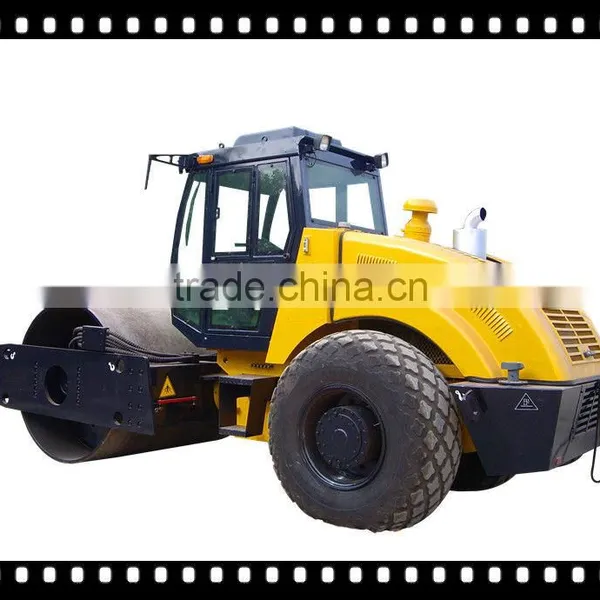

6. <Pictures>
Details

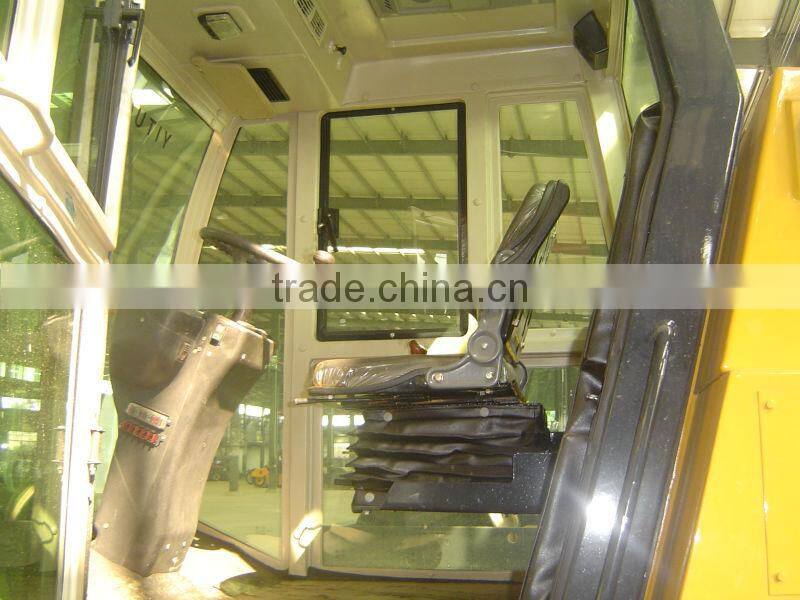

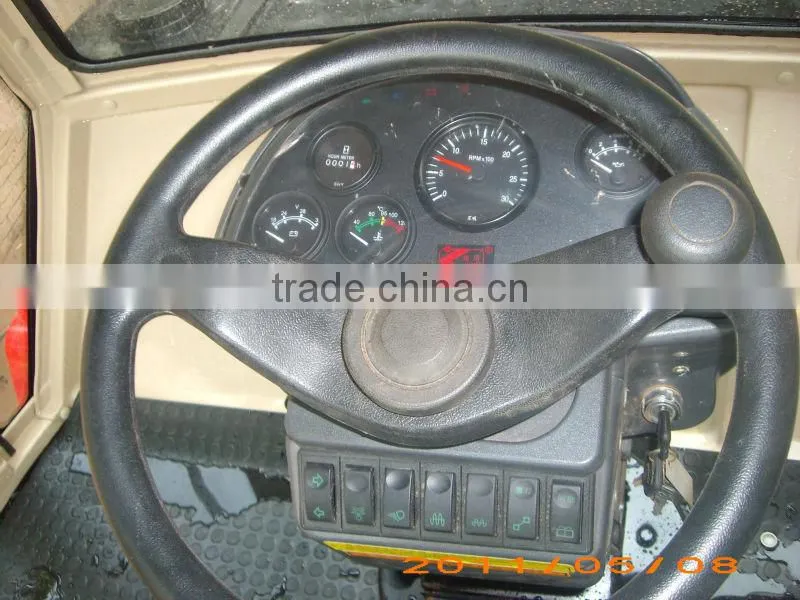

spacious cab---easy to operate

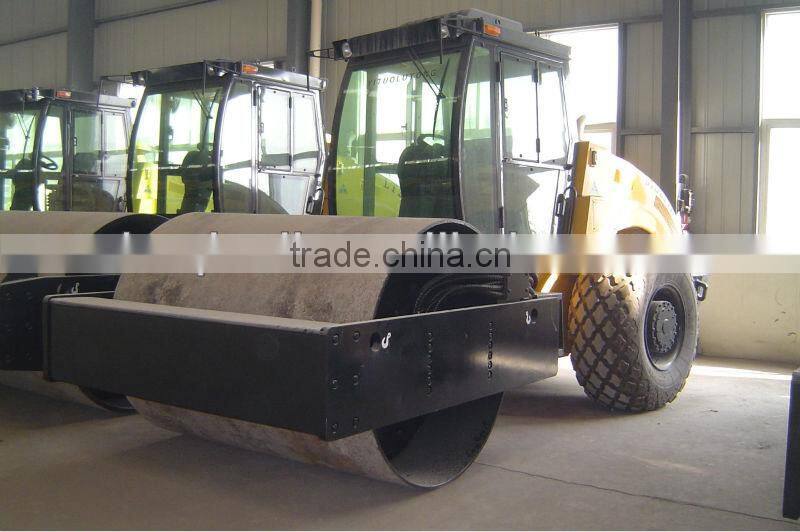

practical drum
