Specifications
1.CE certificate2.One year warranty
3.Spare part services
4.High dependable
Top brand tir-three wheel static road roller for sale
1----Main Features
1.Steady quality,serial products coverwide applications.
2.Electric power sprinkler device.
3.Low gravity center,good stability.
4.Spacious and comfortable cab,with broad visual view.
5.Central articulated hydraulic steering for flexible turning and concenient operation.
2----Standard configuration
Model : QLNJ2125
Engine : YC6108G
1.Static grinding,articulated short the body structure,cab mid-engine,working in a great view;
2.Hydraulic steering,low gravity toward the steering wheel deft and flexible;
3.Bridge type driving,hydraulic booster embedded disk brake,brake good,the two sets of brake system, safe and reliable;
4.Cab adopt glass that against ultraviolet ray;
5.Equipped with large capacity and dynamic sprinkler system
3----Main Technical Parameters
| MODEL | RRJ2125 | |
| Operating mass | kg | |
| Without ballast | 21000 | |
| With ballast | 25000 | |
| Front linear load | N/cm | |
| Without ballast | 575 | |
| With ballast | 650 | |
| Read linear load | N/cm | |
| Without ballast | 1200 | |
| With ballast | 1385 | |
| Travel speed (ⅠⅡⅢ) | km/h | |
| 1st gear | 2.0 | |
| 2nd gear | 4.0 | |
| 3rd gear | 9.6 | |
| Grade ability | % | 30 |
| Turning radius | mm | |
| Inside | 5180 | |
| Outside | 75 | |
| Steering angle | . | 35 |
| Overall length | mm | 5700 |
| Overall width | mm | 2300 |
| overall height | mm | 3000 |
| Front wheel size | mm | |
| Width | 1680 | |
| Diameter | 1500 | |
| Rear wheel size | mm | |
| Width | 530 | |
| Diameter | 1700 | |
| Wheelbase | mm | 2945 |
| Ground clearance | mm | 370 |
| Diesel model | YC6B120 | |
| Diesel power | Kw | 88 |
| Diesel speed | r/min | 2000 |
| Fuel tank capacity | L | 200 |
| Electrical voltage | V | 24 |
| Hydraulic tank capacity | L | 40 |
4----Application
LTJ2125 The machines are heavy-duty static three wheel road rollers.With their dead weight, they compact cohesive and non-cohesive materials, such as gravel, sand stone mixture, sandy soil, and asphalt concrete.They are universal compaction equipments for highway, municipal road, parking area and industry ground etc, medium and large-scale construction projects.

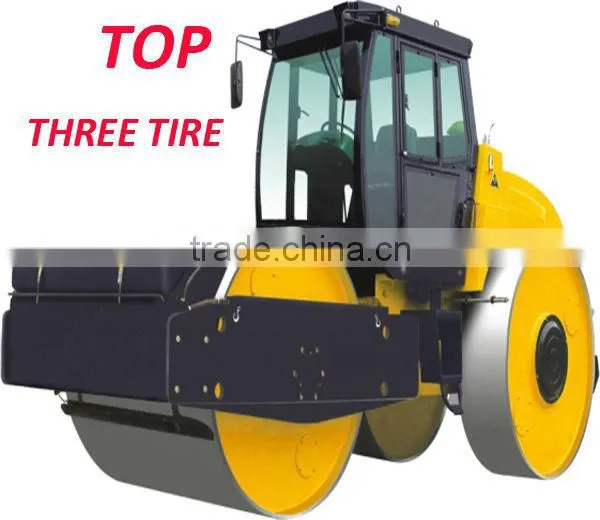

5----Pictures of road roller
