3 ton double drum hydraulic vibratory road roller for sale

Specifications

1.CE certifictes
2.High efficiency
3.Safe and dependable
4.Famouse and advanced enginr and motor
5.Easy to operate

<8 ton double drum hydraulic vibratory road roller for sale >

1.----Standard configuration

1.Hydraulic full-wheel drive ,full-wheel vibrating,articulated steering,CVT

2.Engine:adopt changchaiZN390Q engine;

3.Driving hydraulic element:the products of SAUER are adopted;

4.Vibrating system: adopt joint venture brand's gear pump,motor;

5.Both front and rear wheels have scrapign and water spray unit;

6.With a useful Anti-roll awning.



2.----Main Features

1.Hydraulic double wheels drive,hydraulic double wheels vibrating and steering,with reliable performance and optimun function/price ratio.

2.Both front and rear wheels have scraping and water spray unit;

3.Adopt N390 diesel engine,very convenient for use and maintenance;

4.Compact integral structure,small volume,capable of used for compaction on narrow site.

3.----Main Technical Parameters



Model		QLN C203
Operating mass	kg	3000
Static linear load	N/cm	120
Vibration amplitude		0.5
Centrifugal force	KN	2X30
Vibration frequency	Hz	50
Travel speed (ⅠⅡⅢ)	km/h	0-12
Grade ability	%	30
Steering angle	.	±30
Overall Dimension	mm	2760x1400x2520
Drum diameter	mm	700
Drum width	mm	1250
Quantity of rear tire		/
Specification of rear tire		/
Wheelbase	mm	2010
Diesel power	Kw	23
Diesel model		ZN390Q



 4.----Range of applicaton

QLNC 203 series vibratory roller,

applicable for maintenance of the municipal road, as well as suitable for the compaction of the narrow road surfaces such as groove foundation,building construction, pipeline backfill and stadium.

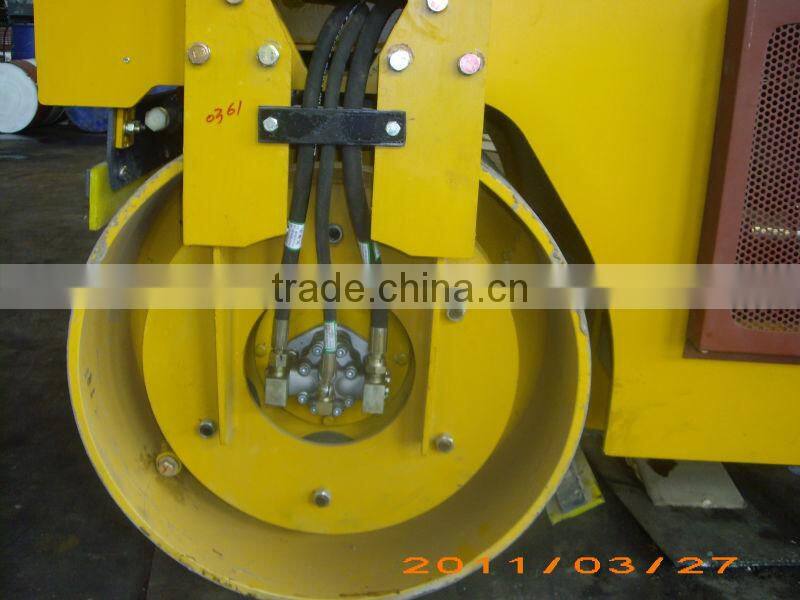

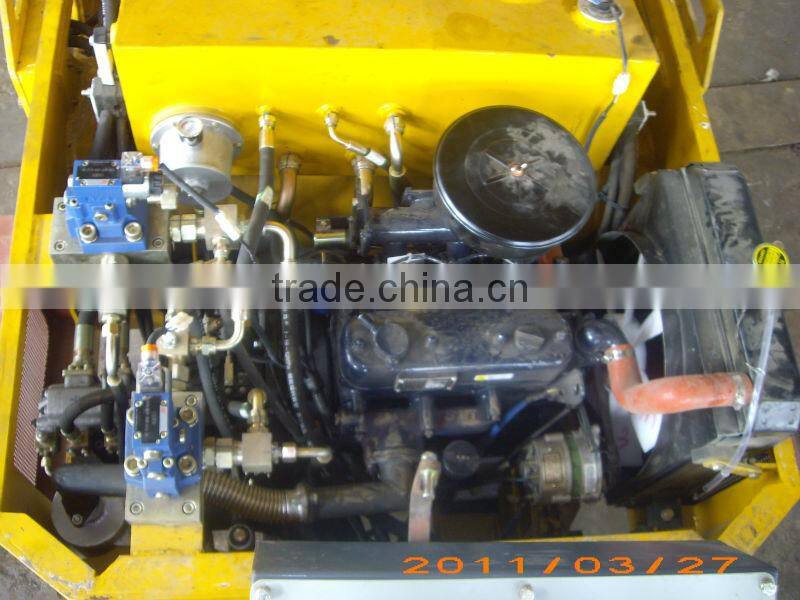

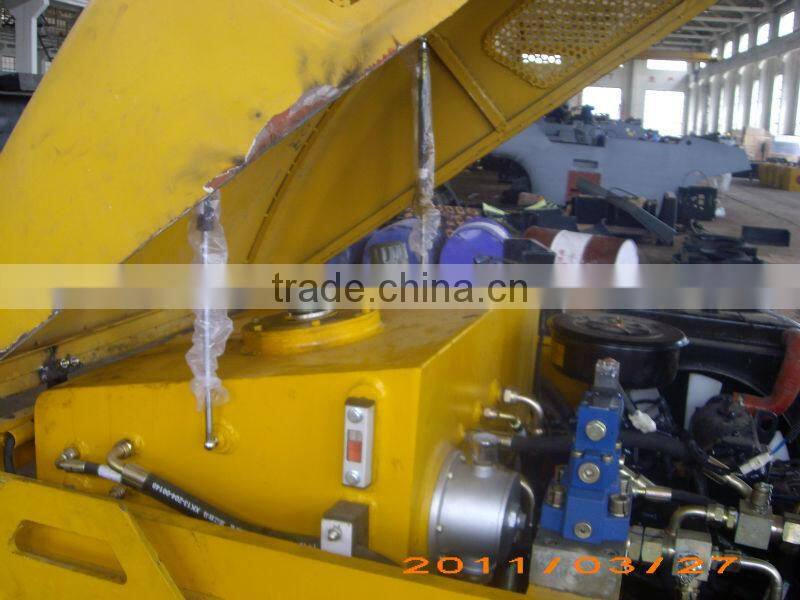

5.----Pictures



Details
