With excellent quality QLN904 agricultural tools and uses

Specifications

agricultural tools and uses:
1.YTO/YUCHAI engine
2 Gear type:F16+R8
3 Rated power:59kw
4 PTO speed:540/1000 r/min

              QLN904 agricultural tools and uses

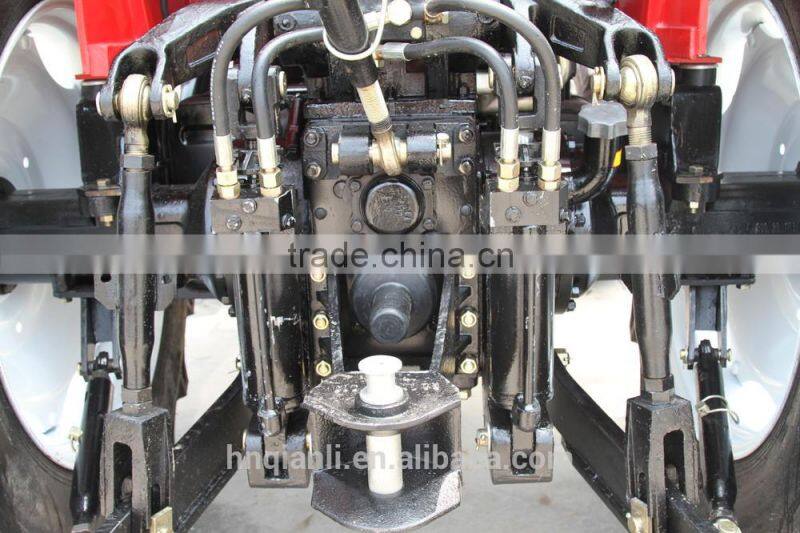

 Pictures of QLN904



















 Technical parameters



Model	QLN904
Drive type	4*4
Engine
Engine model	LR4M5-23
Capacity of fuel tank(L)	150
Rated speed (r/min)	2300
Engine power (kw)	66.2
rated fuel consumption (g/kw·h)	≤242
Transmission
Clutch	Single,dry,plate spring pressed,independent,dual stage
PTO Speed(rpm)	760/1000
Gearshift	F16+R8
Hydraulic system
Hydraulic output valve	Two group
Three point linkage
Category of 3-point link	Category II
Lifting capacity(at point of 610mm)KN	≥15.9
Technical parameter
Dimension (L*W*H) mm	4280*2085*2815
Wheel base(mm)	2195
Track base(mm) front wheel	1610
Track base(mm) rear wheel	1620~2020
The smallest clearance(mm)	370
Front tyre	11.2-24
Rear tyre	16.9-34







Main Features



1. With strong power, compact structure, advanced design, and perfect function.



2. Good quality engine showing advanced capacity, low fuel consumption and high economic efficiency



3. Flat floor and right-sided operation system, making operation comfortable and efficient.



4. 150L enlarged fuel tank, ensure longer working time



5. F16+R8 shuttle gear shift Transmission type, with reasonable matching of gear position and strong agricultural adaptability.



6. Independent hydraulic fuel system with high reliability.



7. Strengthened chassis having great extension capacity and high reliability.



8. Intensified pressured lifter with higher lifting, better operation and higher reliability.



9. The material of the cab can be available for 20 years without color fading or damaging.





Main Devices



4 cylinder diesel engine



Gearbox; F16+R8 (with creeper)



4 Wheel-drive



Hydraulic power steering



Differential lock



Dual speed PTO (760/1000 or 540/1000  r/min)



Dual clutch



Partial separated hydraulic hitch



Draft positional adjustable



Rear-mounted three-point



Types of our tractors



QLN has over 70 types tractors mainly in 6 series.



1. 35 series 250-354 (from 25hp-35hp 2/4wd)



2. 40 series 400-554B (from 40hp-55hp 2/4wd)



3. 50 series 550-654 (from 55hp-65hp 2/4wd)



4. 80B series 700-854B (from 70hp -85hp 2/4wd)



5. 80A series 800-1004 (from 80hp-100hp 2/4wd)



6. 100 series 1104-1304 (from 110hp-130hp 4wd)





 Matched implements
