Specifications
90hp wheel tractor 4wd truck trailer1 YTO/YUCHAI engine
2 Gear type:F16+R8
3 Rated power:59kw
4 PTO speed:540/1000 r/min
QLN904 90hp wheel tractor 4wd truck trailer

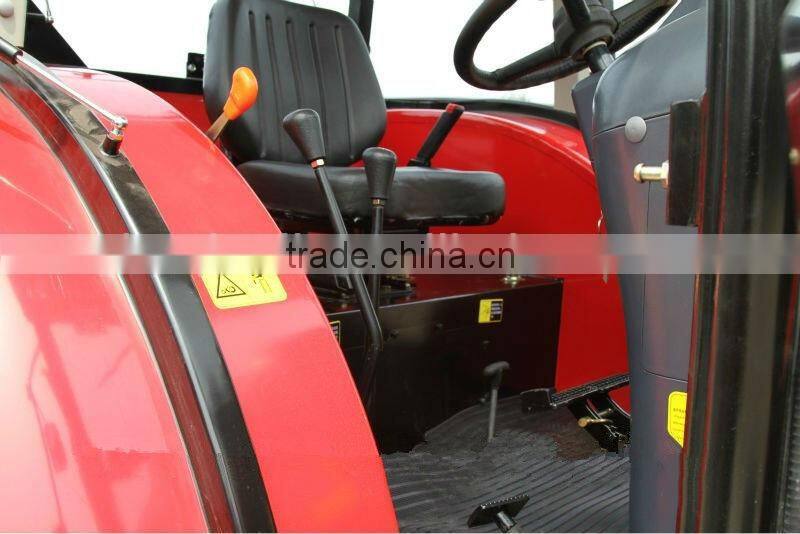

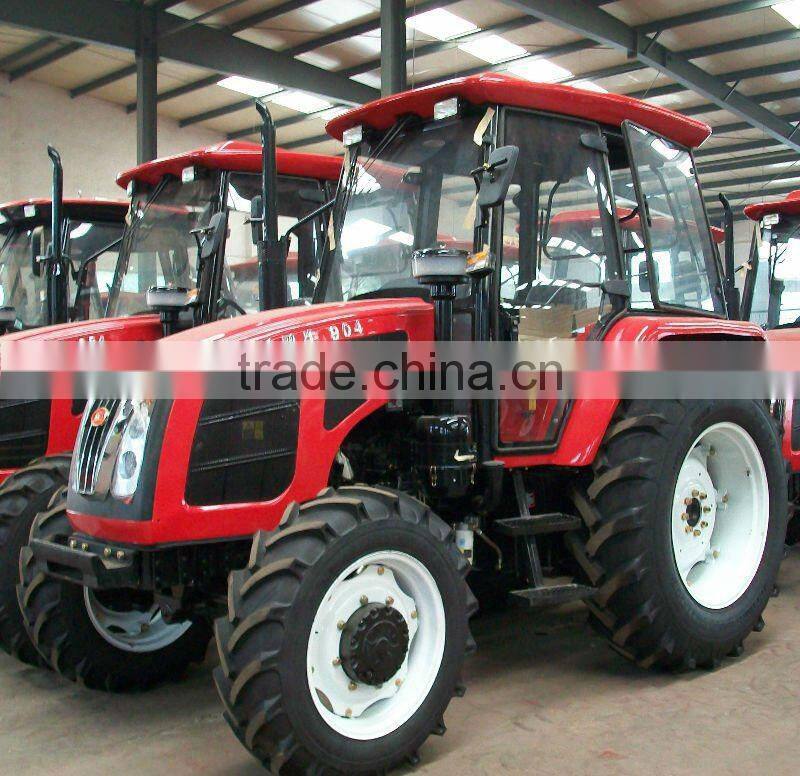

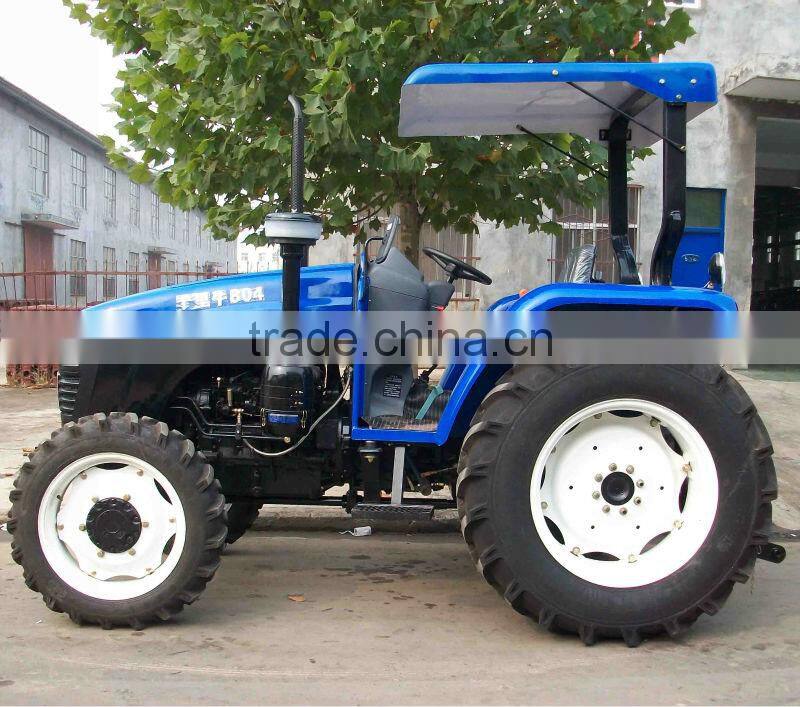

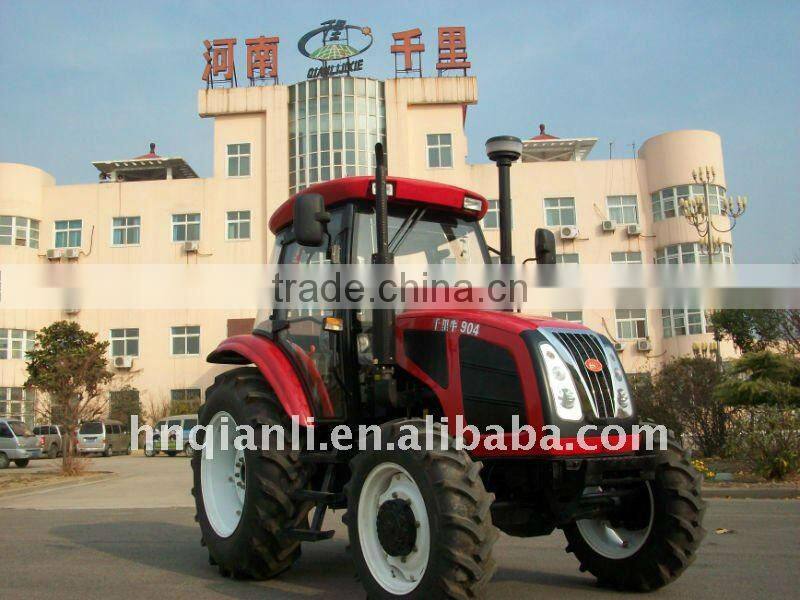

Pictures of QLN904
Technical parameters
| Model | QLN904 | ||||
| Drive type | 4*4 | ||||
| Engine | |||||
| Engine model | LR4M5-23 | ||||
| Capacity of fuel tank(L) | 150 | ||||
| Rated speed (r/min) | 2300 | ||||
| Engine power (kw) | 66.2 | ||||
| rated fuel consumption (g/kw·h) | ≤242 | ||||
| Transmission | |||||
| Clutch | Single,dry,plate spring pressed,independent,dual stage | ||||
| PTO Speed(rpm) | 760/1000 | ||||
| Gearshift | F16+R8 | ||||
| Hydraulic system | |||||
| Hydraulic output valve | Two group | ||||
| Three point linkage | |||||
| Category of 3-point link | Category II | ||||
| Lifting capacity(at point of 610mm)KN | ≥15.9 | ||||
| Technical parameter | |||||
| Dimension (L*W*H) mm | 4280*2085*2815 | ||||
| Wheel base(mm) | 2195 | ||||
| Track base(mm) front wheel | 1610 | ||||
| Track base(mm) rear wheel | 1620~2020 | ||||
| The smallest clearance(mm) | 370 | ||||
| Front tyre | 11.2-24 | ||||
| Rear tyre | 16.9-34 | ||||
Main Features
1. With strong power, compact structure, advanced design, and perfect function.
2. Good quality engine showing advanced capacity, low fuel consumption and high economic efficiency
3. Flat floor and right-sided operation system, making operation comfortable and efficient.
4. 150L enlarged fuel tank, ensure longer working time
5. F16+R8 shuttle gear shift Transmission type, with reasonable matching of gear position and strong agricultural adaptability.
6. Independent hydraulic fuel system with high reliability.
7. Strengthened chassis having great extension capacity and high reliability.
8. Intensified pressured lifter with higher lifting, better operation and higher reliability.
9. The material of the cab can be available for 20 years without color fading or damaging.
Main Devices
4 cylinder diesel engine
Gearbox; F16+R8 (with creeper)
4 Wheel-drive
Hydraulic power steering
Differential lock
Dual speed PTO (760/1000 or 540/1000 r/min)
Dual clutch
Partial separated hydraulic hitch
Draft positional adjustable
Rear-mounted three-point

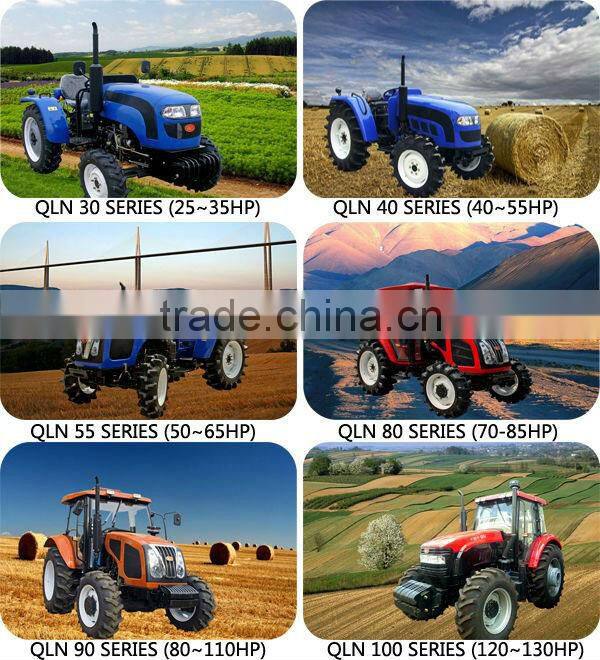

Types of our tractors
QLN has over 70 types tractors mainly in 6 series.
1. 35 series 250-354 (from 25hp-35hp 2/4wd)
2. 40 series 400-554B (from 40hp-55hp 2/4wd)
3. 50 series 550-654 (from 55hp-65hp 2/4wd)
4. 80B series 700-854B (from 70hp -85hp 2/4wd)
5. 80A series 800-1004 (from 80hp-100hp 2/4wd)
6. 100 series 1104-1304 (from 110hp-130hp 4wd)

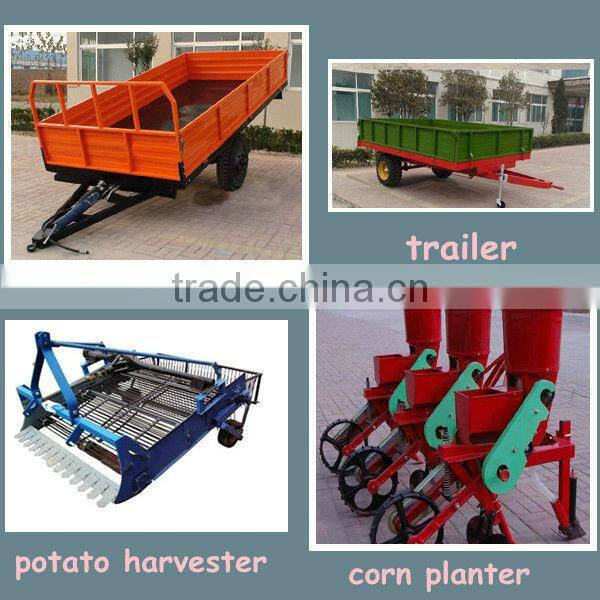

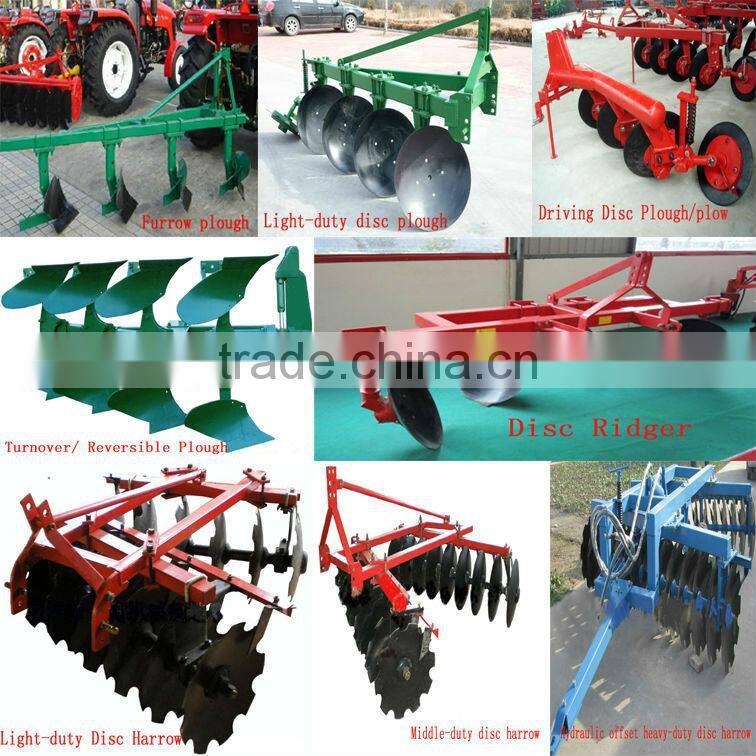

Matched implements
Our clients
Our company
Henan Qianli Machinery Co. Ltd has 25 years professional manufacturer.
Qianli now covers an area of 11 hectare and has 13 modernized process lines.
Our products have been exported to many other countries,
Such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.
Our certifications
Please dO not hesitate tO contact us, if you are satisfied with our products !!!
lOOking forward tO cooperating with yOu!!!
