Specifications
New arrival:73.5KW china famous big horsepower yanmar tractor for sale1.wet disc brake
2.dual-stage clutch
3.China Top Brand
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Qianli is the most popular Chinese tractors for export .
Qianli two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large tractive force,
low fuel consumption,varied functions, and being easy to operate,wide applications and reliable operations.
New arrival:73.5KW china famous big horsepower yanmar tractor for sale

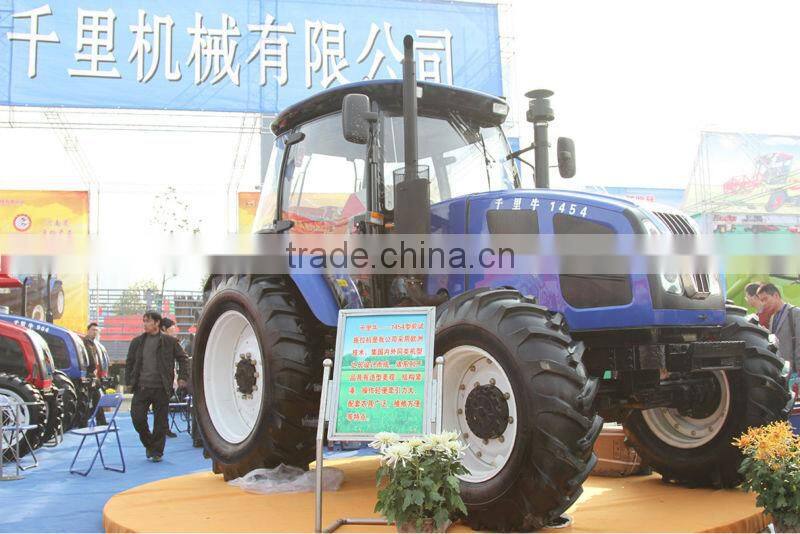

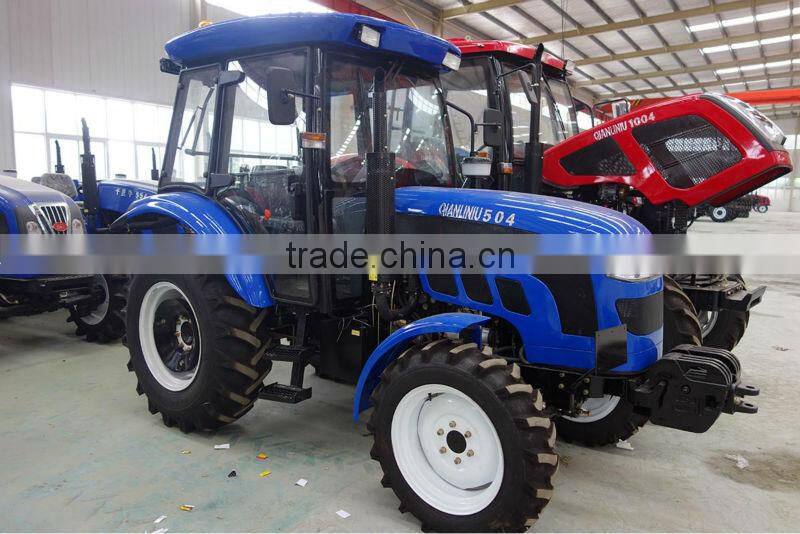

Pictures:
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Specification of QLN-1000/1004 tractor(100hp,2/4WD):
| Specifications | |||||
| Basic configuration | |||||
| Model | QLN-1000/1004 | ||||
| Dimensions | Length×Width×Height(mm) | 4280×2085×2925 | |||
| Wheel Tread(mm) | Front Wheel(mm) |
1610—1820(4WD) 1520—1820(2WD) |
|||
| Rear Wheel(mm) | 1620—2020 | ||||
| Min.Ground Clearance(mm) | 370—450 | ||||
| Dry Mass | With Cab(kg) | 3635(2WD) 3785(4WD) | |||
| Without Cab(kg) | 3420(2WD) 3570(4WD) | ||||
| Engine | Trade Mark or Brand | YTO/YUCHAI/LOVOL(Perkins) | |||
| Engine Model | Vertical Water Cooled 4-stroke | ||||
| Directly Injection | |||||
| Number of Cylinder | 4 | ||||
| Cooling System Type | Water Cooled | ||||
| Rated Power(kw) | 73.5KW | ||||
| Max. Torsion(N.M) | 395 | ||||
| Rated Speed(r/min) | 2300 or 2400 | ||||
| Fuel Tank | Volume(L) | 150 | |||
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |||
| Gear Box | F16+R8/F16+R8(creeper gear) | ||||
| Differential | Closed 4-planetary Gears | ||||
| Differential Lock | Mechanical Sliding Sleeve | ||||
| Braking System | Wet Double Plate Disc Brake | ||||
| Running System | Tyre Model | F/R(2WD) | 6.5—20/16.9—34 | ||
| F/R(4WD) | 11.2—24/16.9—34 | ||||
| Steering System | Hydraulic Wheel Steering | ||||
| Working Device | Hydraulic System Type | Positive lifter | |||
| Linkage Type | II Rear Mount 3-point Linkage | ||||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||||
| PTO Speed(r/min) | 540/1000 | ||||
| Drawbar Type | Fixed Drawbar/Swing Drawbar | ||||
| Optional configuration | |||||
| Cab | AC | Heater | Air-brake | ||
| Adjustable Seat | Multiple Unit Valve | ROPS | Sunvisor | ||
| Double Crush Lifter | Radio | CD Player | Paddy Tyre | ||
| Bob-weight | Frontballest | 11×20=220kg 20kg/pcs | |||
| Rearballast | 2×80=160kg 80kg/pcs | ||||
| Paddy Tyre | F/R | 11.2—24/12.4—24 | |||
| F/R(optional) | 13.6—28/16.9—34 | ||||
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Details:
1- All modes are powered with the famous YTO/YUCHAI/LOVOL(Perkins engine) brand Engine, Vertical Water Cooled 4-stroke and 4 cylinders . It offers high performance/ Low fuel consumption and vibration noise.
2- Double action clutch is installed for independent operation.
3- Full hydraulic steering system with smaller turning radius, being flexible and reliable.
4- Combination 4×(2+1)×2 gear box with creeper gear having 16 forward gears and 8 backward gears for easy operation and higher efficiency.
5- The main gear shift adopts synchronizer shift to reduce impact to gear to the maximum and thus, effectively elongated gear service life, range shift adopted tooth shift. The proper matching has guaranteed gear box’s best use and optimized cost performance ratio.
6- FIAT front axle from Italy is used with advanced structure and super performance.
7- Independent hydraulic fuel system with high reliability.
8- Strengthened chassis having great extension capacity and high reliability.
9- Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.
10- Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity 1/4 of steel. The material durability is great for 20 years without color change. Stiffness is also very high in that restoration of shape can be realized after forceful impact.
New arrival:73.5KW china famous big horsepower yanmar tractor for sale

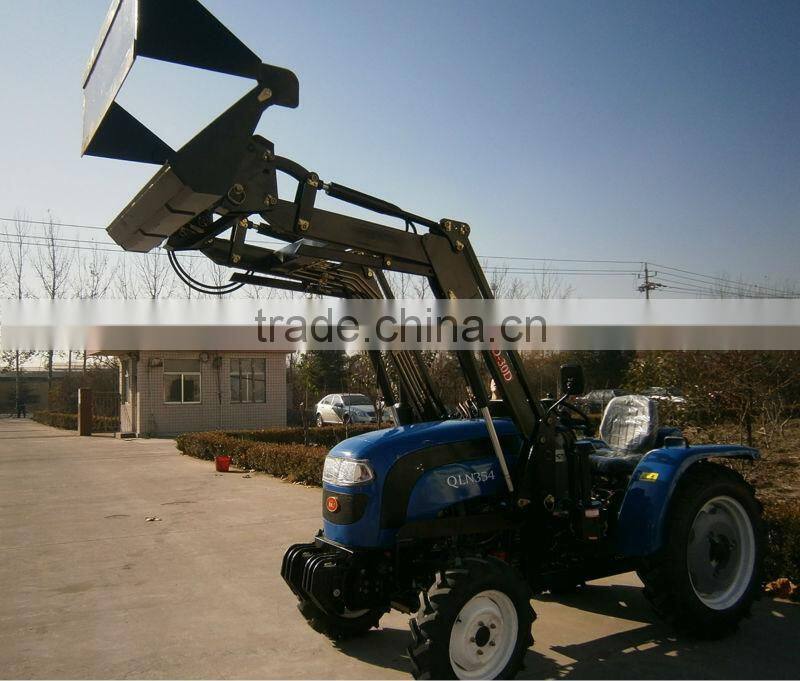

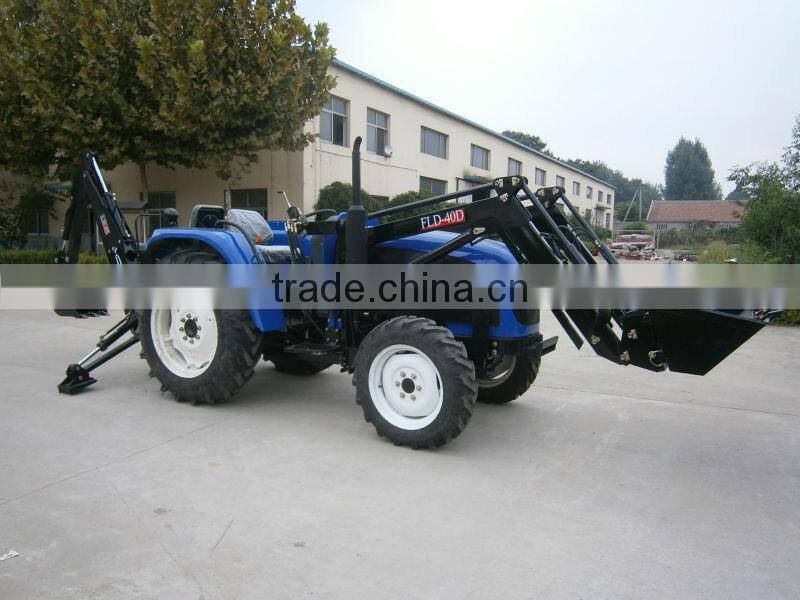

Match agricultural implements:
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Certificates:
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Factory:
We'll serve you good quality products with suprising prices.
Welcome to contact us!!!
New arrival:73.5KW china famous big horsepower yanmar tractor for sale
Contact us:
Henan Qianli Machinery Co.,Ltd.
South Circular Road, Weishi Industrial Cluster Area, Kaifeng, Henan, China (Mainland)
Tel: +0086-371-5505 1327/Mobile: +0086-1393902 1485/Fax:+0086-371-6531 6358/Skype: jason.yang2013
Website: http://hnqianli.en.china.cn /
