73.5KW china YTO engine used scania 113 tractor

Specifications

73.5KW china YTO engine used scania 113 tractor
1.wet disc brake
2.dual-stage clutch
3.China Top Brand
4.Hydraulic steering

73.5KW china YTO engine used scania 113 tractor





QLN-1000/1004 tractors
Specifications
	Basic configuration
	Model	QLN-1000/1004
	Dimensions	Length×Width×Height(mm)	4280×2085×2925
		Wheel Tread(mm)	Front Wheel(mm)	1610—1820(4WD) 1520—1820(2WD)
			Rear Wheel(mm)	1620—2020
		Min.Ground Clearance(mm)	370—450
	Dry Mass	With Cab(kg)	3635(2WD) 3785(4WD)
		Without Cab(kg)	3420(2WD) 3570(4WD)
	Engine	Trade Mark or Brand	YTO/YUCHAI/LOVOL
		Engine Model	Vertical Water Cooled 4-stroke
			Directly Injection
		Number of Cylinder	4
		Cooling System Type	Water Cooled
		Rated Power(kw)	73.5
		Max. Torsion(N.M)	395
		Rated Speed(r/min)	2300 or 2400(LR4M3Z-24)
	Fuel Tank	Volume(L)	150
	Transmission System	Clutch	Single,Dry,Dual Stage Type
		Gear Box	F16+R8/F16+R8(creeper gear)
		Differential	Closed 4-planetary Gears
		Differential Lock	Mechanical Sliding Sleeve
	Braking System	Wet Double Plate Disc Brake
	Running System	Tyre Model	F/R(2WD)	6.5—20/16.9—34
			F/R(4WD)	11.2—24/16.9—34
	Steering System	Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor
	Working Device	Hydraulic System Type	Positive lifter
		Linkage Type	II Rear Mount 3-point Linkage
		PTO(Standard)	φ38,8teeth φ35,6teeth
		PTO Speed(r/min)	540/1000
		Drawbar Type	Fixed Drawbar/Swing Drawbar
	Optional configuration
	Cab	AC	Heater	Air-brake
	Adjustable Seat	Multiple Unit Valve	ROPS	Sunvisor
	Double Crush Lifter	Radio	CD Player	Paddy Tyre
	Bob-weight	Frontballest	11×20=220kg 20kg/pcs
		Rearballast	2×80=160kg 80kg/pcs
	Paddy Tyre	F/R	11.2—24/12.4—24
		F/R(optional)	13.6—28/16.9—34

73.5KW china YTO engine used scania 113 tractor

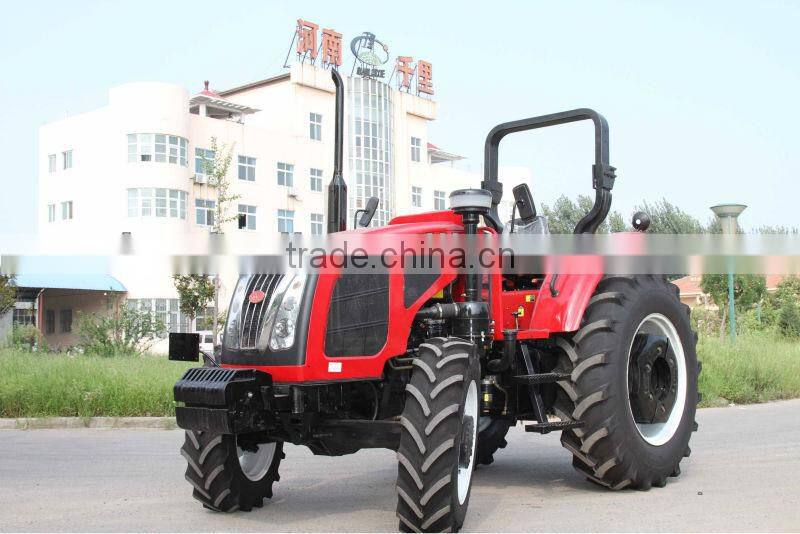

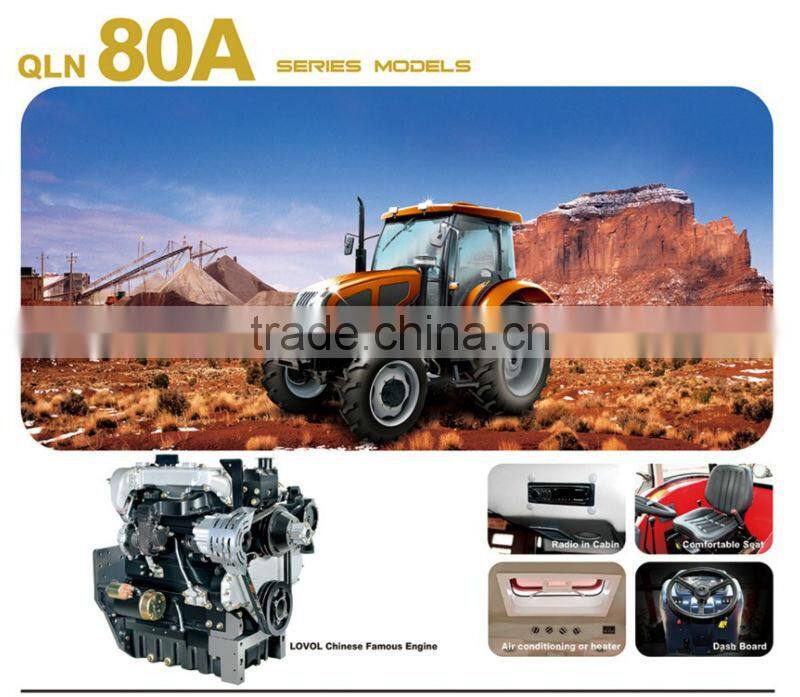

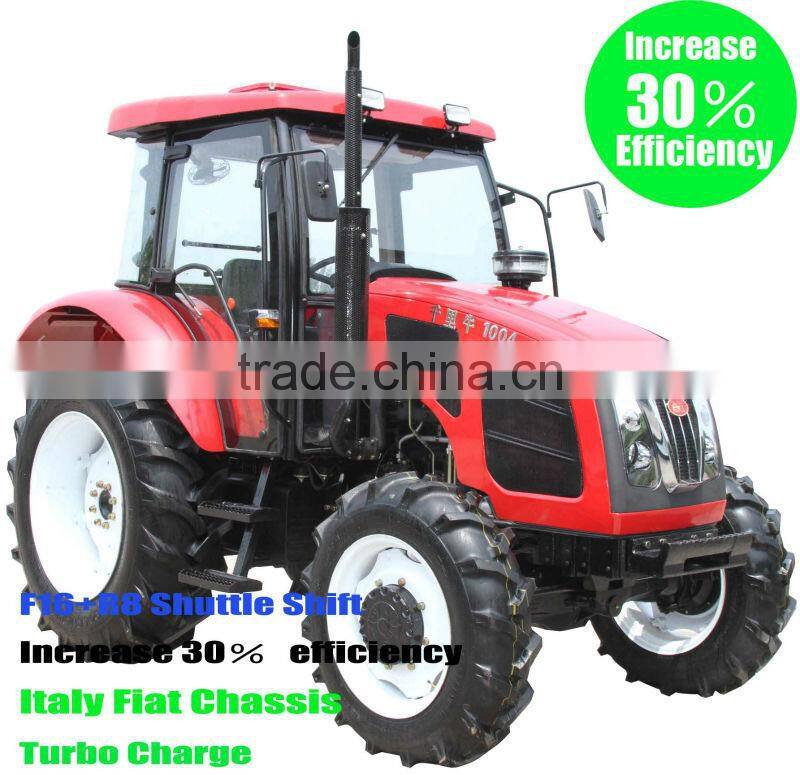

Product pictures:



73.5KW china YTO engine used scania 113 tractor

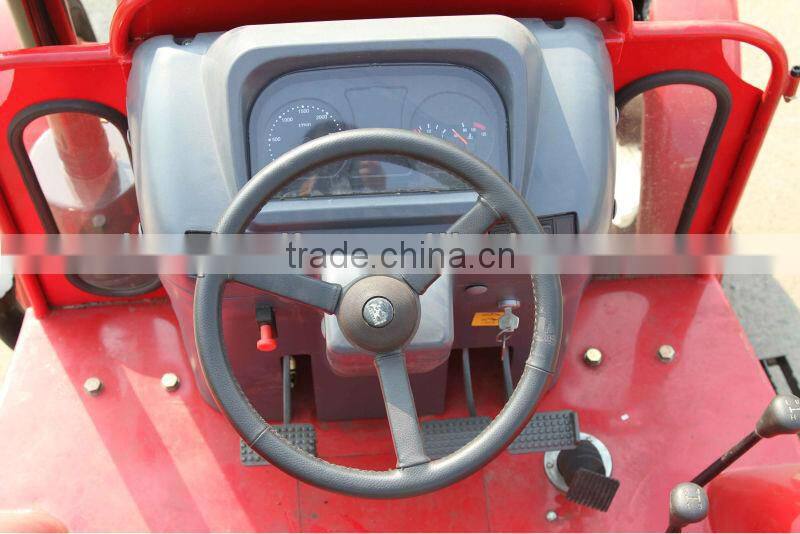

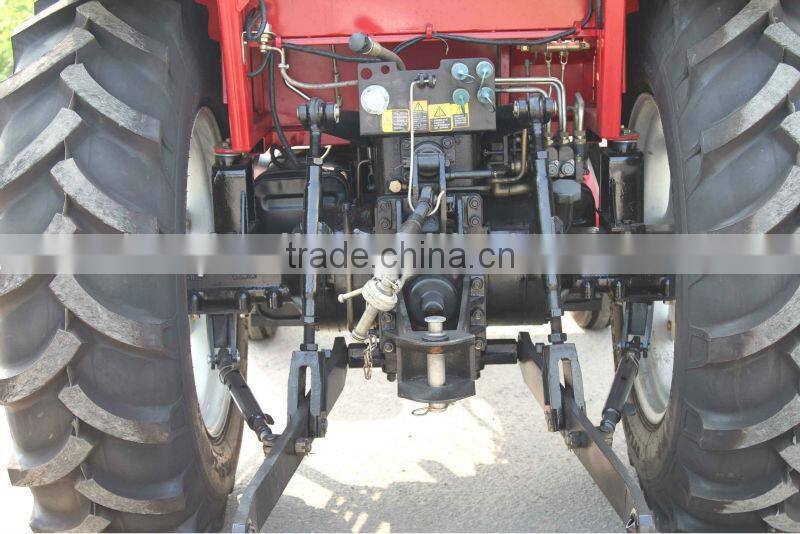

Details:

1-  All modes are powered with the famous YTO/YUCHAI/LOVOL brand Engine, Vertical Water Cooled 4-stroke and 4 cylinder . It offers high performance/ Low fuel consumption and vibration/ noise.

2-  Double action clutch is installed for independent operation.

3-  Full hydraulic steering system with smaller turning radius, being flexible and reliable.

4-  Combination 4×(2+1)×2 gear box having 16 forward gears and 8 backward gears for easy operation and higher efficiency.

5- The main gear shift adopts synchronizer-shift to reduce impact to gear to the maximum and thus, effectively elongated

     gear service life, range shift adopted tooth shift. The proper matching has guaranteed gear box’s best use and

     optimized cost performance ratio.

6-  FIAT front axle from Italy is used with advanced structure and super performance.

7-  Independent hydraulic fuel system with high reliability.

 8-  Strengthened chassis having great extension capacity and high reliability.

 9-  Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.

 10- Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity

      1/4 of steel. The material durability is great for 20 years without color change. Stiffness is also very high in that

      restoration of shape can be realized after forceful impact.



73.5KW china YTO engine used scania 113 tractor

The customers:



73.5KW china YTO engine used scania 113 tractor

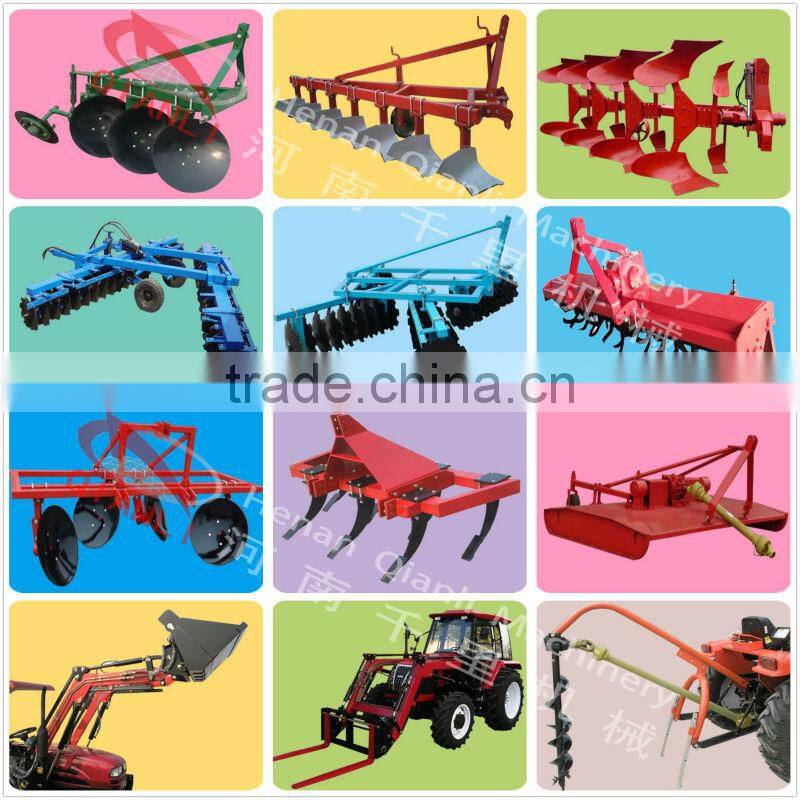

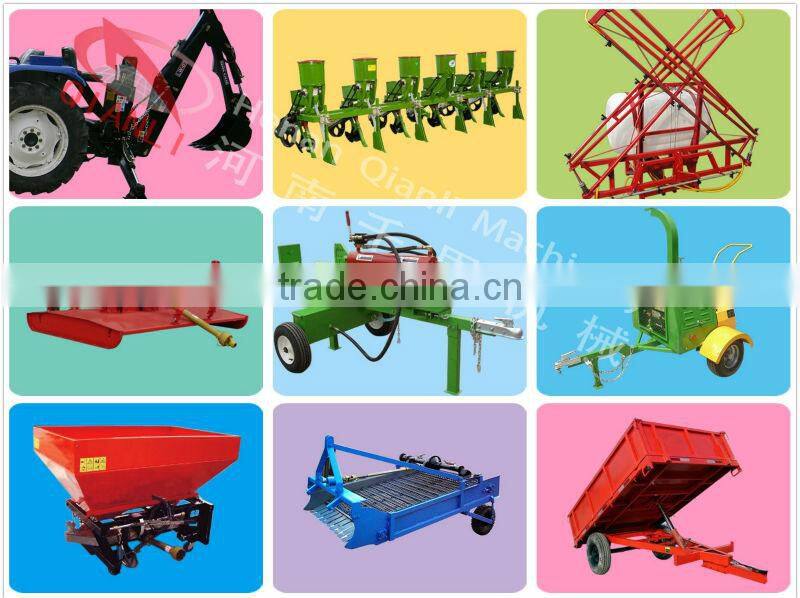

Match  agricultural implements:







73.5KW china YTO engine used scania 113 tractor

Certificates:







73.5KW china YTO engine used scania 113 tractor

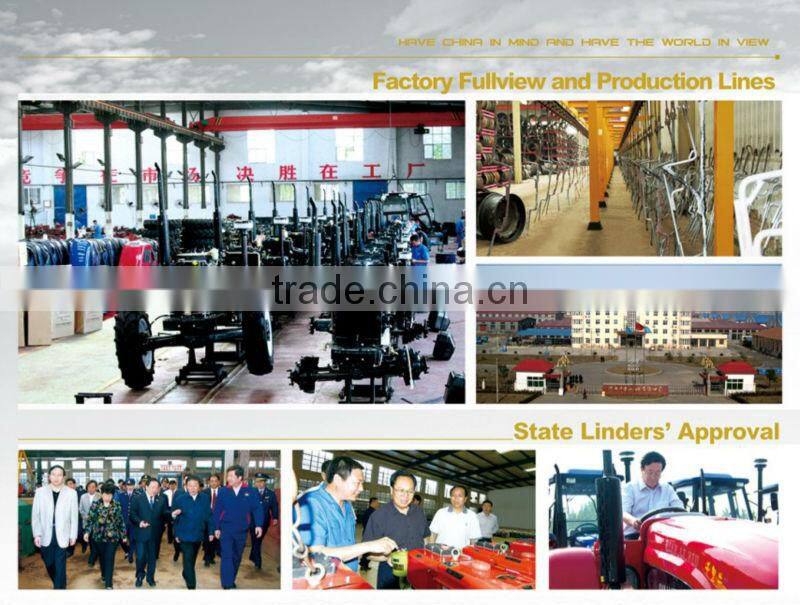

Factory:







73.5KW china YTO engine used scania 113 tractor
