Specifications
pto generator tractor:1.Low noise
2.Less consumption
3.Strong power engine
4.Flexible steering
QLN1004 4 wheel drive pto generator tractor
Specifications
- All modes are powered with the famous YTO/YUCHAI brand Engine, Vertical Water Cooled 4- stroke and 4 cylinder .
- high performance/ Low fuel consumption and vibration/ noise.
- Double action clutch is installed for independent operation.
- Full hydraulic steering system with smaller turning radius, being flexible and reliable.
- Combination having 16 forward gears and 8 backward gears for easy operation and higher efficiency.
- The main gear shift adopts synchronizershift to reduce impact to gear to the maximum and thus, effectively elongated
- gear service life, range shift adopted tooth shift. The proper matching has guaranteed gear box’s best use and
- optimized cost performance ratio.
- FIAT front axle from Italy is used with advanced structure and super performance.
- Independent hydraulic fuel system with high reliability.
- Strengthened chassis having great extension capacity and high reliability.
- Intensified pressured lifter optimal with higher lifting, better operation and high reliability.

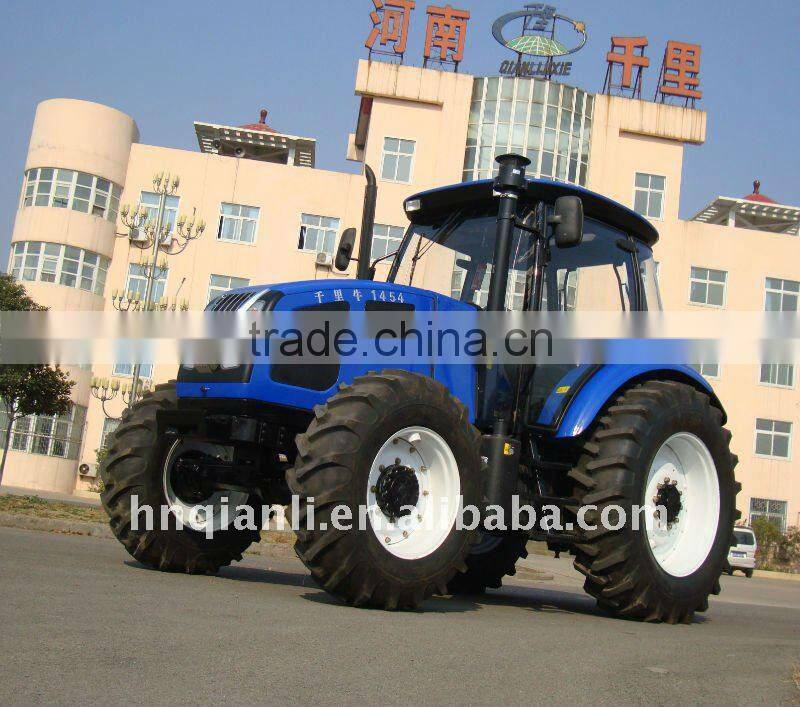

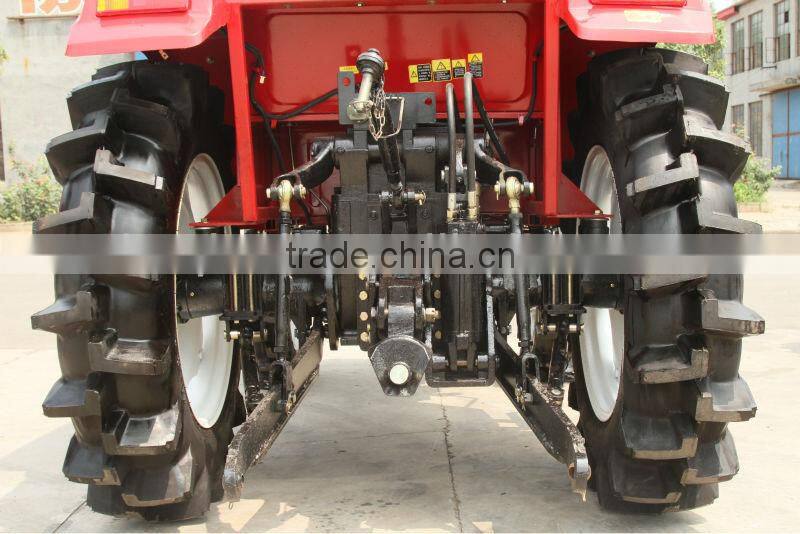

product pictures
Technical parameters
| Model | QLN-1000/1004 | ||
| Dimensions | Length×Width×Height(mm) | 4280×2085×2925 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1610—1820(4WD) 1520—1820(2WD) | |
| Rear Wheel(mm) | 1620—2020 | ||
| Min.Ground Clearance(mm) | 370—450 | ||
| Dry Mass | With Cab(kg) | 3635(2WD) 3785(4WD) | |
| Without Cab(kg) | 3420(2WD) 3570(4WD) | ||
| Engine | Trade Mark or Brand | YTO/YUCHAI | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 4 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 73.5KW | ||
| Max. Torsion(N.M) | 395 | ||
| Rated Speed(r/min) | 2300 or 2400 | ||
| Fuel Tank | Volume(L) | 150 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F16+R8/F16+R8(creeper gear) | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Wet Double Plate Disc Brake | ||
| Running System | Tyre Model | F/R(2WD) | 6.5—20/16.9—34 |
| F/R(4WD) | 11.2—24/16.9—34 | ||
| Steering System | Hydraulic Wheel Steering | ||
| Working Device | Hydraulic System Type | Positive lifter | |
| Linkage Type | II Rear Mount 3-point Linkage | ||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||
| PTO Speed(r/min) | 540/1000 | ||
| Drawbar Type | Fixed Drawbar/Swing Drawbar | ||
QLN tractor have over 70 types tractor mainly in 6 series
1.30 series 250-354 (from 25hp-35hp 2/4wd)
2.40 series 400-554B (from 40hp-55hp 2/4wd)
3.50 series 550-654 (from 55hp-65hp 2/4wd)
4 80 series 700-854B (from 70hp -85hp 2/4wd)
5.90 series 800-1004 (from 80hp-100hp 2/4wd)
6.100 series 1104-1304 (from 110hp-130hp 4wd
agricultural implements
