Specifications
1.YTO /YUCHAI 4 diesel engine2.Hydraulic steering
3.ISO2008:9001
4.new tractor cheap price
Welcome to Qianli Machinery Co., Ltd.
Henan Qianli Machinery Co., Ltd, is a professional manufacturer of agricultural machines. With 25 years development, Qianli now covers an area of 11 hectare and has 13 modernized process lines. Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.
1.PARAMETER
| Model | QLN1004 |
| Drive type | 4×4 |
| Technical parameter | |
| Dimension(L×W×H)(mm) | 4280×2085×2925 |
| Wheel base (mm) | 2195 |
| Wheel tread F/R (mm) | 1610/1620~2020 |
| Adjust mothed of wheel tread | Level adjustment |
| Min. ground clearance (mm) | 370 |
| Ballast F/R (KG) | 220/(320,480,640) |
| Engine | |
| Engine type | Vertical ;water cooled; 4-stroke; direct injection |
| Manufacturer | YTO; Yuchai |
| Volume of fuel tank (L) | 150 |
| Rated power (kW) | 73.5 |
| Rate oil consumption rate | ≤2.04 |
| Transmission | |
| Clutch | Single ,dry ,independent ,dual stage |
| Gear box | F16+R8 |
| Speed of PTO (r/min) | 760/1000 |
| Steering system | |
| Steering system type | Hydraulic front wheel steering |
| Working device | |
| Model of suspension mechanism | Rear mounted; 3-point linkage, Category Ⅱ |
| Tilling depth control type | Floating control (positive lifter) |
| Max. lifting force at suspension point 610 mm (kN) | 17.6 |
| Hydraulic output valve | 2 group (multi-way valve) |
| PTO shaft size | Φ38×8 or Φ35×6 or Φ34.67×21 |
| PTO power(kW) | 62.5 |
(1)Famous engine YTO
(2)Dual-hydraulic output
(3)Stable performance tractor
(4)New tractor cheap price

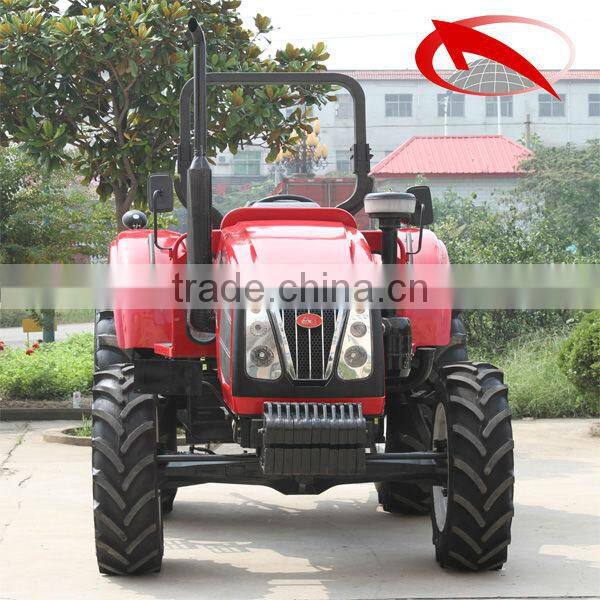

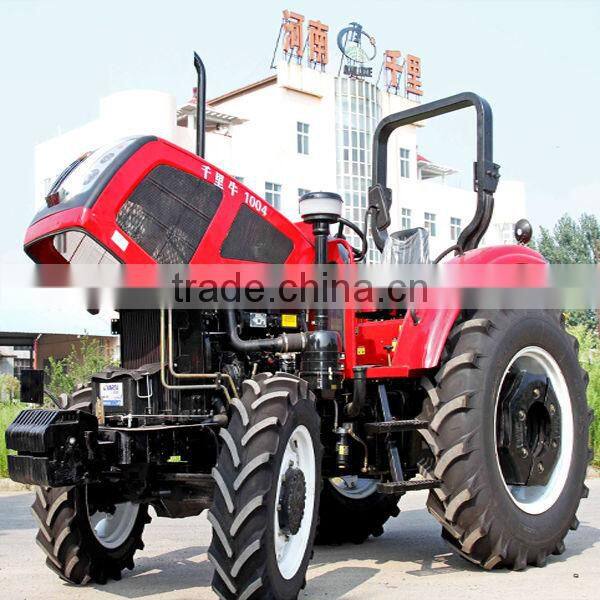

2.QLN1004 4WD 100HP
QLN1004 4WD 100HP
QLN1004 4WD 100HP
3.QLN 1004 4WD 100HP Details
4.QLN’ Production line
5. Visitors from the world
Welcome to visit our factory
6.Kinds of farm equipment
7.Quality guarantee
8.Sales network
With good quality and competitive price, our products have beenexported to Romania,Russia, Ukraine,Tanzania, Congo, Iraq,Thailand, Malaysia,Australia, Venezuela,Chile, etc.
Customer First,
Contact us now!!!
