Specifications

farm tractors
1.Full hydraulic steering
2.Category two 3-point linkage
3.best sincere service

85hp 4wd farm tractors with famous engine YTO



Qianli Company is specialized in Agricultural Equipments Manufacturing!

The main produce are wheel tractors 20hp to 145hp ,walking tractors 8hp to 20hp, and wide

range of farm implements.

We are open to distributorship, and looking forward to establish mutual benefit cooperation with your esteemed company!



1.QLN-854 Specfications





Basic configuration
Model	QLN-850/854
Dimensions	Length×Width×Height(mm)	4280×2085×2925
	Wheel Tread(mm)	Front Wheel(mm)	1610—1820(4WD)         1520—1820(2WD)
		Rear Wheel(mm)	1620—2020
	Min.Ground Clearance(mm)	370—450
Dry Mass	With Cab(kg)	3635(2WD) 3785(4WD)
	Without Cab(kg)	3420(2WD) 3570(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Model	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	62.5KW
	Max. Torsion(N.M)	330
	Rated Speed(r/min)	2300 or 2400
Fuel Tank	Volume(L)	150
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear Box	F16+R8/F16+R8(creeper gear)
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R(2WD)	6.5—20/16.9—34
		F/R(4WD)	11.2—24/16.9—34
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Positive lifter
	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ38,8teeth φ35,6teeth
	PTO Speed(r/min)	540/1000
	Drawbar Type	Fixed Drawbar/Swing Drawbar
Optional configuration
Cab	AC	Heater	Air-brake
Adjustable Seat	Multiple Unit Valve	ROPS	Sunvisor
Double Crush Lifter	Radio	CD Player	Paddy Tyre
Bob-weight	Frontballest	11×20=220kg 20kg/pcs
	Rearballast	2×80=160kg 80kg/pcs
Paddy Tyre	F/R	11.2—24/12.4—24
	F/R(optional)	13.6—28/16.9—34







Product features



1. High adaptability to farming for meshing sleeve gear shift(8+4) or crawling gear(16+8)

  (according to customers' demands), which is matched reasonably;

2. Operating for long time for an increased oil box

3. Higher reliability while operating in the paddy field for a front transaxle;

4. Higher safety while operating for a National-Type-Approval security framework;

5. Operating as a farming machine in various fields and transporting machine for an air brake.

6. Higher reliability for a Power-Take-off equipment which is enhanced;

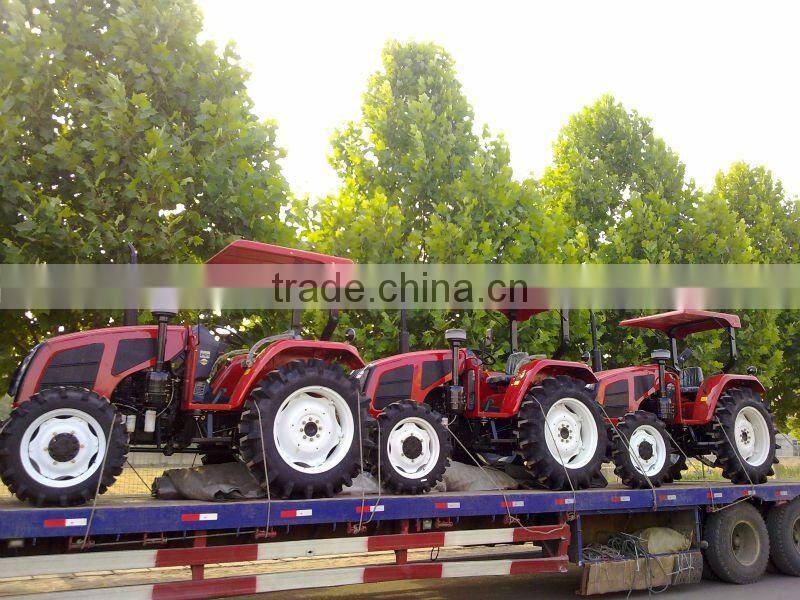

2 .QLN-854 PICTURE with rop





















Our honors and certificates







Our series of products



QLN tractor have over 70 types tractor main in 6 series.





1.30 series 250-354 (from 25hp-35hp 2/4wd)



2.40 series 400-554B (from 40hp-55hp 2/4wd)



3.50 series 550-654 (from 55hp-65hp 2/4wd)



4.80 series 700-854B (from 70hp -85hp 2/4wd)



5.90 series 800-1004 (from 80hp-100hp 2/4wd)



6.100 series 1104-1304 (from 110hp-130hp 4wd)

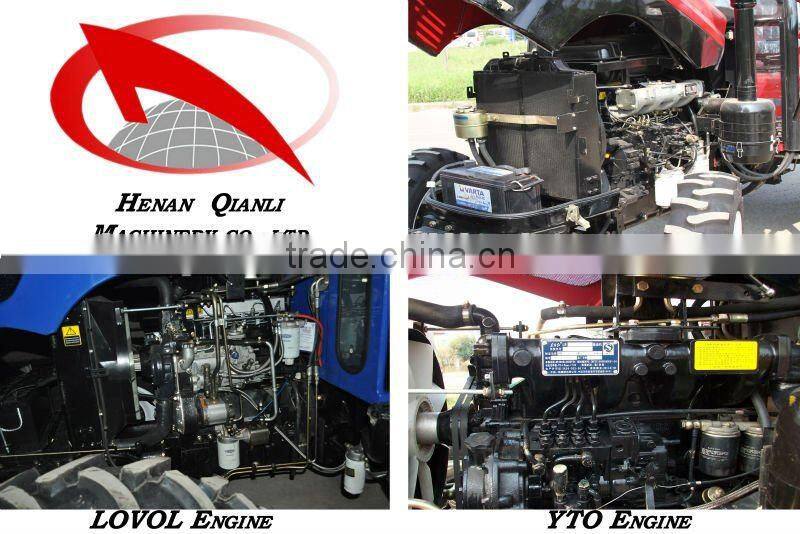

We use famous engine





Our clients





Optional parts we supply







  attention :



QLN is the most popular Chinese tractors for export in China now.



QLN Two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large

 tractive force, low fuel consumption, varied functions, and being easy to operate, wide applications

and reliable operations







Please feel free to contact with us !



Thank you ! Gracias !
