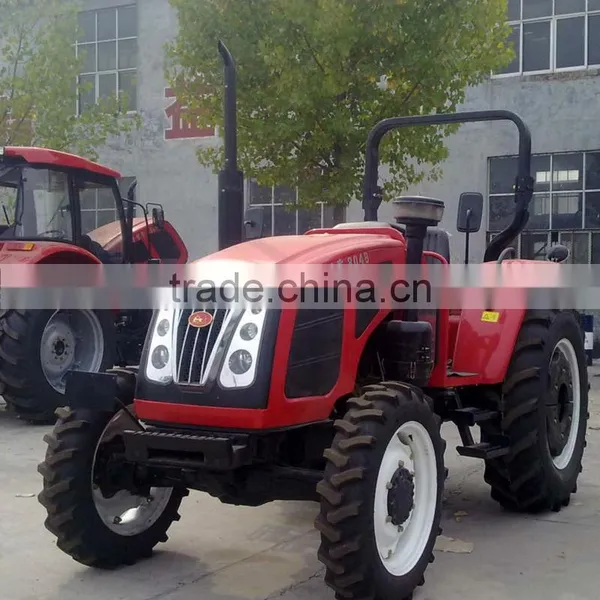

20hp--145hp 4wd/2wd farm equipment for sale tractor

Specifications

20hp--145hp 4wd/2wd farm equipment for sale tractor
1.Engine: YTO/YUCHAI
2.Large PTO Dual-stage clutch
3.Hydraulic steering

       20hp--145hp 4wd/2wd farm equipment for sale tractor

                            TECHNOLOGY CREATING THE FUTURE



Based on agricultural machinery for the benefit of millions peasants



Henan Qianli Machinery—rise in the modernization of agricultural machinery manufacturing base







20hp--145hp 4wd/2wd farm equipment for sale tractor

Specification:



Basic configuration
Model	QLN-850B/854B
Dimensions	Length×Width×Height(mm)	4010×1915×2750
	Wheel Tread(mm)	Front Wheel(mm)	1400(2WD)1460(4WD)
		Rear Wheel(mm)	1530—1830(2WD 4WD)
	Min.Ground Clearance(mm)	430(2WD) 340(4WD)
Dry Mass	With Cab(kg)	2800(2WD)     2880(4WD)
	Without Cab(kg)	2585(2WD)     2665(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Mode	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	59
	Max. Torsion(N.M)	320
	Rated Speed(r/min)	2300(YCD4J11T,LR4B5,YC4A100),2200(YT4B,YC4A90)
Fuel Tank	Volume(L)	78
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear box	F8+R2
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R	6.5-20/14.9-30
		F/R(optional)	8.3-24/14.9-30
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Partial separated Lifter
	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ35,6teeth / φ38,8teeth
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration
Cab	AC	Heater	Airbrake
Adjustable Comfort Seat	Multiple Unit Valve	ROPS	Sunvisor
Double Crush Lifter	Radio	CD Player	Trailer
Bob-weight	Front BallAst	11×20=220kg 20kg/pcs
	Rear Ballast	2×80=160kg 80kg/pcs
Paddy Tyre	F/R	6.5—20/11—32
	F/R(optional)	8.3—24/11—32

























20hp--145hp 4wd/2wd farm equipment for sale tractor

Details:

1- Famous brand: Qianli Niu brand with long history and good reputation in China

2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system

3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance

4- High adaptability: matches all kinds of agricultural implements

5- Diverse gear combinations: creeping shift and shuttle shift

6- Comfortable operation: full hydraulic system







20hp--145hp 4wd/2wd farm equipment for sale tractor
