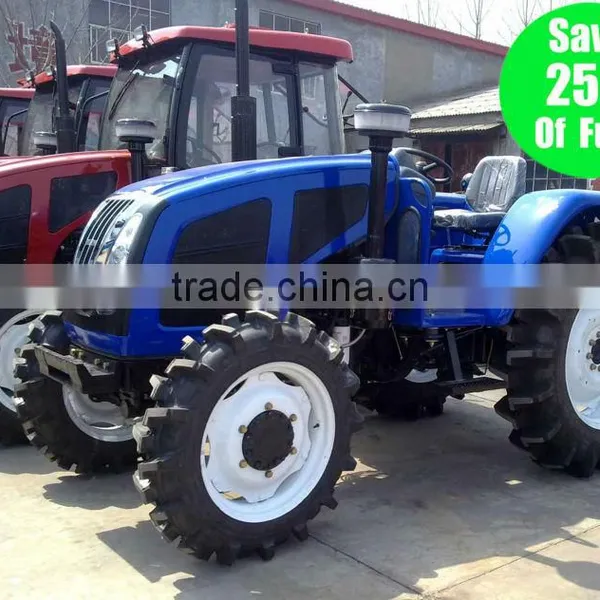

QLN-800B/804B farm tractor with cab 4X4

Specifications

QLN-800B/804B farm tractor with cab 4X4
1.Engine: YTO/YUCHAI
2.Large PTO Dual-stage clutch
3.Hydraulic steering

                QLN-800B/804B farm tractor with cab 4×4

                            TECHNOLOGY CREATING THE FUTURE



Based on agricultural machinery for the benefit of millions peasants



Henan Qianli Machinery—rise in the modernization of agricultural machinery manufacturing base







QLN-800B/804B farm tractor with cab 4×4

Specification:



Basic configuration
Model	QLN-850B/854B
Dimensions	Length×Width×Height(mm)	4010×1915×2750
	Wheel Tread(mm)	Front Wheel(mm)	1400(2WD)1460(4WD)
		Rear Wheel(mm)	1530—1830(2WD 4WD)
	Min.Ground Clearance(mm)	430(2WD) 340(4WD)
Dry Mass	With Cab(kg)	2800(2WD)     2880(4WD)
	Without Cab(kg)	2585(2WD)     2665(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Mode	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	59
	Max. Torsion(N.M)	320
	Rated Speed(r/min)	2300(YCD4J11T,LR4B5,YC4A100),2200(YT4B,YC4A90)
Fuel Tank	Volume(L)	78
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear box	F8+R2
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R	6.5-20/14.9-30
		F/R(optional)	8.3-24/14.9-30
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Partial separated Lifter
	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ35,6teeth / φ38,8teeth
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration
Cab	AC	Heater	Airbrake
Adjustable Comfort Seat	Multiple Unit Valve	ROPS	Sunvisor
Double Crush Lifter	Radio	CD Player	Trailer
Bob-weight	Front BallAst	11×20=220kg 20kg/pcs
	Rear Ballast	2×80=160kg 80kg/pcs
Paddy Tyre	F/R	6.5—20/11—32
	F/R(optional)	8.3—24/11—32

























QLN-800B/804B farm tractor with cab 4×4

Details:

1- Famous brand: Qianli Niu brand with long history and good reputation in China

2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system

3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance

4- High adaptability: matches all kinds of agricultural implements

5- Diverse gear combinations: creeping shift and shuttle shift

6- Comfortable operation: full hydraulic system
