70-85HP farmtrac tractors;CHEAP FARM TRACTOR

Specifications

1.70hp 4wd tractor
2.Famous engine like YTO,Lovol,etc
3.Reinforced PTO
4.70-85HP farmtrac tractors



Welcome to Qianli Machinery Co., Ltd.

Henan Qianli Machinery Co., Ltd, is a professional manufacturer of agricultural machines. With 25 years development, Qianli now covers an area of 11 hectare and has 13 modernized process lines.  Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.



 1.PARAMETER





(1)70hp 4wd tractor
(2)Famous engine like YTO,Lovol,etc
(3)Reinforced PTO,hi-reliability
(4)70-85HP farmtrac tractors







Model	QLN704 (70HP)
Drive type	4×4
Technical parameter
Dimension(L×W×H)(mm)	4010×1915×2750
Wheel base (mm)	2236
Wheel tread F/R (mm)	1460/1530~1830
Adjust mothed of wheel tread	Unadjustment/Level adjustment
Min. ground clearance (mm)	340
Ballast F/R (KG)	220/480
Engine
Engine type	Vertical, water cooled, 4-stroke,   direct injection
Manufacturer	YTO; Yuchai
Volume of fuel tank (L)	78
Rated power (kW)	51.5
Rate oil consumption rate	≤2.04
Transmission
Clutch	Single wet duel-stage
Gear box	F8+R2
Speed of PTO (r/min)	540/760
Steering system
Steering system type	Mechanical feedback hydrostatic steering
Working device
Model of suspension mechanism	Rear mounted,3-point linkage, categoryⅠor Ⅱ
Tilling depth control type	Floating control
Max. lifting force at suspension point 610 mm (kN)	12.4
Hydraulic output valve	A pair or 2-pair (multi-way valve)
PTO shaft size	Φ38×8

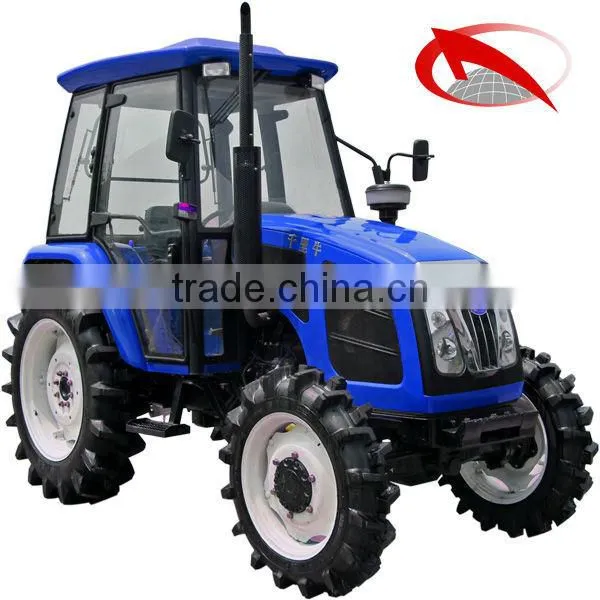

2.Tractors with cabin









70HP tractor with ROPS







QLN 704 4wd with paddy tyres







Front face of tractor







The backside of the tractor







QLN 80 series tractors









QLN tractor have over 70 types tractor main in 6 series.Let me show you below:



1.35 series 250-354 (from 25hp-35hp 2/4wd)



2.40 series 400-554B (from 40hp-55hp 2/4wd)



3.50 series 550-654 (from 55hp-65hp 2/4wd)



4.80B series 700-854B (from 70hp -85hp 2/4wd)



5.80A series 800-1004 (from 80hp-100hp 2/4wd)



6.100 series 1104-1304 (from 110hp-130hp 4wd)







Comprehensive product series make your purchasing easily ! ! !















3.More Details













4.QLN’ Production line









5. Visitors from the world



                       Welcome to visit our factory





6.Kinds of farm equipment









7.Quality guarantee











8.Sales network





With good quality and competitive price, our products have beenexported to Romania,Russia, Ukraine,Tanzania, Congo, Iraq,Thailand, Malaysia,Australia, Venezuela,Chile, etc.







Customer First,

                Contact us now!!!
