QLN800B farm wheel tractor chinese agricutural farming machine

Specifications

agricutural farming machine:
with YTO/YUCHAI engine
Gear type:F8+R2
PTO speed:540/760r/min
Rated power:.59

 QLN800B 2WD Farm  wheel tractor agricutural farming machine



1. High adaptability to farming for meshing sleeve gear shift(8+4) or crawling gear(16+8) (according to your demands)



2. Operating for long time for an increased oil box



3. Higher reliability while operating in the paddy field for a front transaxle, which is perfectly closed;



4. Higher safety while operating for a National-Type-Approval security framework;



5. Operating as a farming machine in various fields and transporting machine for an air brake



6. Higher reliability for a Power-Take-off equipment which is enhanced;



7. High reliability and strong power for their engines

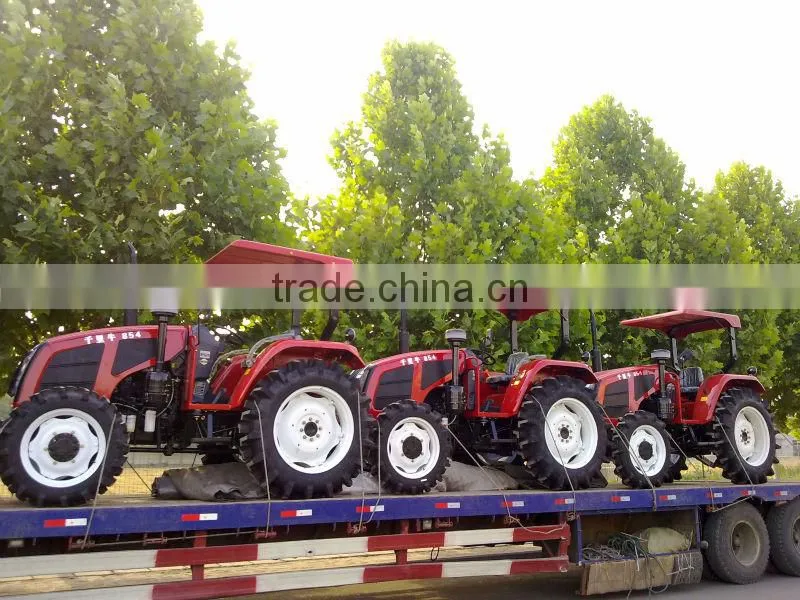

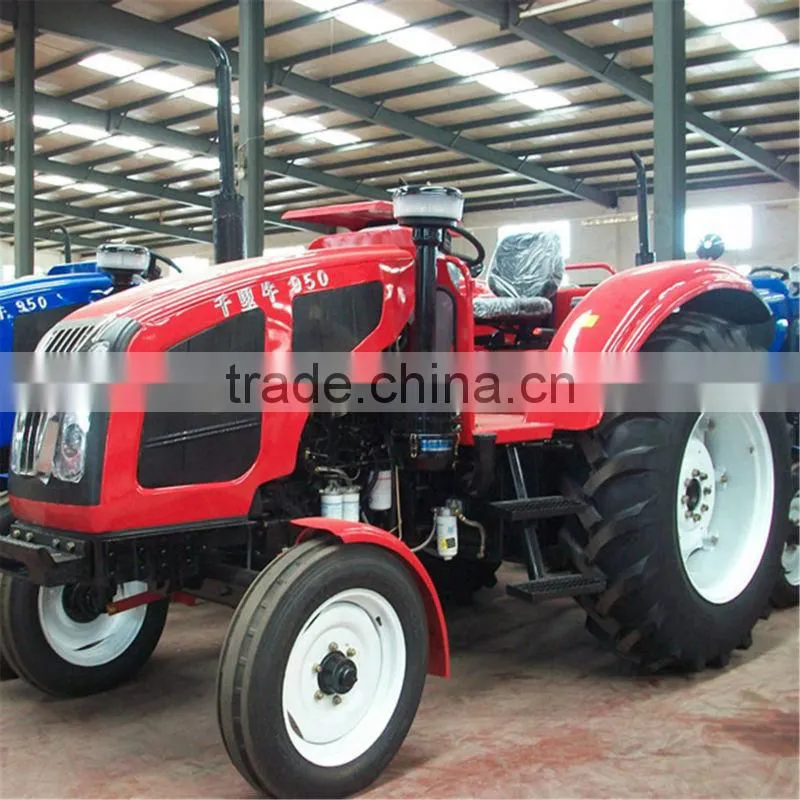

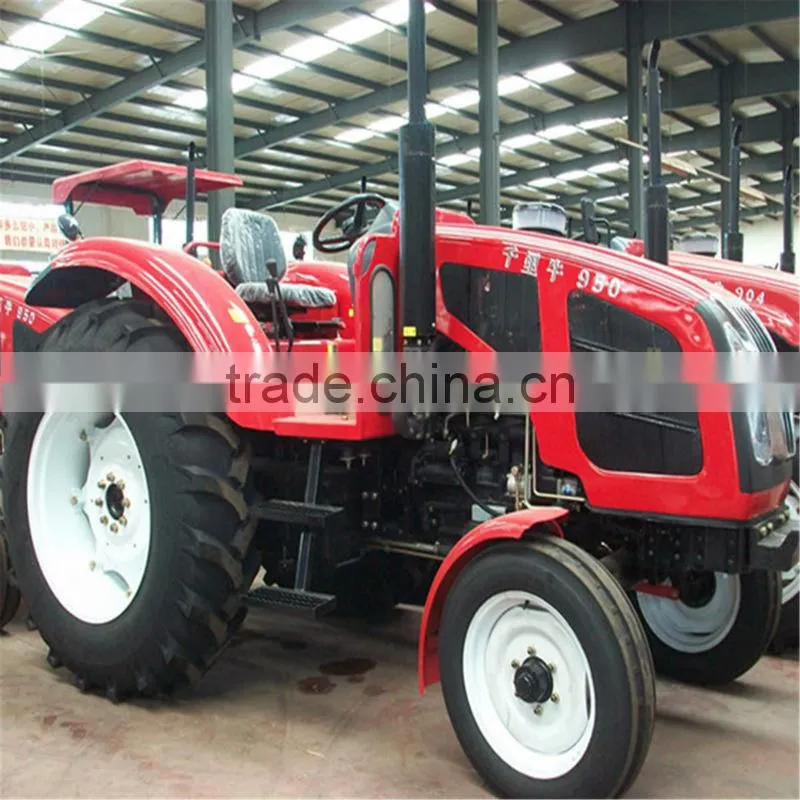

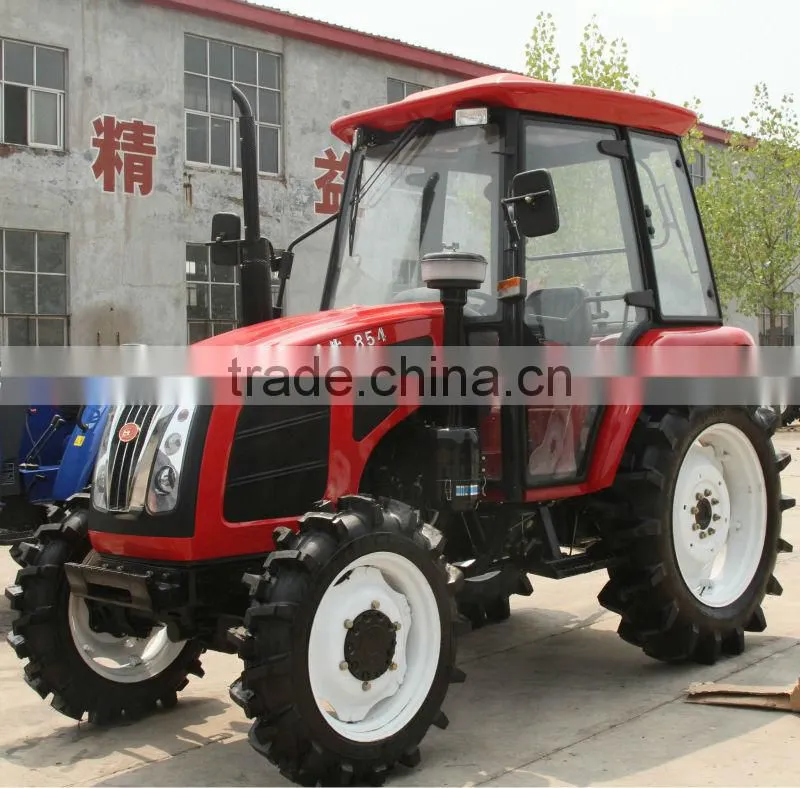

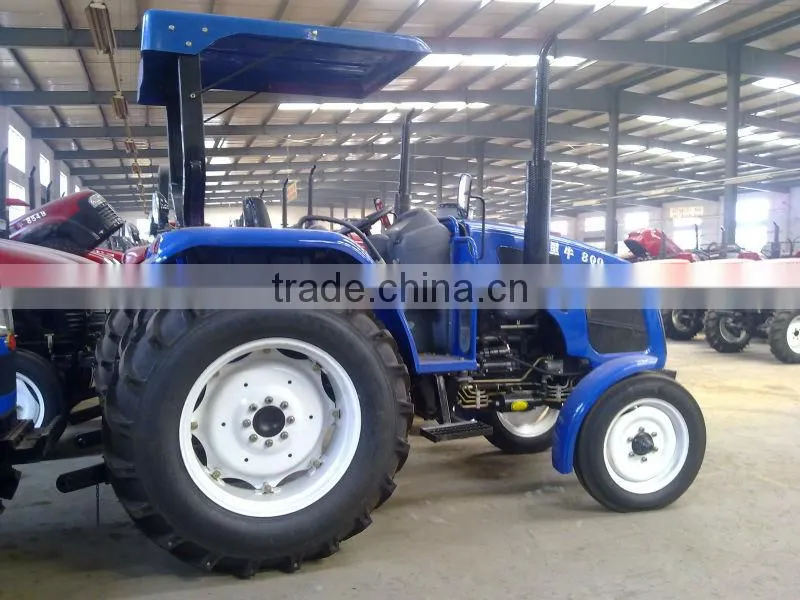

products pictures







technical parameters



Model	QLN-800B/804B
Dimensions	Length×Width×Height(mm)	4010×1915×2750
	Wheel Tread(mm)	Front Wheel(mm)	1400(4WD)                 1460(2WD)
		Rear Wheel(mm)	1530—1830
	Min.Ground Clearance(mm)	430(2WD) 340(4WD)
Dry Mass	With Cab(kg)	2800(2WD) 2880(4WD)
	Without Cab(kg)	2585(2WD) 2665(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Model	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	59KW
	Max. Torsion(N.M)	320
	Rated Speed(r/min)	2300(YCD4J11T,LR4B5,YC4A100),2200(YT4B,YC4A90)
Fuel Tank	Volume(L)	78
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear Box	F8+R2
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R(2WD)	6.5—20/14.9—30
		F/R(4WD)	8.3—24/14.9—34
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Positive lifter
	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ38,8teeth φ35,6teeth
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration
Cab	AC	Heater	Air-brake
Adjustable Seat	Multiple Unit Valve	ROPS	Sunvisor
Double Crush Lifter	Radio	CD Player	Paddy Tyre
Bob-weight	Frontballest	11×20=220kg 20kg/pcs
	Rearballast	2×80=160kg 80kg/pcs
Paddy Tyre	F/R	6.5—20/11—32
	F/R(optional)	8.3—24/11—32





Main devices	Optional devices
•4 cylinder diesel engine	Normal fan cab
•Gearbox: ; F16+R8 (with creeper)	Luxury cab
•2 Wheel-drive	Roll bar
•Hydraulic power steering	Sunshade
•Hydraulic Output Valve	Air-conditioning
•Differential lock	Heater
•Dual speed PTO	Lovol engine
•Dual clutch, independent operation	Front Counter weight (220kg)
•Partial separated hydraulic hitch	Rear Counter weight (160kg/layer, max 4 layer)
•Draft positional adjustable	Air-brake
•Category Ⅱ Rear-mounted three-point linkage	Hi-pressure devices
	Paddy tire
	Swing drawbar



QLN tractor have over 70 types tractor mainly in 6 series



1.30 series   250-354 (from 25hp-35hp 2/4wd)



2.40 series   400-554B (from 40hp-55hp 2/4wd)





3.50 series   550-654 (from 55hp-65hp 2/4wd)



4.80 series   700-854B (from 70hp -85hp 2/4wd)





5.90 series   800-1004 (from 80hp-100hp 2/4wd)





6.100 series  1104-1304 (from 110hp-130hp 4wd)











matched implements







our honor



our company

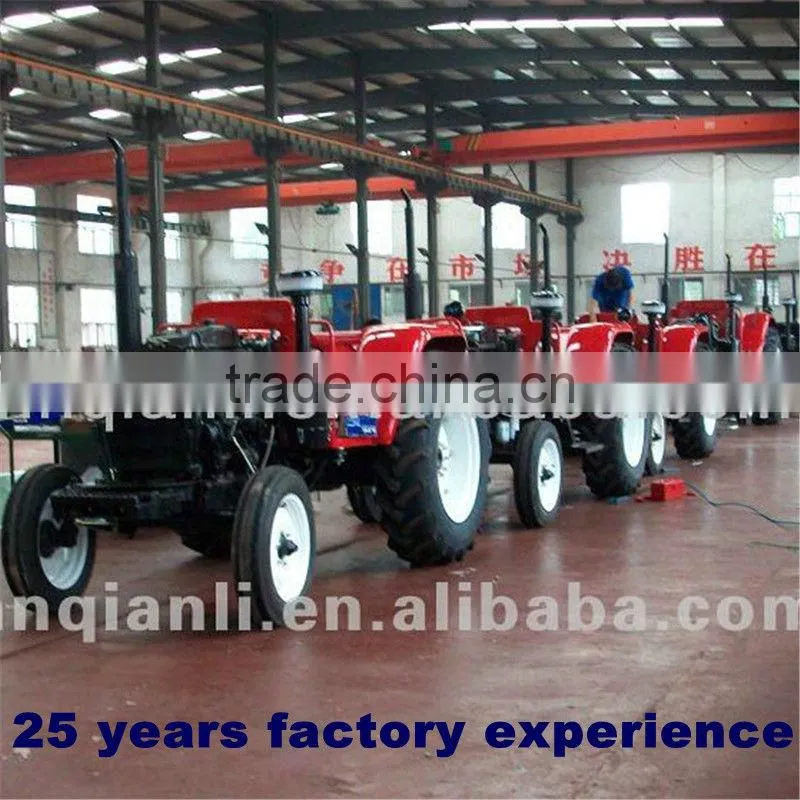

Henan Qianli Machinery Co. Ltd has 25 years professional manufacturer.

Qianli now covers an area of 11 hectare and has 13 modernized process lines.

Our products have been exported to many other countries,

Such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.







our clients









Please dO not hesitate tO contact us, if you are satisfied with Our products !!!



lOOking forward tO cooperating with yOu !!!
