Specifications
1. E-MARK certificate2. High agricultural adaptability
3. Reinforced PTO, hi-reliability
4. Disel engine famous tractor

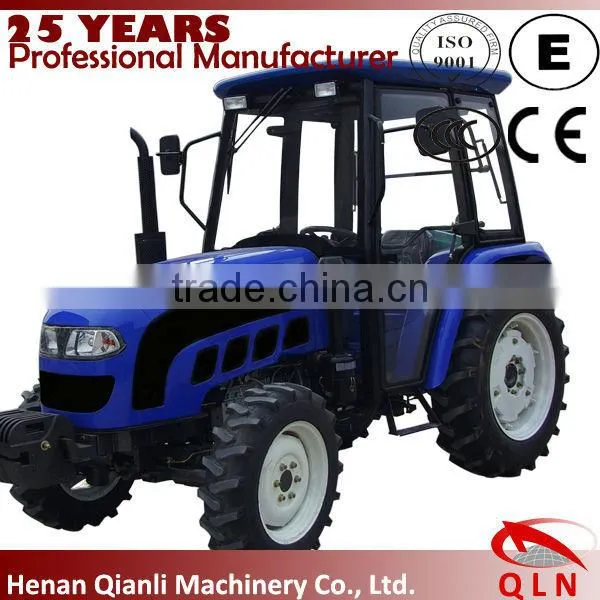

QLN-504 50HP High Grade Tractor
Hot Sale in European Market!!!!
50HP QLN TRACTOR
QLN-504 tractor (50HP) represents the new generation of private sector manufacturing in China. A rugged machine built for commercial reliability and endurance.
The machines are simple to operate with operator comfort and safety given the highest priority. The simple easy to access lever system provides the optimum driving experience for the operator. The machine has effortless power steering and very comfortable seating.
The steel construction bonnet and guards a built to last and handle the knocks and bruises. Combine this with the reliable long stroke high torque 4 cylinder easy start diesel engine and you have a machine that is truly a pleasure to work with. Dual hydraulic pumps ensure you always have the hydraulic flow required for steering and powered implements.
1. CE/E-mark and ISO certificate
2. Four-wheel-drive, a well sealed from drive axle
3. Non-maintenance of battery
4. Equipped with famous engine, lower oil consumption, high torque reservoir, excellent starting
5. Excellent working with draft control lever and position control lever, hydraulic steering system.
6. ROPS, canopy, enclosed cabin, multi-way hydraulic valve etc. can be chosen according to working request.
PRODUCTS:
1. E-MARK certificate
2. High agricultural adaptability
3. Reinforced PTO, hi-reliability
4. Disel engine famous tractor
Model | QLN-504 | ||
Drive Type | 4×4 | ||
Maximum power of PTO(kW) | 27.6 | ||
Minimum operation weight (kg) | 2220(without cab)/2400(with cab) | ||
Minimum turning radius (mm) | 3800±300 | ||
Dimensions | Length (including rear suspension) (mm) | 3910 | |
Width (mm) | 1635 | ||
Height (to the top of muffler) (mm) | 2160 | ||
Wheelbase (mm) | 2030 | ||
Track | Front wheel (mm) | 1280 | |
Rear wheel (mm) | 1310(adjustable) | ||
Structure weight(kg) | 2190(without cab)/2390(with cab) | ||
Engine | Model | A498BT1 | |
Type | 4 Cylinder, Vertical, water cooled, 4 stroke | ||
Cylinder diameter× stroke (mm) | 98×105 | ||
Rated power(kW) | 36.8 | ||
Rated rotary speed (r/min) | 2400 | ||
Transmission | Clutch model | dry double action clutch | |
Differential lock | closed,4 planetary gear | ||
Shift | 12F+12R | ||
Speed (Km/h) | Forward | 2.46-32.73 | |
Rear | 2.15—28.69 | ||
Hydraulic system | Type | partial separated | |
Hydraulic output valve | 1 pair or 2-pair | ||
System pressure (MPa) | 18 | ||
3-point suspension | category II | ||
Function | Load control, position control, load and position individual control | ||
Maximum lifting force at 610mm behind suspending point (KN) | >10.2 | ||
Steering type | Front wheel hydraulic steering | ||
PTO–Rear | Specification | Φ35×6 | |
Rotary speed (r/min) | 540/760 | ||
Traction | Rated traction force (KN) | 11.5 | |
Type | Swing drawbar | ||
Distance to the ground (mm) | 325 | ||
Tyre | front wheel /rear wheel | F8.3-20 / R12.4-28 | |
Oil filling capacity | Fuel tank (L) | 43 | |
Oil sump tank (L) | 7 | ||
Hydraulic and steering oil (L) | 0.8 | ||
Oil for transmission system (L) | 20 | ||
