CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor

CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor thumbnail-1
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor thumbnail-2
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor thumbnail-3
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor thumbnail-4
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor thumbnail-5
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor photo-1
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor photo-2
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor photo-3
CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor photo-4

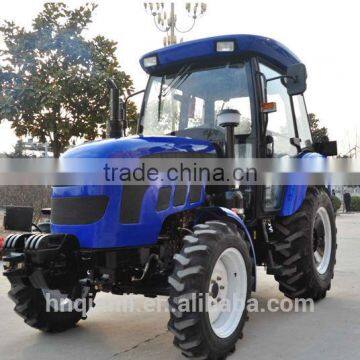

CE E-mark EEC Certificate QLN 50hp 4wd Farm Tractor photo-5
US$ 9,000 - 12,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Wheel Tractor, Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Qianli Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Wheel Tractor, Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD/2WD
Power(W) 36.8
Certificate CE
Brand Name QLN
Model Number QLN-504 tractor
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.50hp 4wd farm tractor
2. e-mark EEC certificate
3. EU iii engine
4. Reinforced PTO, hi-reliability

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

Hot Sale in European Market!!!!

50HP QLN TRACTOR



QLN-504 farming tractor (50HP) represents the new generation of private sector manufacturing in China. A rugged machine built for commercial reliability and endurance.

The machines are simple to operate with operator comfort and safety given the highest priority. The simple easy to access lever system provides the optimum driving experience for the operator. The machine has effortless power steering and very comfortable seating.

The steel construction bonnet and guards a built to last and handle the knocks and bruises. Combine this with the reliable long stroke high torque 4 cylinder easy start diesel engine and you have a machine that is truly a pleasure to work with. Dual hydraulic pumps ensure you always have the hydraulic flow required for steering and powered implements.

QLN 50hp tractor

CE e-mark EEC certificate QLN 50hp 4wd farm tractor



QLN CE/EEC 50HP TRACTOR

1. CE/e-mark/EEC and ISO certificate

2. EU III engine, high qulity.

2. Four-wheel-drive, a well sealed from drive axle

3. Non-maintenance of battery

4. Equipped with famous engine, lower oil consumption, high torque reservoir, excellent starting

5. Excellent working with draft control lever and position control lever, hydraulic steering system.

6. ROPS, canopy, enclosed cabin, multi-way hydraulic valve etc. can be chosen according to working request.

7. QLN 50hp tractor



PRODUCTS:

QLN CE/EEC 50HP TRACTOR

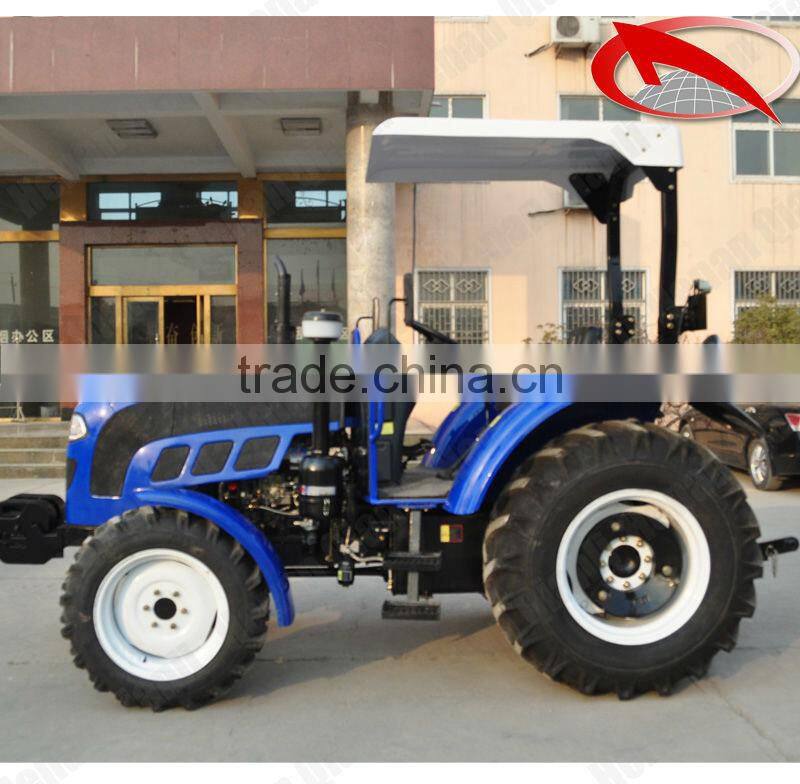

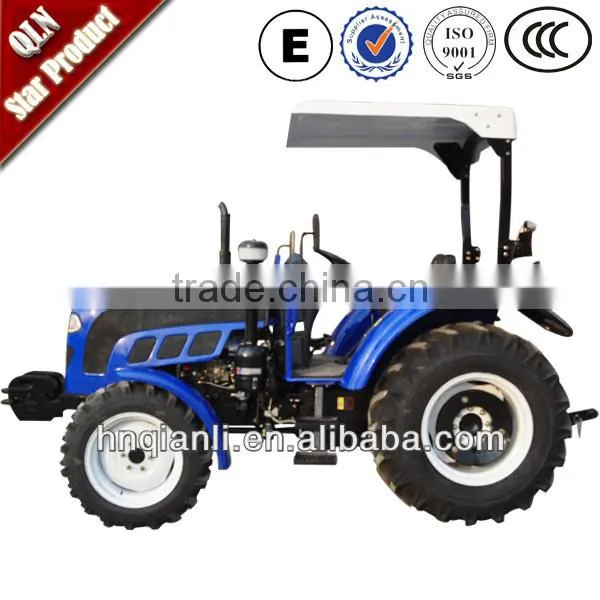

Tractor with sunshade/sunvisior

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

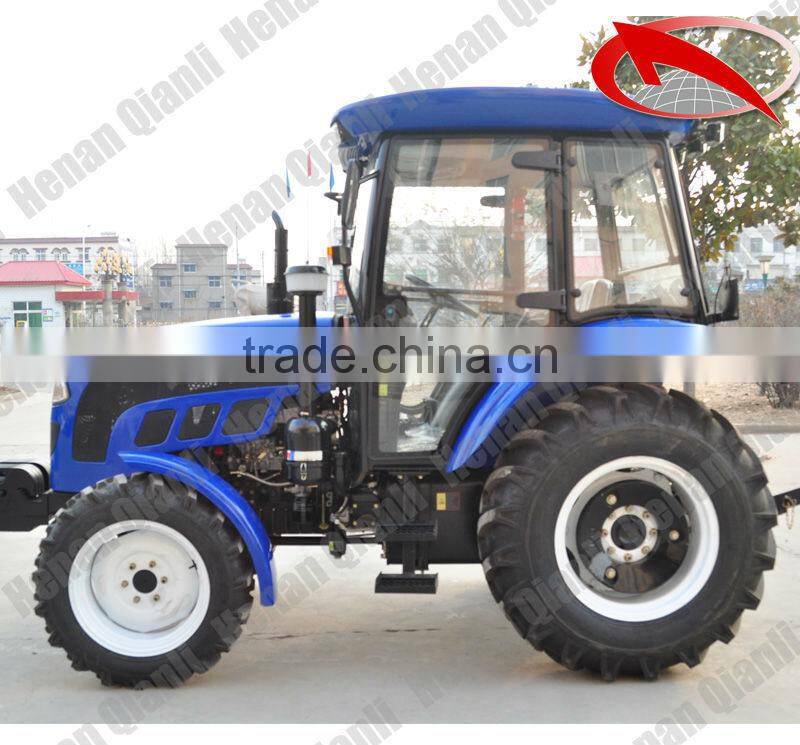

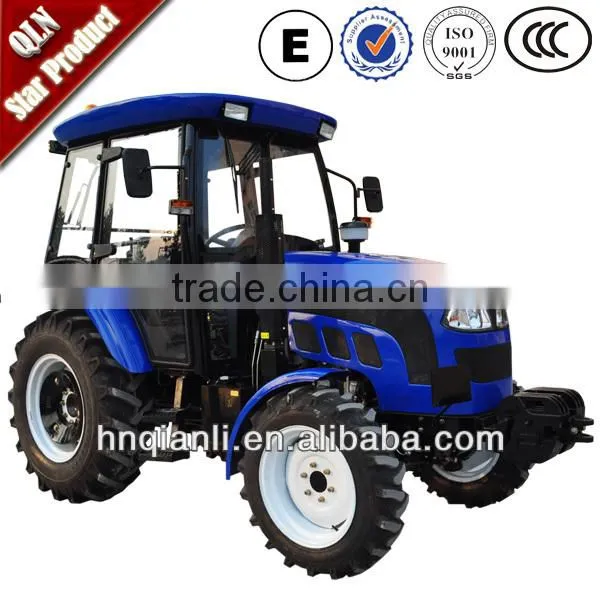

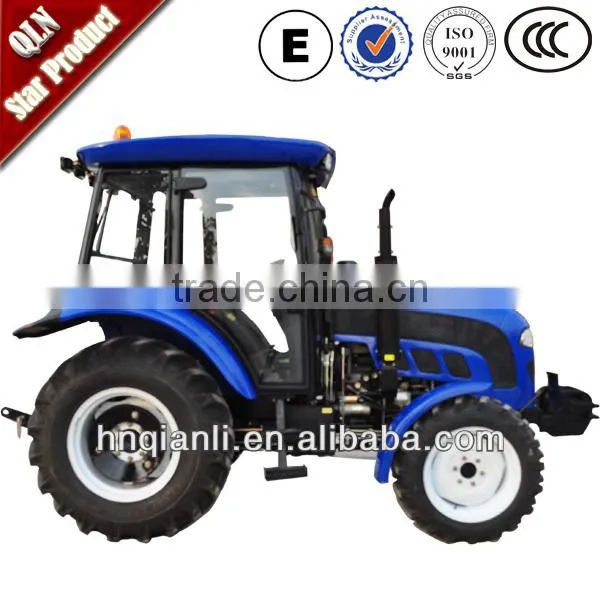

Tractor with cabin

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

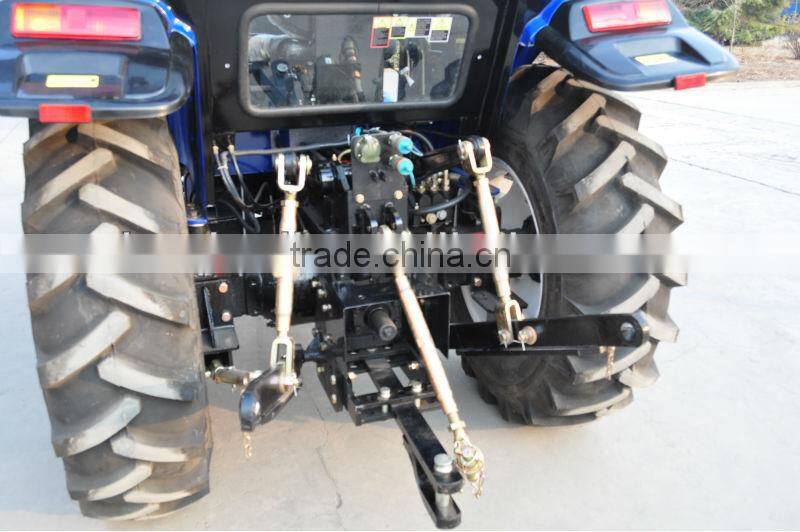

One pair hydraulic output; Swing drawbar; 3-points linkage

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN CE/EEC 50HP TRACTOR

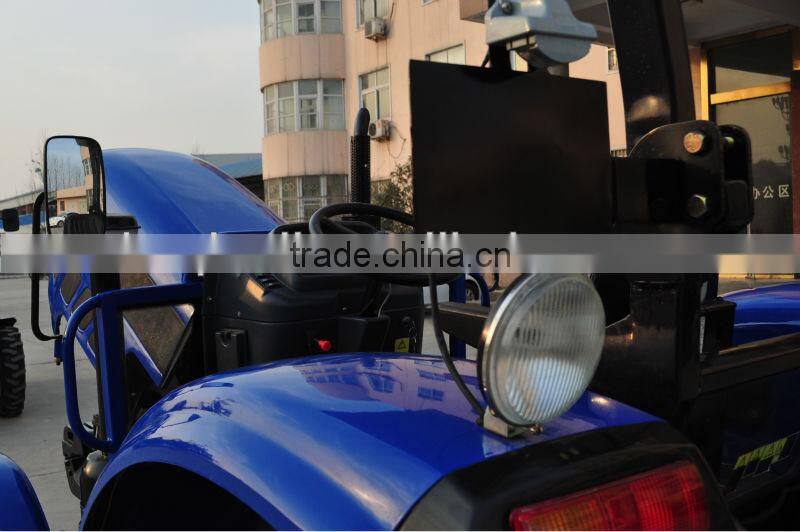

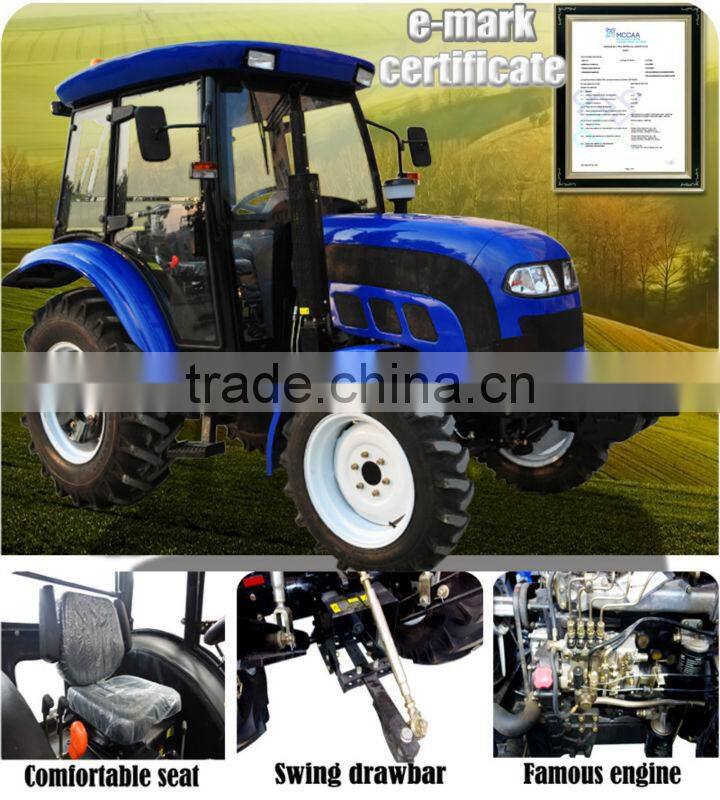

License plate frame; Warning light

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN CE/EEC 50HP TRACTOR

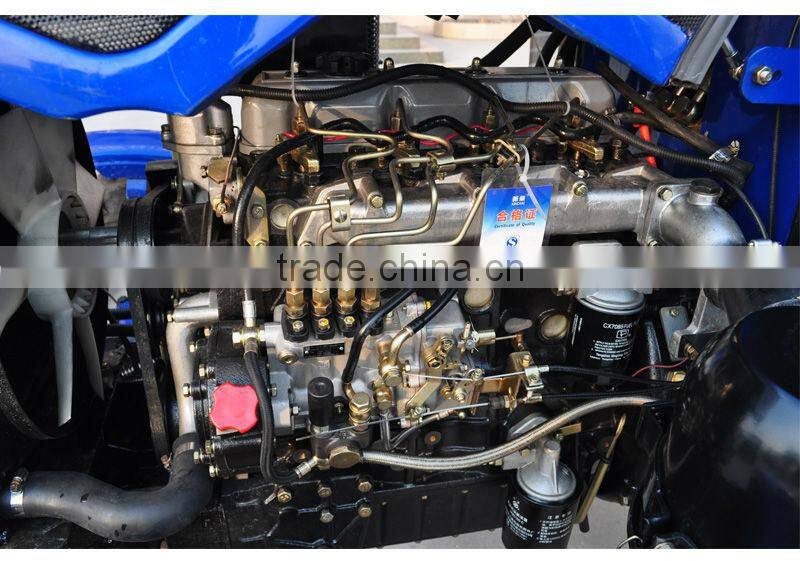

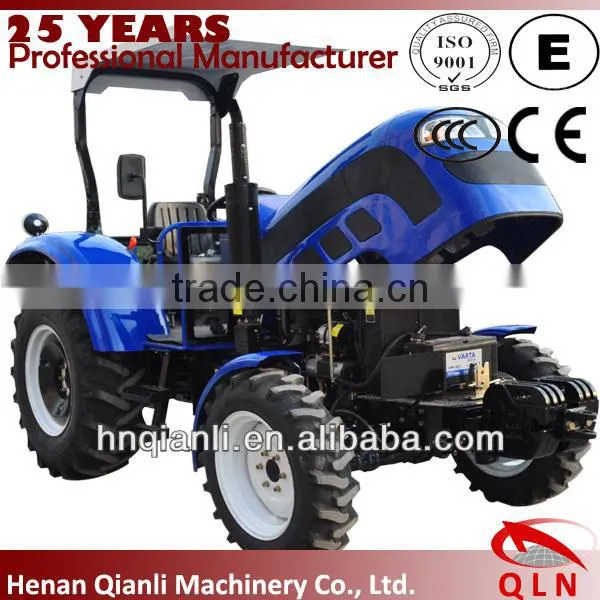

EU III famous engine

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN CE/EEC 50HP TRACTOR

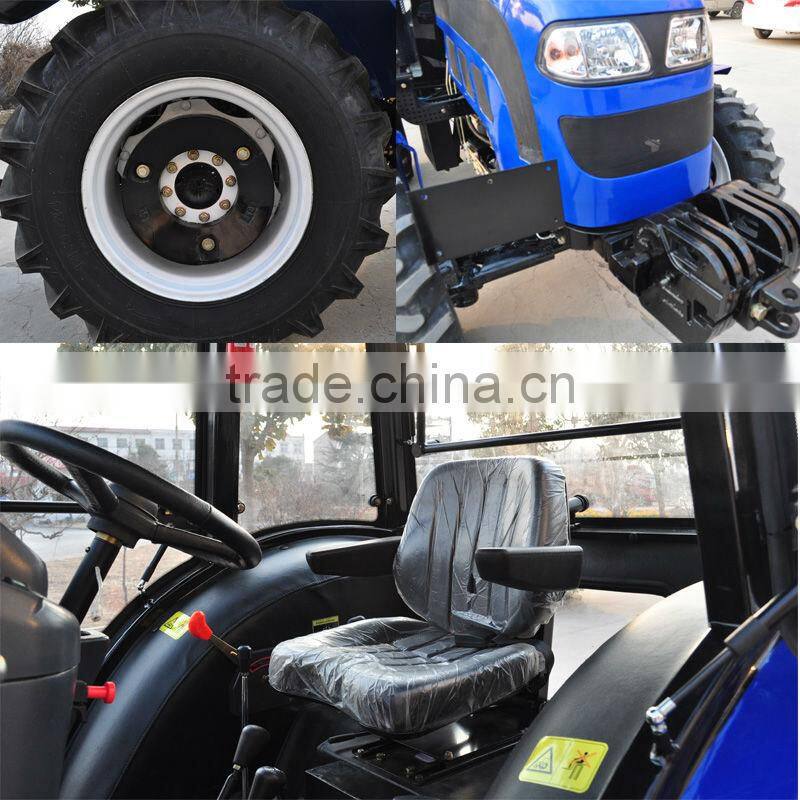

Front and rear ballast;

Luxurious cabin; Comfortable driving experience.

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN CE/EEC 50HP TRACTOR

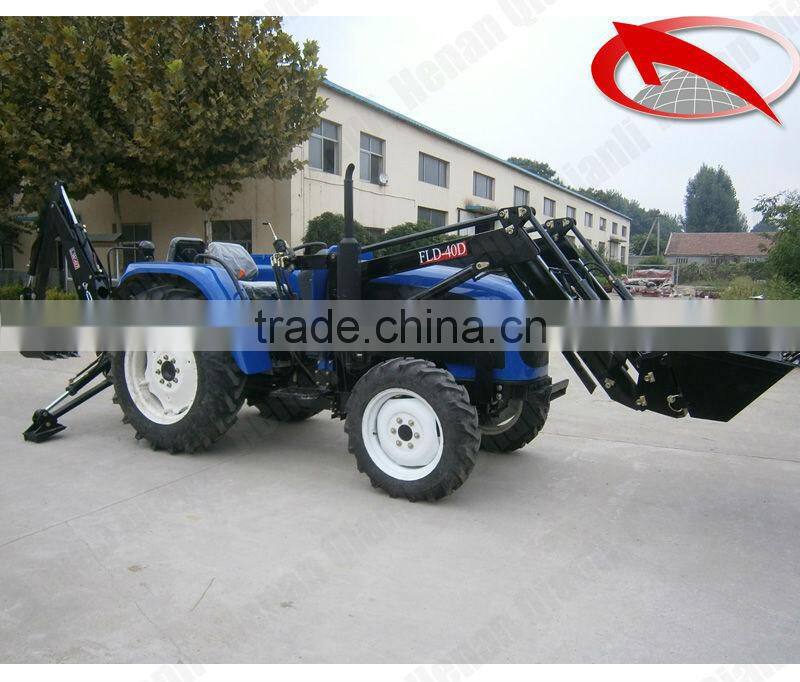

Cooperate with kinds of farm equipments,make your farm work more efficient.

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN 50hp tractor
1. e-mark EEC certificate
2. EU iii engine
3. Reinforced PTO, hi-reliability



Model

QLN-504

Drive Type

4×4

Maximum power of PTO(kW)

27.6

Minimum operation weight (kg)

2220(without cab)/2400(with cab)

Minimum turning radius (mm)

3800±300

Dimensions

Length (including rear suspension) (mm)

3910

Width (mm)

1635

Height (to the top of muffler) (mm)

2160

Wheelbase (mm)

2030

Track

Front wheel (mm)

1280

Rear wheel (mm)

1310(adjustable)

Structure weight(kg)

2190(without cab)/2390(with cab)

Engine

Model

A498BT1

Type

4 Cylinder, Vertical, water cooled, 4 stroke

Cylinder diameter× stroke (mm)

98×105

Rated power(kW)

36.8

Rated rotary speed (r/min)

2400

Transmission

Clutch model

dry double action clutch

Differential lock

closed,4 planetary gear

Shift

12F+12R

Speed (Km/h)

Forward

2.46-32.73

Rear

2.15—28.69

Hydraulic system

Type

partial separated

Hydraulic output valve

1 pair or 2-pair

System pressure (MPa)

18

3-point suspension

category II

Function

Load control, position control, load and position individual control

Maximum lifting force at 610mm behind suspending point (KN)

>10.2

Steering type

Front wheel hydraulic steering

PTO–Rear

Specification

Φ35×6

Rotary speed (r/min)

540/760

Traction

Rated traction force (KN)

11.5

Type

Swing drawbar

Distance to the ground (mm)

325

Tyre

front wheel /rear wheel

F8.3-20  / R12.4-28

Oil filling capacity

Fuel tank (L)

43

Oil sump tank (L)

7

Hydraulic and steering oil (L)

0.8

Oil for transmission system (L)

20





FARM EQUIPMENTS



QLN CE/EEC 50HP TRACTOR

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

QLN CE/EEC 50HP TRACTOR



EXHIBITION:

CE e-mark EEC certificate QLN 50hp 4wd farm tractor

CONTACT ME, LET'S TALK DETAILS!

QLN CE/EEC 50HP TRACTOR

CE e-mark EEC certificate QLN 50hp 4wd farm tractor
