CE tractor 50hp function uses four wheel tractor

Specifications

four wheel tractor
1.CE and E-mark
2.DVD,AC optional
3.Sincere service
4.One year guarantee

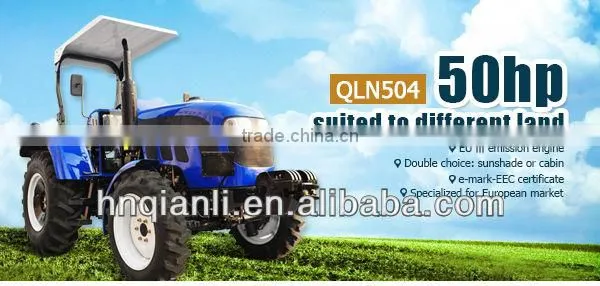

 CE tractor 50hp function uses four wheel tractor

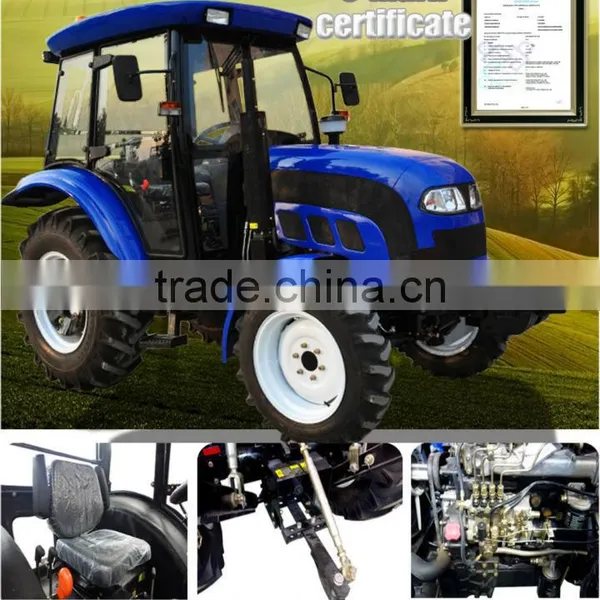

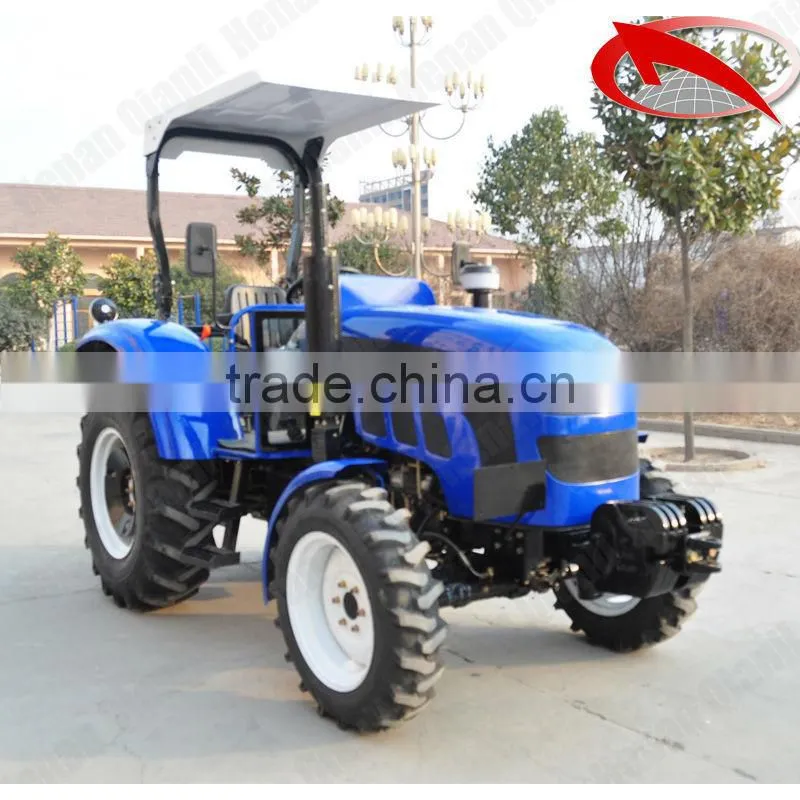

Pictures of 50hp four wheel tractor





2.Parameters of QLN504 four wheel farm tractors



Basic configuration of 50hp four wheel tractor
Model	QLN-500A/504A
Dimensions	Length×Width×Height(mm)	3980×1635×2150
	Wheel Tread(mm)	Front Wheel(mm)	1200—1500(4WD)         1400(2WD)
		Rear Wheel(mm)	1300—1600
	Min.Ground Clearance(mm)	325
Dry Mass	With Cab(kg)	2140(2WD) 2370(4WD)
	Without Cab(kg)	1960(2WD) 2190(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Model	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	36.8KW
	Max. Torsion(N.M)	194
	Rated Speed(r/min)	2200(YCD4J11T-65),2300(YT4A2-23)
Fuel Tank	Volume(L)	43
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear Box	F12+R12
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R(2WD)	6.0—16/12.4—28
		F/R(4WD)	8.3—20/12.4—28
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Partial seperated lifter
	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ38,8teeth φ35,6teeth
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration for 50hp four wheel tractor
Cab	AC	Heater	Air-brake
Adjustable Seat	Multiple Unit Valve	ROPS	Sunvisor
Radio
Bob-weight	Frontballest	8×13=104kg 13kg/pcs
	Rearballast	2×80=160kg 80kg/pcs
Paddy Tyre	Front Tyre	8.3—20
	Rear Tyre	12.4/11—28



3.Advantages of QLN504 four wheel tractors



1) We certificated for the whole parts of the tractor to ensure the best quality ever.



2) The engine can actually arrives at 55HP,the chair is very comfortable,you will not tired after 6 hours work.



3) We use EUIIIleveled engine,XINCHAI engine,powerful,low fuel consumption and emission economy.



4) Every single parts like every screw,we choose the very high quality one.



5) This price is include :Front ballast,Rear ballast,ROP,Swing draw bar.



6) Hydraulic Output Valve,Cab,Sunroof,Air-brake are optional

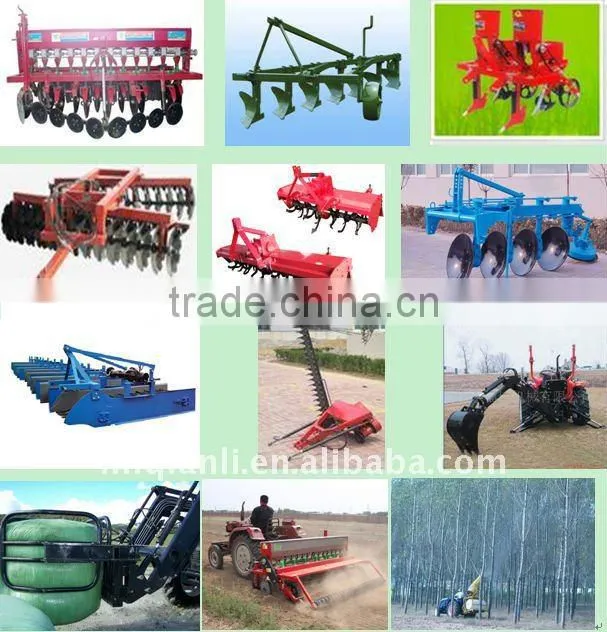

4. Optional farm implemens for 50hp four wheel farm tractor

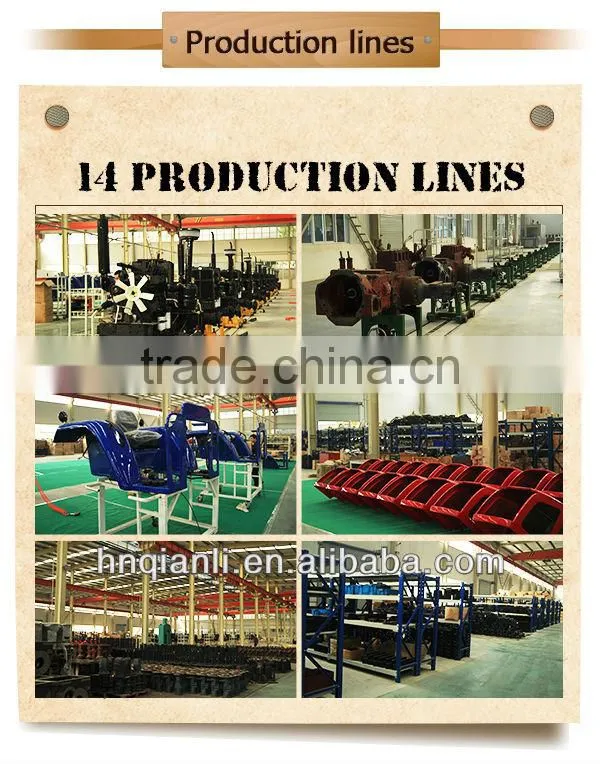

5.Brief introduction of our company







Other tractors we manufactures from 25-130hp wheel tractors and certifications!













Welcome to contact with us!





If you are interested in our products,please feel free to contact with us!  Thank you !
