Specifications
1.Famous engine2.Hydraulic steering
3.ISO2008:9001
4.30HP china cheap tractor
Best Chinese Brand mini Tractors and Matched Implements
| Specifications | |||||
| Basic configuration | |||||
| Model | QLN-300/304 | ||||
| Dimensions | Length×Width×Height(mm) | 3200×1500×1880 | |||
| Wheel Tread(mm) | Front Wheel(mm) | 1065 | |||
| Rear Wheel(mm) | 1250-1200 | ||||
| Min.Ground Clearance(mm) | 380(4WD) 330(2WD) | ||||
| Dry Mass | Complete tractor weight(KG) | 1240(4WD) 1200(2WD) | |||
| Engine | Trade Mark or Brand | LAIDONG | |||
| Engine Model | Vertical Water Cooled 3-stroke | ||||
| Directly Injection | |||||
| Number of Cylinder | 3 | ||||
| Cooling System Type | Water Cooled | ||||
| Rated Power(kw) | 22.1KW | ||||
| Fuel Tank | Volume(L) | 41.3 | |||
| Transmission System | Clutch | Single,Dry,Single Stage Type | |||
| Gear Box | F8+R2 | ||||
| Differential | Closed 4-planetary Gears | ||||
| Differential Lock | Mechanical Sliding Sleeve | ||||
| Braking System | Mechanical,dry type | ||||
| Running System | Tyre Model | F/R(2WD) | 5.5—16/9.5—24 | ||
| F/R(4WD) | 6.0—16/9.5—24 | ||||
| Steering System | Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor | ||||
| Working Device | Hydraulic System Type | Partial seperated lifter | |||
| Linkage Type | I Rear Mount 3-point Linkage | ||||
| PTO(Standard) | Φ35×6 | ||||
| PTO Speed(r/min) | 720 | ||||
| Drawbar Type | Fixed Drawbar | ||||
| Optional configuration | |||||
| Cab with Heater | Cab with AC | ROPS | Sunvisor | ||
| Adjustable Comfort Seat | Multiple Unit Valve | Hydraulic steering for 2WD | Dual-stage clutch | ||
| Double PTO Speed(r/min): 540/720 540/1000 720/1000 | |||||
| Bob-weight | Frontballest | 6×10=60kg 10kg/pcs | |||
| Rearballast | 2×25=50kg 25kg/pcs | ||||
Best Chinese Brand mini Tractors and Matched Implements
Best Chinese Brand mini Tractors and Matched Implements
Details:
1.assembled with creeping shift,double stage clutch,dual-way hydraulic output and hydraulic steering,which is popular on international market.
2.with the characteristics of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment protected, it is a right tractor for family and farm for agriculture and gardening.

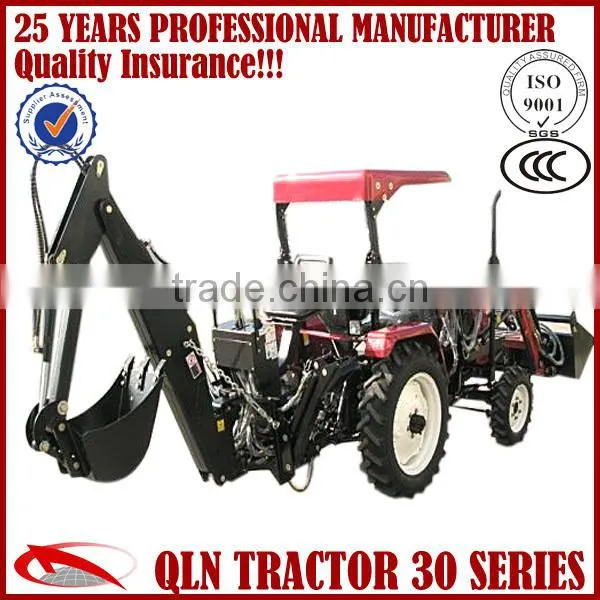

3.with front loader and back hoe, the QLN series tractor can do various kind of job engineering
4.with the fluid driving on whole structure, it has characteristics as compact structure and agile operation, which leads it work freely in incommodious field where large machine can not achieve.
5.the working implements are connected with tractor in quick linkage type, and hydraulic pipes are connected by quick coupling, which are easy for assembly.
6.the tractor hydraulic system affords power to front loader, back hoe and tractor lift equipments. hydraulic oil tank is designed according to the international standard, which is easy for maintenance.
Best Chinese Brand mini Tractors and Matched Implements
The customers & Canton Fair:
Best Chinese Brand mini Tractors and Matched Implements
Match agricultural implements:
Best Chinese Brand mini Tractors and Matched Implements
Certificates:
Best Chinese Brand mini Tractors and Matched Implements
Factory:
Best Chinese Brand mini Tractors and Matched Implements
Contact us:
Henan Qianli Machinery Co.,Ltd
South Circular Road, Weishi Industrial Cluster Area, Kaifeng, Henan, China (Mainland)
Tel: +0086-371-5505 1327/Mobile: +0086-1393902 1485/Fax:+0086-371-6531 6358/Skype: jason.yang2013
