QLN354 35hp with wheelhouse mini tractor from china with kinds of farm equipments

Specifications

1.Famous engine
2.Hydraulic steering
3.ISO2008:9001
4.QLN with wheelhouse tractor



Welcome to Qianli Machinery Co., Ltd.

Henan Qianli Machinery Co., Ltd, is a professional manufacturer of agricultural machines. With 25 years development, Qianli now covers an area of 11 hectare and has 13 modernized process lines.  Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.



 1.PARAMETER





(1)Famous engine
(2)Hydraulic output
(3)Stable performance tractor

(4)With wheelhouse tractor

Model	354
Drive type	4×4
Technical parameter
Dimension(L×W×H)(mm)	3790×1625×2100
Wheel base (mm)	2010
Wheel tread F/R (mm)	1260/1250-1350
Min. ground clearance (mm)	320
Min. operation mass (kg)	2160
Ballast F/R (kg)	54/50
Engine
Engin model	LD4L22BT-93C
Engine type	Vertical ;water cooled ;3-stroke ;direct injection
Manufacturer	ShanDong HuaYuan Laidong interna-combustion engine Co. Ltd.
Displacement (L)	2.156
Rated power (kW)	25.8
Rated speed	2300
Transmission
Clutch	Single;dry;single-actiion;friction clutch
Gear box	F8+R2
Speed of PTO (r/min)	720
PTO shaft size(mm)	6×Φ38
Steering system
Steering system type	Hydraulic steering
Working device
Model of suspension mechanism	Rear mounted, 3-point linkage
Tilling depth control type	Position control







2.QLN354 4WD 35HP







Front face of tractor

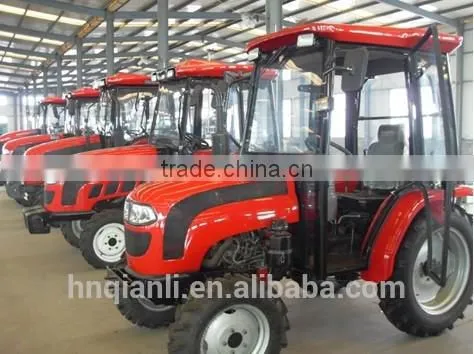

Tractor with comfortable cabin





QLN tractor have over 70 types tractor main in 6 series.Let me show you below:

1.35 series 250-354 (from 25hp-35hp 2/4wd)

2.40 series 400-554B (from 40hp-55hp 2/4wd)

3.50 series 550-654 (from 55hp-65hp 2/4wd)

4.80B series 700-854B (from 70hp -85hp 2/4wd)

5.80A series 800-1004 (from 80hp-100hp 2/4wd)

6.100 series 1104-1304 (from 110hp-130hp 4wd)



Comprehensive product series make your purchasing easily ! ! !



3.More Details











4.QLN’ Production line









5. Visitors from the world



                       Welcome to visit our factory





6.Kinds of farm equipment











7.Quality guarantee











8.Sales network





With good quality and competitive price, our products have beenexported to Romania,Russia, Ukraine,Tanzania, Congo, Iraq,Thailand, Malaysia,Australia, Venezuela,Chile, etc.







Customer First,

                Contact us now!!!
