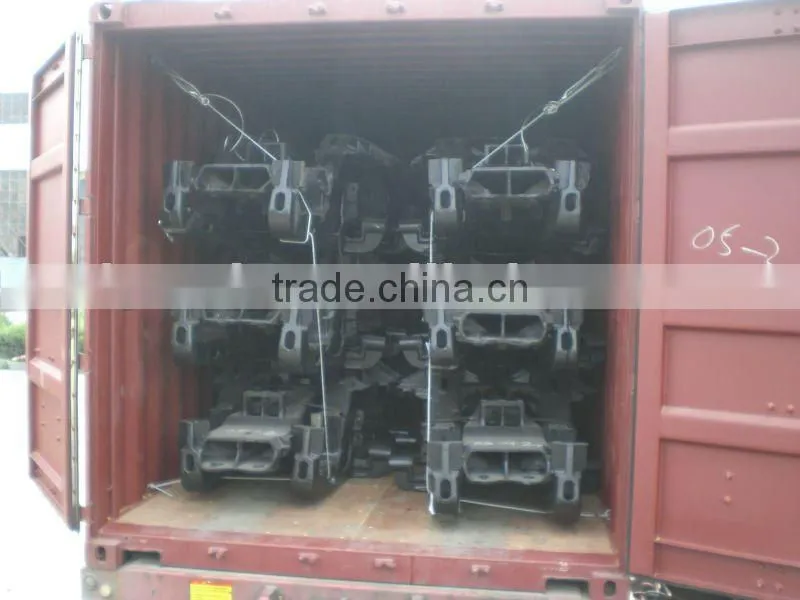

Bolster For Railway Freight Cars Bogies

1.Got the American "AAR" Certification;

2.Got the Russian Certification;

3.Got the Ukrainen Certification;

4.Using the German "V" modeling technology;

Side frame - one of the main structural elements of the bogie framework of the model 18-100. It is manufactured by casting, with additional machining and riveting of wear-resistant plates. Side frame, drawing No.1750.00.002, represents a major piece of a freight wagon bogie, which transmits the load on the axle through the axle box. Cast alloy steels 20GFL and 20GL.

Bolster drawing No.1750.00.001 serves as a bridge between the two side frames in the construction of a freight wagon bogie.To ensure reliability and durability the bolster is casted from steel 20GFL or 20GL.One of the main frame details of a bogies framework model No.18-100. Set lifetime of a bogie frame before a bolster discarding is 30 years. The designated lifetime up to the first depot repair is 2 years, before the first overhaul is 8 years. Established time to failure is at least 2 years.

Overall dimension:

side frame:2.41m*680cm*56cm weight:400kg

bolster:2.61m*39.5cm*47cm weight:525kg
