Help CenterRailway Freight Vagons Bogie Beam Bolster
Related Products
-
The Train Spare Parts Side Frames, BolsterNegotiableMOQ: 10 Sets -
The Soviet Union Railway Side Support for Train Wagon PlantUS$ 2,000 - 3,000MOQ: 30 Sets
-
Made in China Rail Freight Locomotive Side Frames, BolsterNegotiableMOQ: 10 Sets
-
Railway Running Gear Side Frame and Beam in Train Bogie PartsUS$ 10,000 - 20,000MOQ: 30 Sets
-
Casting and Forged Side Bracket for the CIS Countries RailwayUS$ 2,000 - 3,000MOQ: 30 Sets
1.Got the American "AAR" Certification;
2.Got the Russian Certification;
3.Got the Ukrainen Certification;
4.Using the German "V" modeling technology;

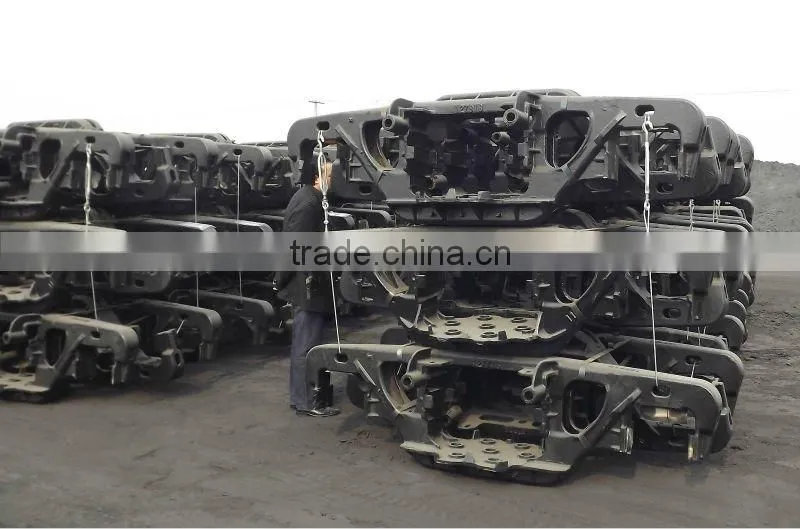

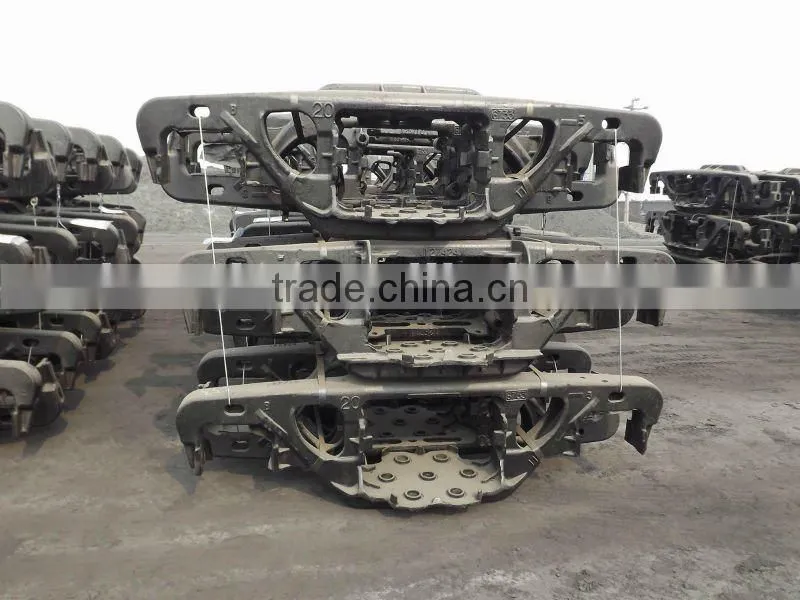

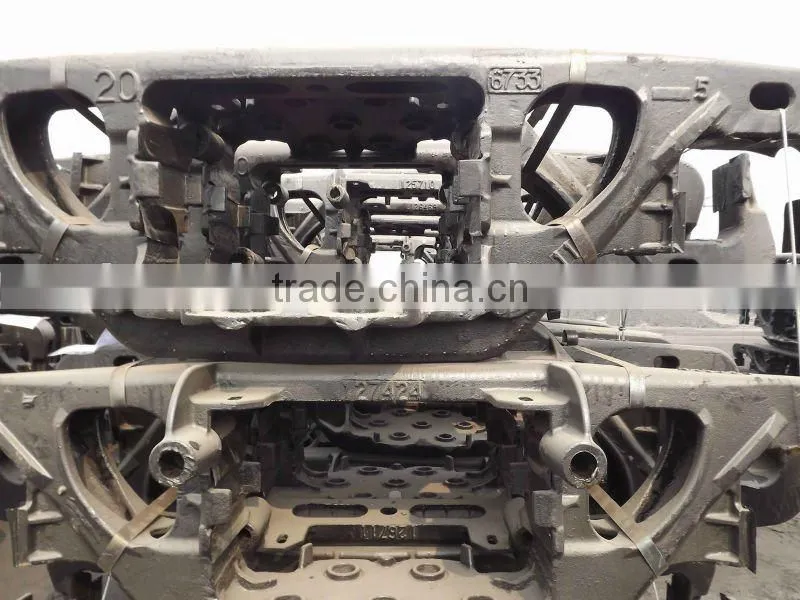

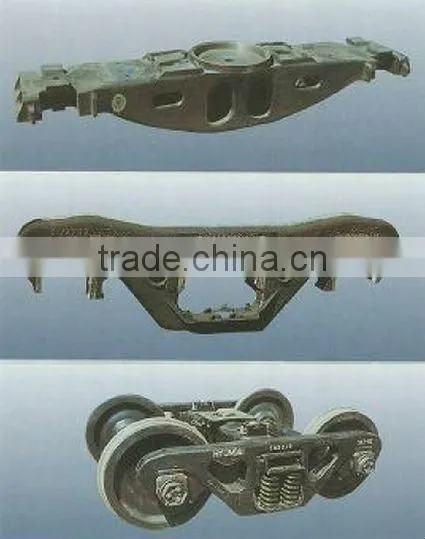

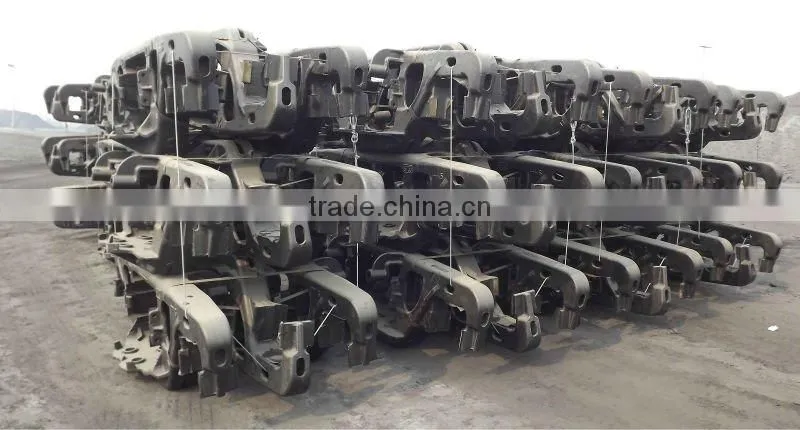

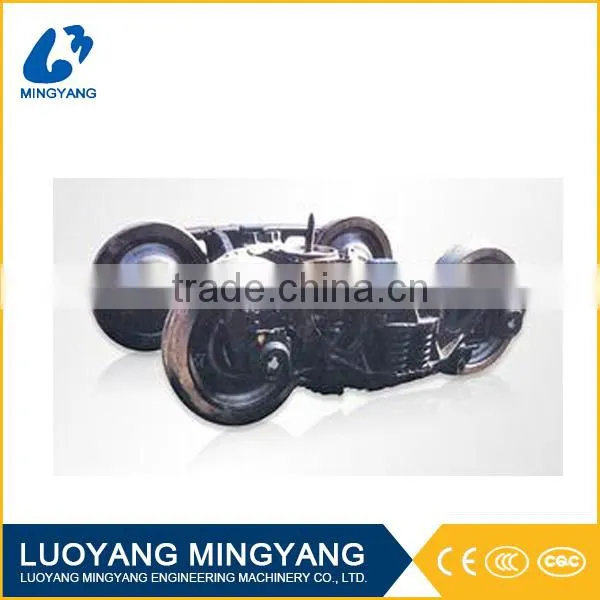

Side frame - one of the main structural elements of the bogie framework of the model 18-100. It is manufactured by casting, with additional machining and riveting of wear-resistant plates. Side frame, drawing No.100.00.002-4SB, represents a major piece of a freight wagon bogie, which transmits the load on the axle through the axle box. Cast alloy steels 20GFL and 20GL.

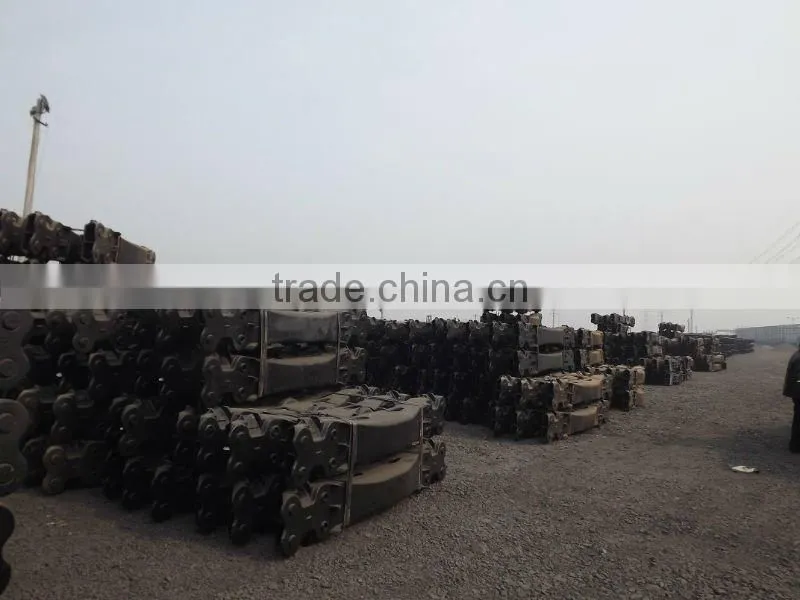

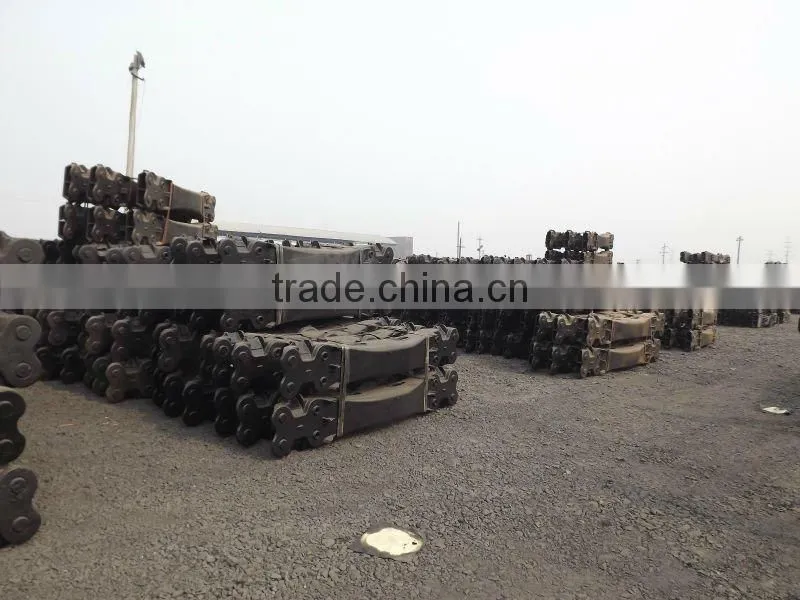

Bolster drawing No.100.00.001-6 serves as a bridge between the two side frames in the construction of a freight wagon bogie.To ensure reliability and durability the bolster is casted from steel 20GFL or 20GL.One of the main frame details of a bogies framework model No.18-100. Set lifetime of a bogie frame before a bolster discarding is 30 years. The designated lifetime up to the first depot repair is 2 years, before the first overhaul is 8 years. Established time to failure is at least 2 years.
Overall dimension:
side frame:2.41m*680cm*56cm weight:400kg
bolster:2.61m*39.5cm*47cm weight:525kg
Send Inquiry to This Supplier
