Cheap Refuse Compactor LLC223 hot sale
- 30 Unit / Units per Month
- Qingdao/ Tianjin/ Shanghai
- T/T
- Garbage compactor trucks series 4X2 Dongfeng 5CBM Garbage Compactor Trucks
- Dongfeng huashen F5 kitchen garbage truck has good performance and high cost performance
- Dongfenghuashen F5 rear-loading compression garbage truck has high efficiency
- Dongfeng huashen F5 kitchen garbage truck has good sealing and no sewage leakage
- Dongfenghuashen F5 kitchen waste truck equipped with large capacity sewage tank
- F5 new compression garbage truck, super cost-effective with Yuchai 200 gold power
Product Details
Condition: | New | Drive Wheel: | 4x4 | Type: | Compactor |
Emission Standard: | Euro 2 | Fuel Type: | Diesel | Size: | 7355x3000x3590mm |
Gross Vehicle Weight: | 23000 | Place of Origin: | Henan, China | Brand Name: | luoyang |
Model Number: | LLC223 | Certification: | CE |
Product Description

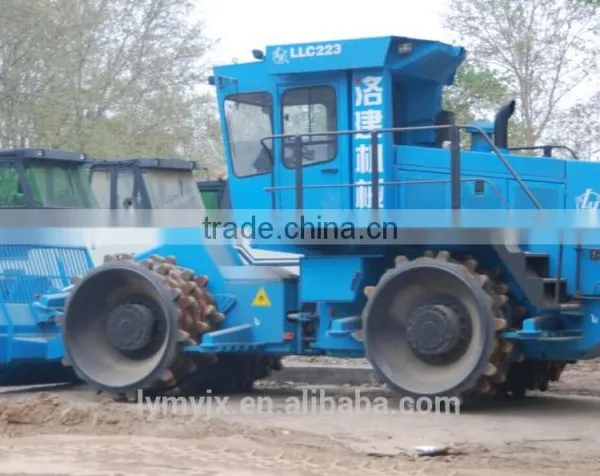

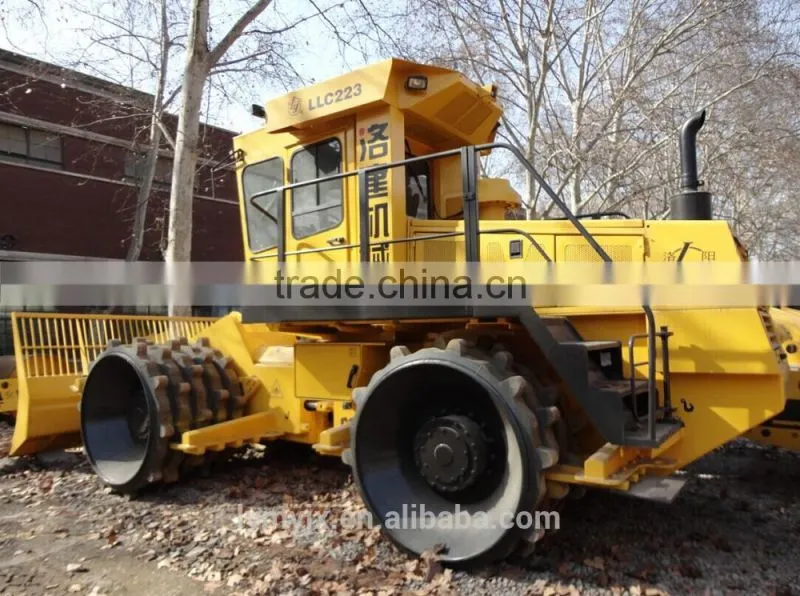

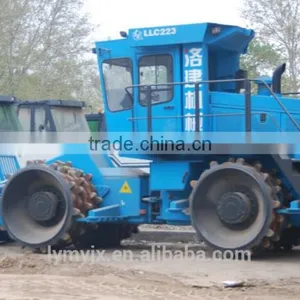

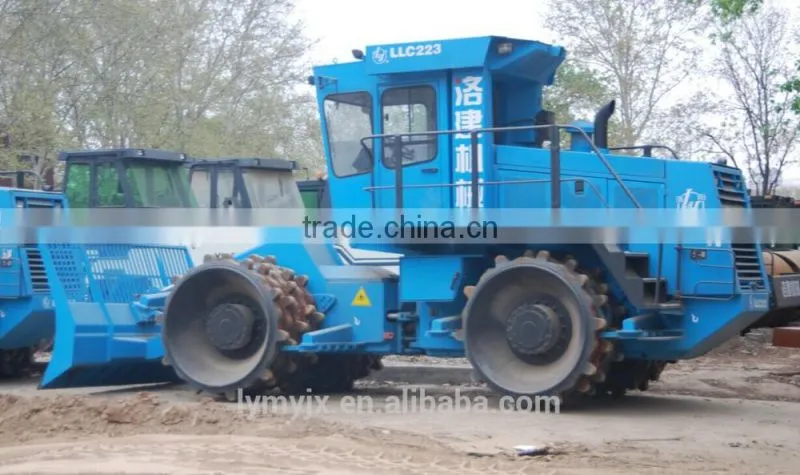

LLC223 Refuse Compactor
Main Features:
1. The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
2. SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
Torque converter and power gearshift transmission are applied on four wheels.
3. The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
4. Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
5. The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
6. The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
7. Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
8. Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
Technical Parameters:
MODEL | LLC223 |
| |
Mass |
| ||
Operating mass | kg | 23000 |
|
Axle load (front) | kg | 11000 |
|
Axle load (rear) | kg | 12000 |
|
Dimensions |
| ||
Overall length | mm | 7355 |
|
Overall width at dozer blade | mm | 3000 |
|
Overall width at front wheel | mm | 2910 |
|
Overall width at rear wheel | mm | 2705 |
|
Overall height | mm | 3590 |
|
Wheelbase | mm | 3350 |
|
Clearance | mm | 435 |
|
Compacting wheel |
| ||
Wheel width | mm | 1040/835 |
|
Wheel diameter (front / rear, out teeth) | mm | 1500/1500 |
|
Wheel diameter (front / rear, inner teeth) | mm | 1200/1200 |
|
Teeth No. per wheel (front / rear) |
| 50/40 |
|
Drive |
| ||
Diesel engine manufacturer |
| SHANGCHAI |
|
Diesel engine model |
| D6114ZG |
|
Diesel engine power | kW | 147 |
|
Diesel engine rated speed | r/min | 2000 |
|
Electrical system | V | 24 |
|
Number of driven wheels |
| 4 |
|
Forward travel speed (1) | km/h | 0-4.2 |
|
Forward travel speed (2) | km/h | 0-15.7 |
|
Backward travel speed | km/h | 0-5.8 |
|
Grade ability | % | 100 |
|
Dozer blade |
| ||
Dozer blade height | mm | 1650 |
|
Dozer blade width | mm | 3000 |
|
Dozer blade height over ground | mm | 1000 |
|
Dozer blade depth below ground | mm | 150 |
|
Brake |
| ||
Serve brake | Air-over-oil, caliper disk brakes |
| |
Parking/Emergency brake | Mechanical, expanding hoofed brake |
| |
Steering |
| ||
Steering method | Hydraulic central articulation with oscillation |
| |
Steering angle | ±° | 40 | |
Oscillating angle | ±° | 15 | |
Steering radius (outer front wheel) | mm | 6085 | |
Capacities | |||
Fuel tank | L | 450 | |
Hydraulic oil | L | 236 |
Packaging: according to the shipment requirement
Shipping: 30days after receive the down payment
Payment terms: 30%TT as deposit, 70%TT before shipment;
Delivery time: 25-30 days after deposit
Sales manager: Alina
Email: smallwang(at)
Trade manager: cn220063878
Company: Luoyang Mingyang Engineering Machinery Co., Ltd.
About us:
Luoyang Mingyang Engineering Machinery Co., LTD is a professional engineering machinery selling company, qualified with import and export trade qualification, with products exported to more than 30 countries and regions domestic and abroad. Our main products are: loader, road roller, bulldozer, grader, paver, refuse compactor, concrete mixing plant and other large engineering machinery, as well as railway locomotive accessories (side frames, bolsters, wheels etc.), wind power equipment, etc., which gained the European CE certification and ISO9001 certification in China. Luoyang Mingyang Engineering Machinery Co., Ltd. has the most dynamic marketing team as well as an advanced and professional group consisting of many senior engineers, who are mainly responsible for the quality testing and production supervision to guarantee the high quality of our products and the good reputation of our company. After years of steady development, our products not only gained market in more than thirty domestic provinces, cities and autonomous regions, but also exported to Europe, Africa, South America, Russia, etc. We also established companies in several foreign countries. Our prospect is to become the famous domestic exporter of engineering machinery and we are committed to providing qualified engineering machinery products and services. Profession achieves good quality, ideal creates future. Mingyany, excellence due to continuous pursuit and condensed verve, to let the world enjoy the unlimited scenery of science and technology.
Customer Service:
Service promise:
We always insist ‘The customer is first, the client is best’. We do our effort to provide eligible products to all clients. Now we promise as following:
1. According to the rule of law, the detailed rules of new system of guarantees, we provide guarantees for our products.
2. If there are quality objections in our machine because of designing, making, assembly and material, we'll repair, replacing in time.
3. We’ll give the machine to client as its 0 working hour. That’s can make sure the client use and maintain better.
4. We’ll reply on you in 4 hours as you meet the problem when you use machine according to the manual strictly. If we need support service at work site, we’ll settle the problem inside the province in 24 hours and outside province 72 hours. If the machine be aboard, the client should send the broken parts photo to us first, we’ll reply on you in 2 workdays.
5. We can help the customer to choose the machine’s model according to client’s demand. We’ll do our best to supply service in the course of sale. And we can give technical consultation, driver training and maintenance man training in our factory.
6. We promise support service for the machine till it reject. If the products were broken down over the period of warranty, we’ll support the service without free.
7. Our service department promise answer the phone call every day include holiday.
8. We’ll make record for every machine and tracing them in order to get the latest information of the machine. So we can give the better service for you.
