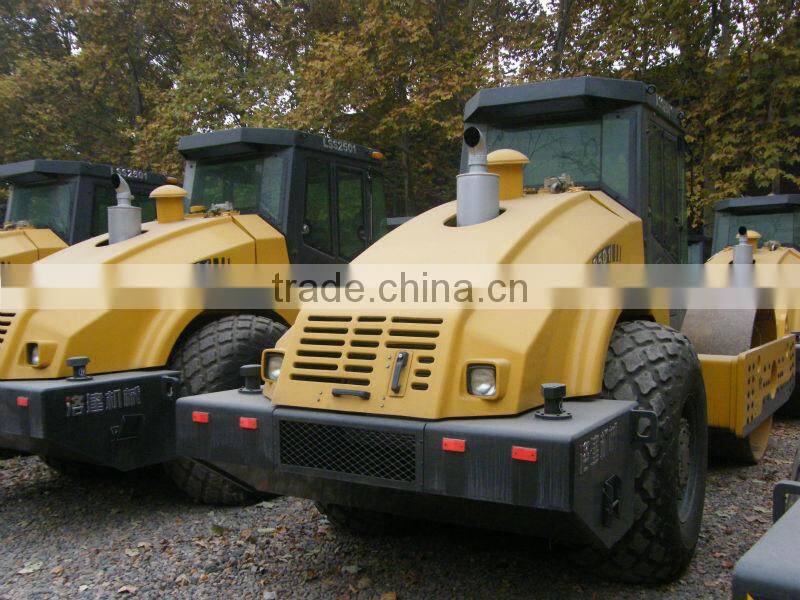

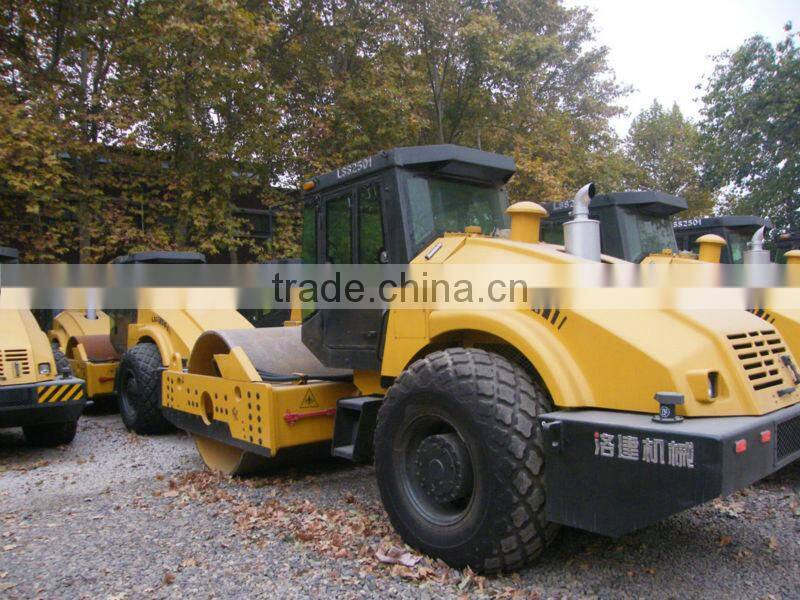

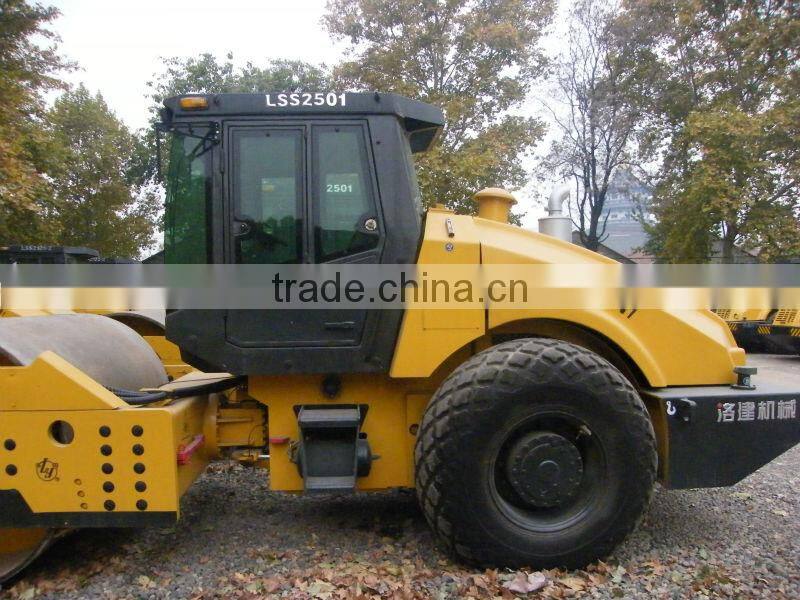

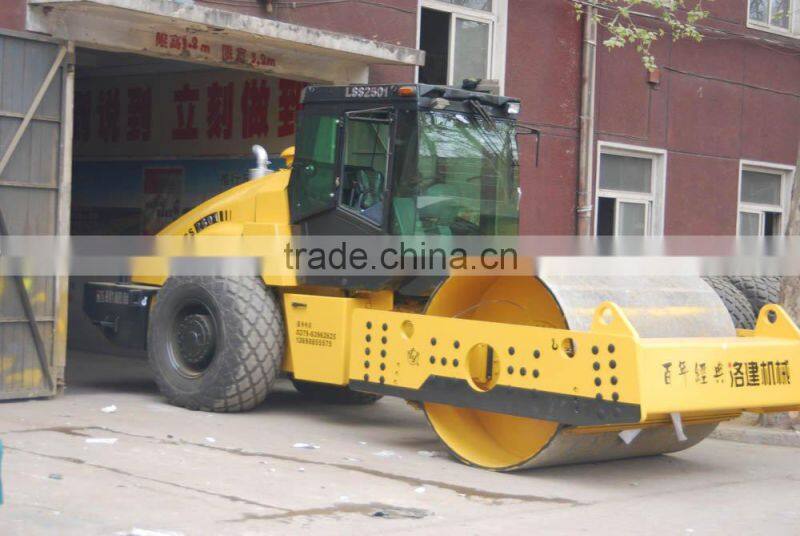

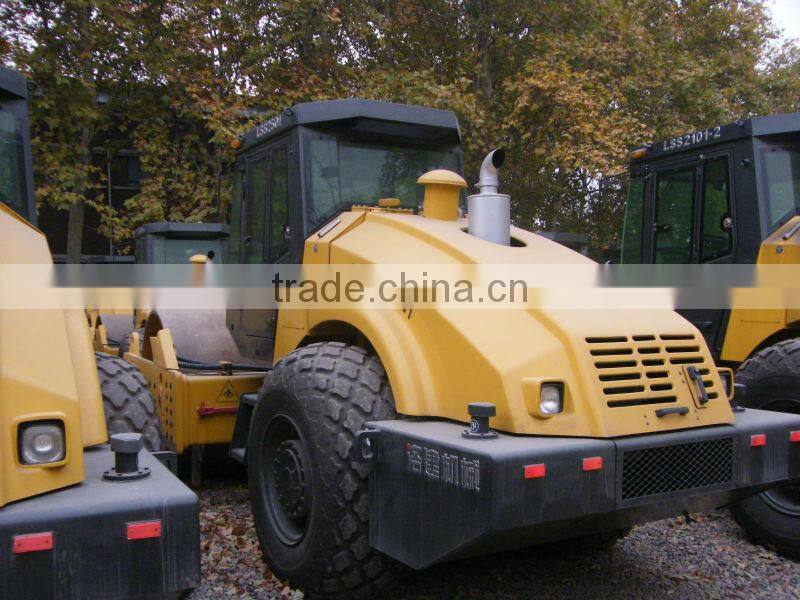

25 Tons LSS2501-2 Single Drum Vibrator Compact Rollers
Applications:
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.
Main Features:
- GUO II emission standard engine. Engine cooling air-path structure and large capacity of fuel tank.
- One handle controlled pneumatic shift control mechanism. Parking brake by cutting air. Safety and reliability.
- Dual amplitude setting of vibration;New types of vibration device and drum travel bearing structure. Heavy -duty gearbox. With driving axle.
- Joint-moving mechanism of the clutch pedal with engine throttle. Adjustable instrument desk with liquid crystal instrument panel.
- MP3 supported music system with USB and SD interface. Modernized style overall appearance. Driver’s cabin with T type angular glasses.
Technical Parameters:
Model |
|
LSS2501-2 |
Operating mass |
kg |
25000 |
Static linear load |
N/cm |
529 |
Vibration amplitude |
mm |
2.0/1.0 |
Vibration frequency |
Hz |
28 |
Centrifugal force |
kN |
380/240 |
Max travel speed |
km/h |
10.5 |
Gradeability |
% |
35 |
Turning radius |
mm |
7500 |
Drum width |
mm |
2130 |
Drum diameter |
mm |
1600 |
Wheelbase |
mm |
3430 |
Ground clearance |
mm |
445 |
Diesel model |
|
SC8D180 |
Diesel power |
kW |
132 |
Overall dimensions |
mm |
6600×2300×3000 |
