Best Saller YTO 50HP 4WD Wheel Farm Tractor

Best Saller YTO 50HP 4WD Wheel Farm Tractor thumbnail-1
Best Saller YTO 50HP 4WD Wheel Farm Tractor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Mingyang Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Brand Name YTO
Model Number YTO-504
Place of Origin Henan, China

Specifications

1. 50HP
2. 4WD
3. agricultural tractor
4. 3 points hitch

General description:

The YTO504 tractor is equipped with wet disc brakes,

ensuring desirable braking performance and high reliability.

It adopts the planetary end transmission and double action clutches.

It is applicable to paddy fields and dry farmlands.

It adopts the engagement sleeve gear shifting and force and position combined regulation.

It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides,

it is equipped with safety anti-toppling shelf for optional assemblage.



TECHINICAL PARAMETERS:



dongfanghong -504

Model



4×4

Overall Dimension

mm

3882×1715×1720

Wheel base

mm

1250

Front/Rear wheel tread

mm

1350 - 1340/1300-1600

Min. ground clearance

mm

340

Min. operating mass

Kg

2245

Min. turning radius

m

4.1±0.3

Tire type



8.3 - 20 /13.6 - 28

Rated tractive force

kN

12

Speed range

km/h

2.45 - 32.05

Engine model



YTR4105t54

Engine type



Four-cylinder, vertical, water-cooled, four-stroke direct injection diesel engine

Rated power/Rated rotation speed

kw/r/min

36.8/2200

Lifting capability

kN

≤242

PTO type



8.8

PTO shaft

r/min

Semi-detached

Plough depth control mode



Force, integrated control and floating control mode

Fuel consumption

g/kw.h

766 ,or 540/1000



 PHOTOS

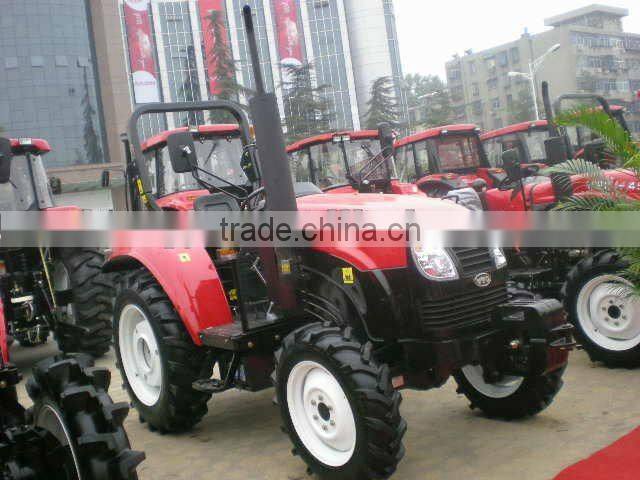

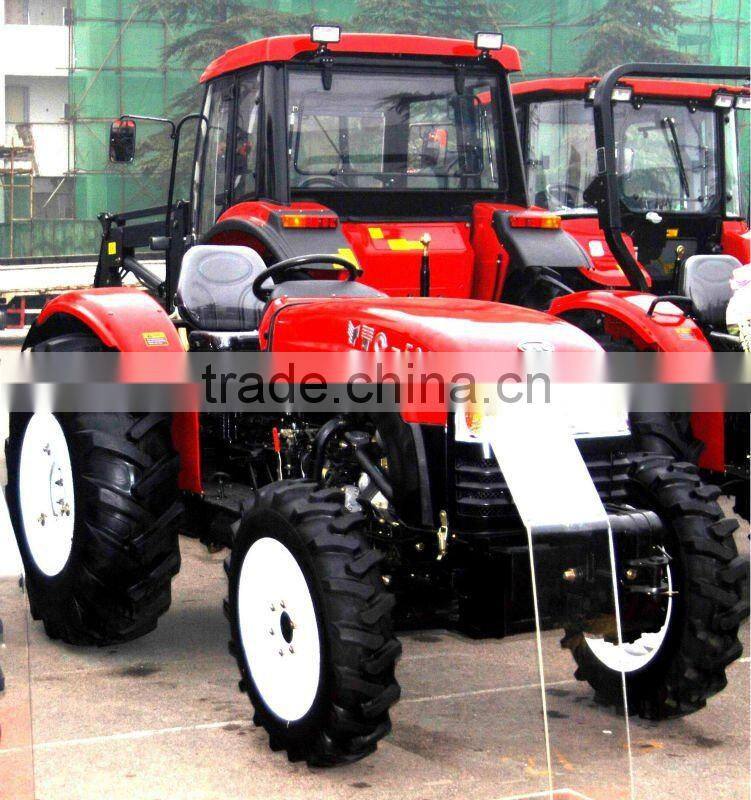

Best Saller YTO 50HP 4WD wheel farm tractorBest Saller YTO 50HP 4WD wheel farm tractor
