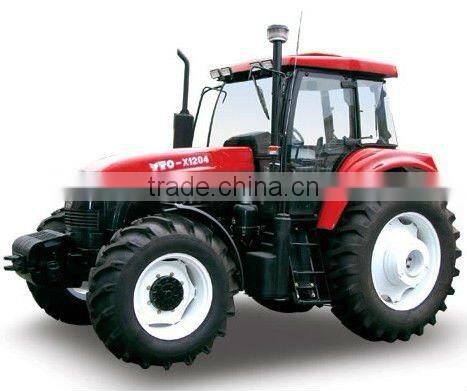

Help CenterYTO X1204 120Hp Wheel Tractor
Related Products
-
YTO-1804 Wheeled TractorUS$ 50,737 - 50,737MOQ: 1 Set -
Hot Sale 80HP Crawler Tractor YTO-CA802NegotiableMOQ: 1 Unit
-
2.5m-3.3m Farming Disc Plough 1BZD Disc HarrowNegotiableMOQ: 1 Unit
-
0.4-1.25m Various Share Plough for Small Farming TractorsNegotiableMOQ: 1 Unit
-
China Cheap Share PloughNegotiableMOQ: 1 Unit
As a china wheeled tractor manufacturer and supplier,we at YTO have been ISO9000and ISO14000 certified due to our consistent dedication to product quality and environmental protection.through our decades of experience,now wi can offer a great variety of tractors.100-130HP wheeled tractor is one of our most popuar products.
Here ,we give you some features of this product so as to help you better understand,it.
Our wheeled tractor employs six cylinder.water cooled,four-stroke engine.PERKINSengine is also available,which is of reliable quality,high torque,and low fuel consumption.
The transmission system ,which is manufactured using abvanced ltalian technology.has the advantages of reasonable structure and high transmission efficiency.
The full hydraulic steering system is utilized for eady operation.
The rear axle brake adopts the wet disk brake,which is reliable and helps ensure the driver safety.
The new flat –floor cab is stylish,comfortable,and can be equipped with an air conditioning system.
Two independent PTO output speeds(540 and 1000 r/min)suit all operation requirements.
High lifying force,with multiple tillage depth control
Our wheeled tractor is equipped with a double action clutch..
100-130HP wheeled tractor specifications
Engine | |||
Model |
|
LR6B5-23 |
|
Type |
|
Vertical, water-cooled, four-stroke direct injection diesel |
|
Rated rotation speed |
r/min |
2400 |
|
Transmission system | |||
Number of speed gears, forward / reverse |
|
12/4 |
|
Speed range,forward |
km/h |
2.34-30.55 |
|
Speed range,reverse |
km/h |
5.04-14.27 |
|
Machine body | |||
Wheel base |
mm |
2688.5 |
|
Front wheel tread |
mm |
1760-2000 |
|
Rear wheel tread |
mm |
1660-2260 |
|
Min. ground clearance |
mm |
495 |
|
Min. turning radius |
m |
4.6 |
|
Max. operating weight |
kg |
5420 |
|
Specific fuel consumption under rated conditions |
g/kw.h |
≤242 |
|
Wheel tires (front / rear) |
inch |
14.9-26/18.4-38 |
|
Lifting capability |
KN |
26 |
|
PTO shaft rotation speed |
r/min |
540/1000 |
|
Overall dimensions(L×W×H) |
mm |
4770×2330×2960 |
|
