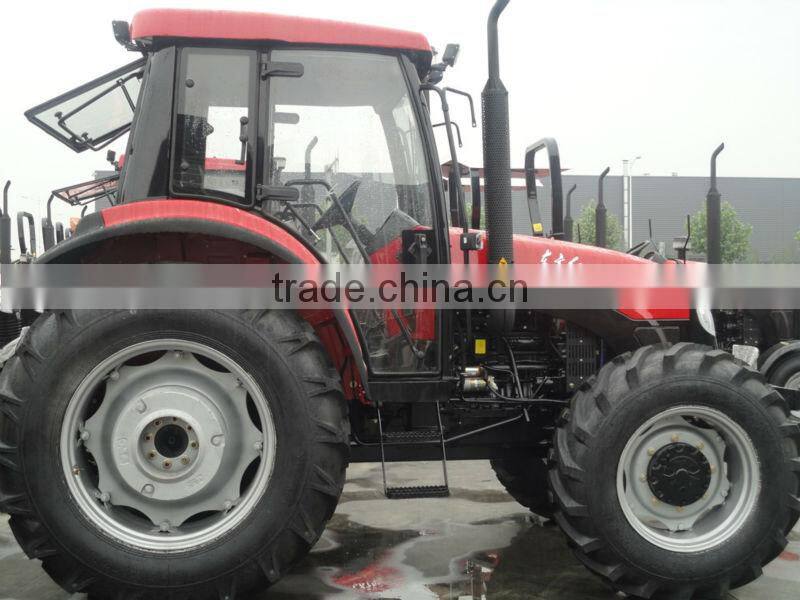

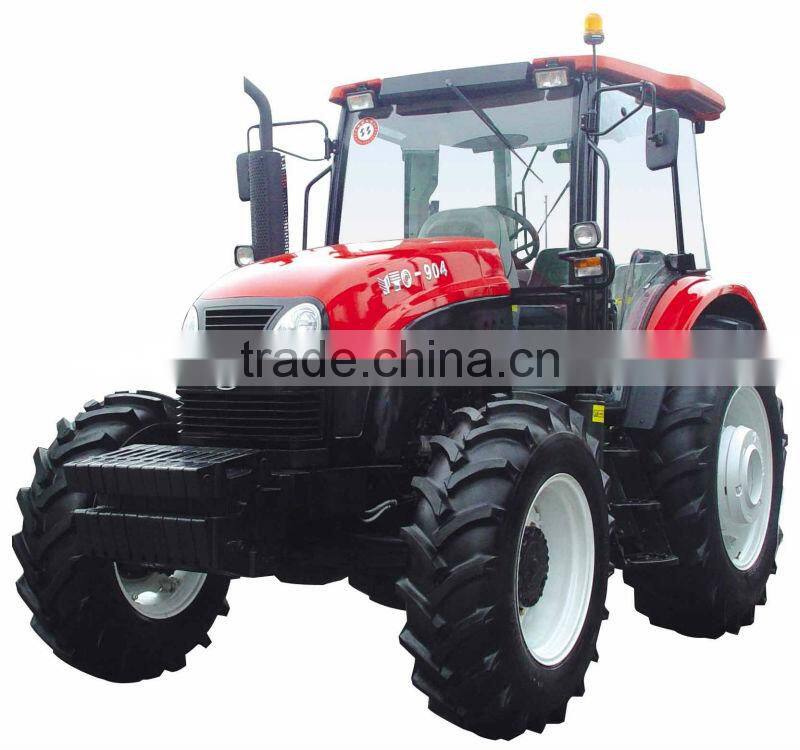

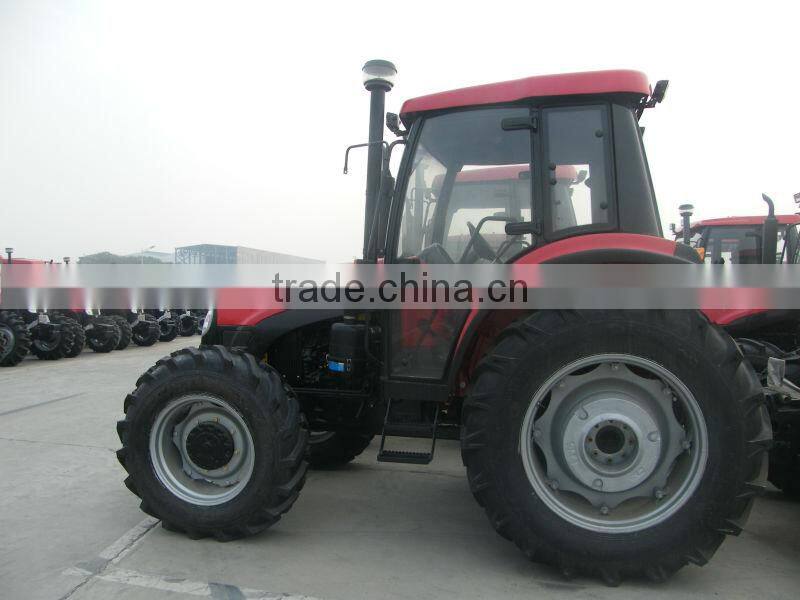

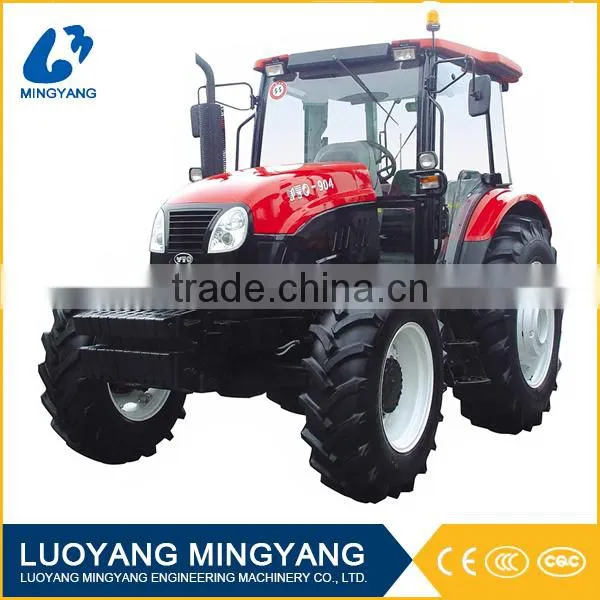

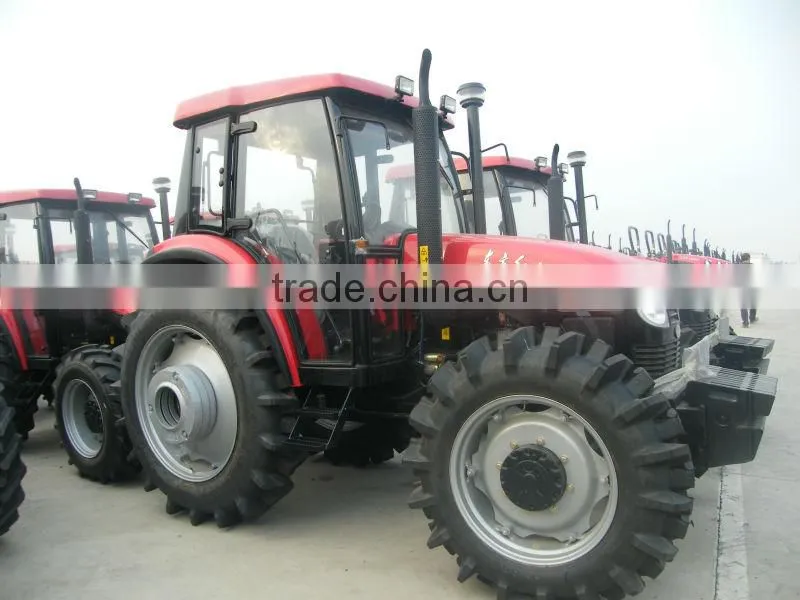

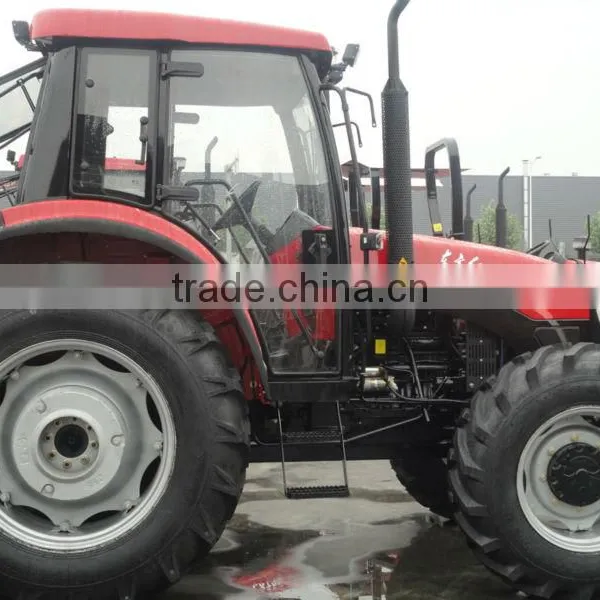

YTO-904 wheeled tractor
Wheeled Tractor Features:
1.The diesel engine .which is manufactured using advanced British technology. Delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.
2.The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h
3. The full hydraulic steering system is utilized for easy operation.
4. High safety is ensured due to the use of the wet disc brake.
5. Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to lifer the driver a high level of comfort,
6. In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kn)
7. Our wheel loader adopts double action clutch. German LUK clutch is available for your choice.
Wheeled Tractor Specifications:
Model |
YTO-LX904 |
Tractor | |
Type |
4×4 |
Overall dimensions(L×W×H)(mm) |
4350×2000×2765 |
Wheelbase(mm) |
2314 |
Min ground clearance(mm) |
440 |
Min .operating mass(with safety stand)(kg) |
3920 |
Tire spec, front/rear |
13.6-24/16.9-34 |
Wheel tread, front/rear |
1562~2000/ 1520~2120 |
Steering |
Full hydraulic |
Brake |
Oil immersed, disk type |
Diesel engine | |
Model |
LR4M5-23 |
Type |
Four cylinder ,vertical, water cooled ,four stroke, direct injection combustion |
Displacement(L) |
5.13 |
Rated. power/speed (kw)(r/min) |
66.5/2300 |
Max .torque(N.M)speed(r/min) |
325/1600-1800 |
Bore ×stroke(mm) |
110×135 |
Transmission | |
Gear shift, forward/backward |
12/4 |
Speed range(km/h)forward/backward |
1.61~26.57/4.28~12.85 |
PTO power(kw) |
55 |
PTO rotation speed(r/min) |
540/720 or 540/1000 |
Clutch |
11-inch,dry,double action |
Im plement | |
Three-point linkage category |
Three-point linkage category II |
Tilling depth control mode |
Combined draft, position control and floating control |
Lifting force(kn) |
16 |
Options | |
OECD.anti-turnover bar |
OECD certified anti-turnover bar or anti-turnover bar with awning |
Transmission with shuttle-type gear |
12+12 |
Transmission with creeper gear |
24+8 |
Hydraulic output |
2 or 3 group |
