YTO 70HP 4WD Agricultural Tractor

YTO 70HP 4WD Agricultural Tractor thumbnail-1
YTO 70HP 4WD Agricultural Tractor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Mingyang Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Brand Name YTO
Model Number YTO-704
Place of Origin Henan, China

Specifications

1. 70HP
2. 4WD
3. agricultural tractor
4. 3 points hitch

General description:



1. The YTO-X704 tractor is developed on the basis of the Italian wheeled tractor chassis technology,

adopting the British technologybased engine.

2. The machine body has a streamline configuration.

3. The tractor has a low fuel consumption and a desirable power economic efficiency.

4. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.





TECHINICAL PARAMETERS:





Type



YTO-X704

Engine



Model



LR4105T76A

Type



Vertical,water-cooled,4-stroke,direct injection fuel economy diesel engine

Rated power

KW

51.5

Rated rotation speed

R/MIN

2400

Transmission



Number of speed gears



12/4

Speed range

KM/H

1.61-26.58/4.17-12.52

Tractor



Wheel base

MM

2314

Front/Rear wheel tread

MM

1630-1960/1500-2100

Min. turning radius

M

3.9

Max. operating mass

KG

4170

Specific fuel consumption

G/KW.H

≤242

Lifting capability

KN

15.45

PTO shaft type



PTO shaft rotating speed

R/MIN

540/1000,540/720

Max. traction force

KN

23.2

Tire size



11.2-24/16.9-30

Overall dimensions



LXWXH

MM

4160x1930x2720

Min. ground clearance

MM

350

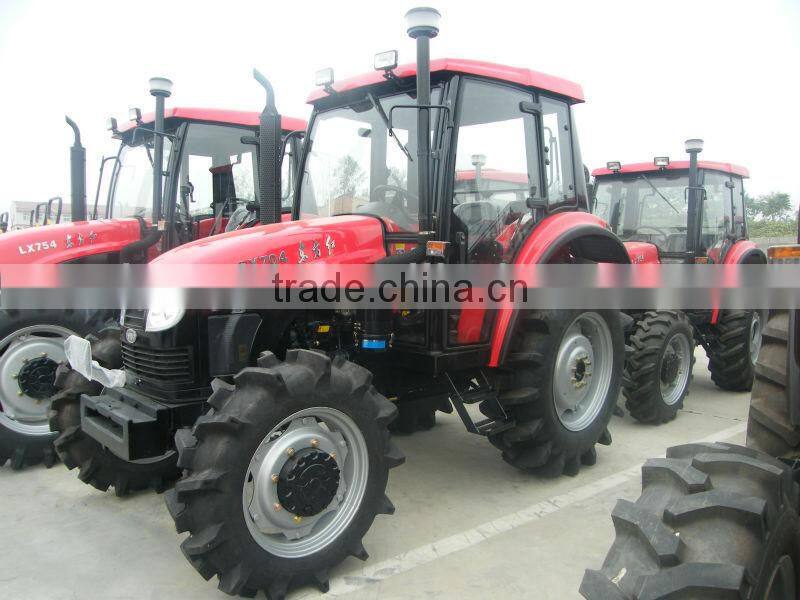

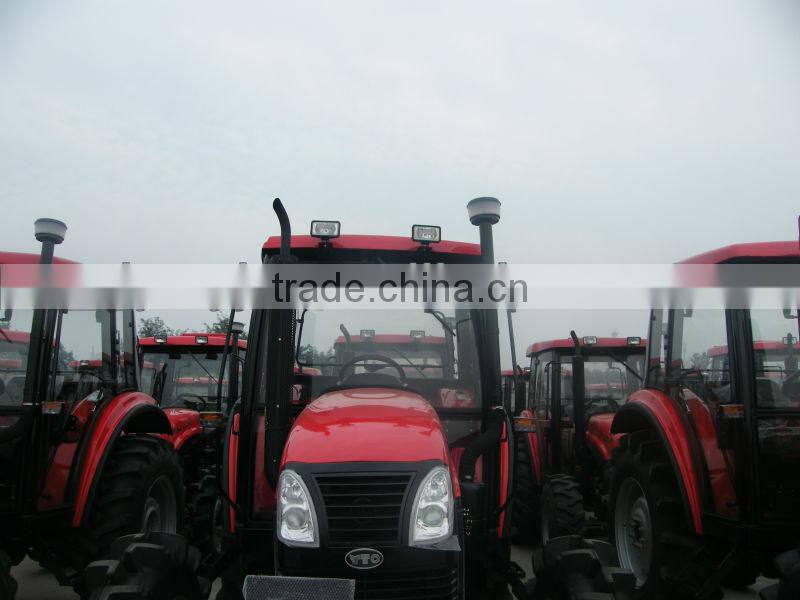

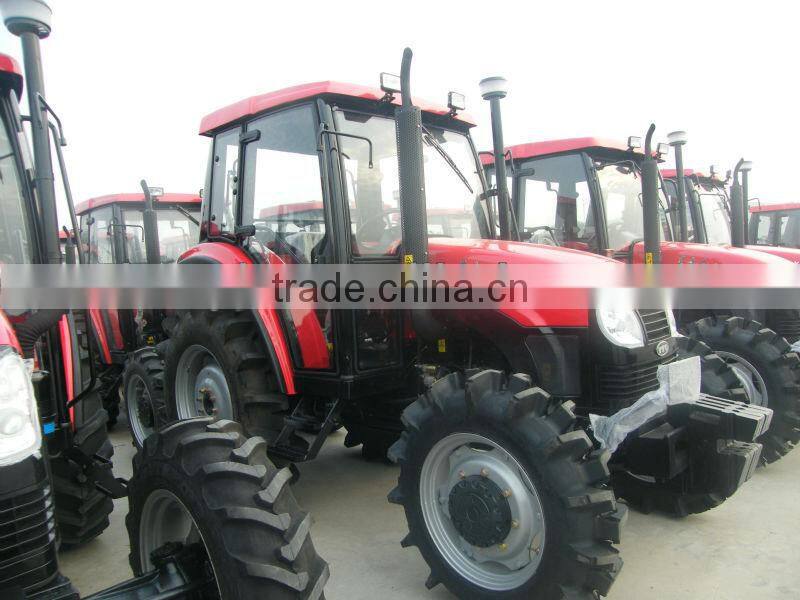

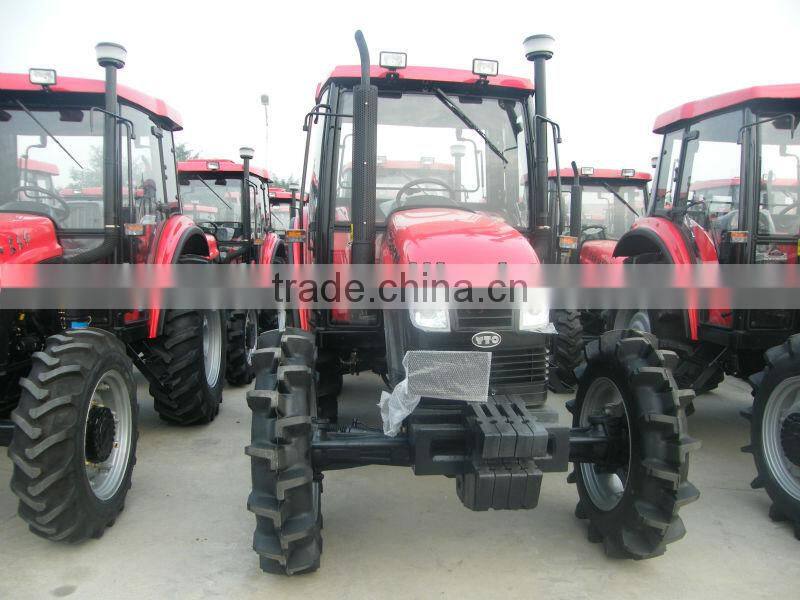

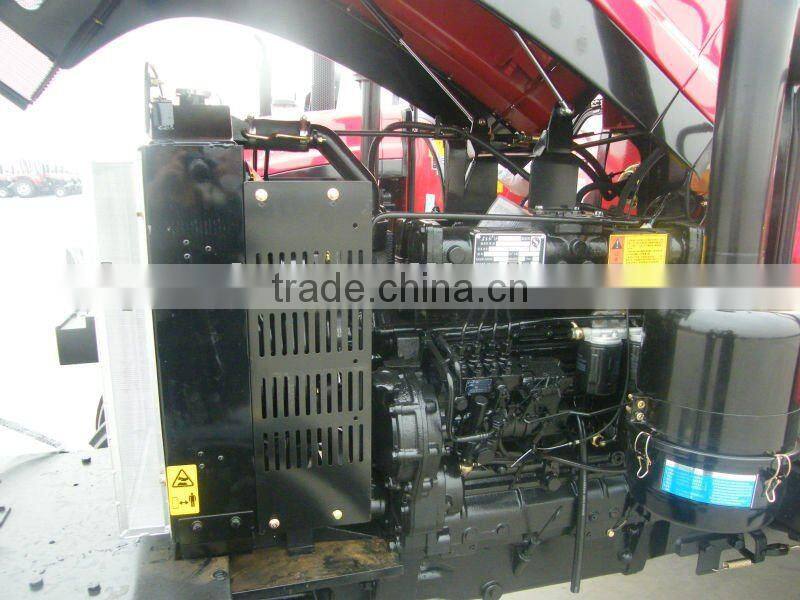

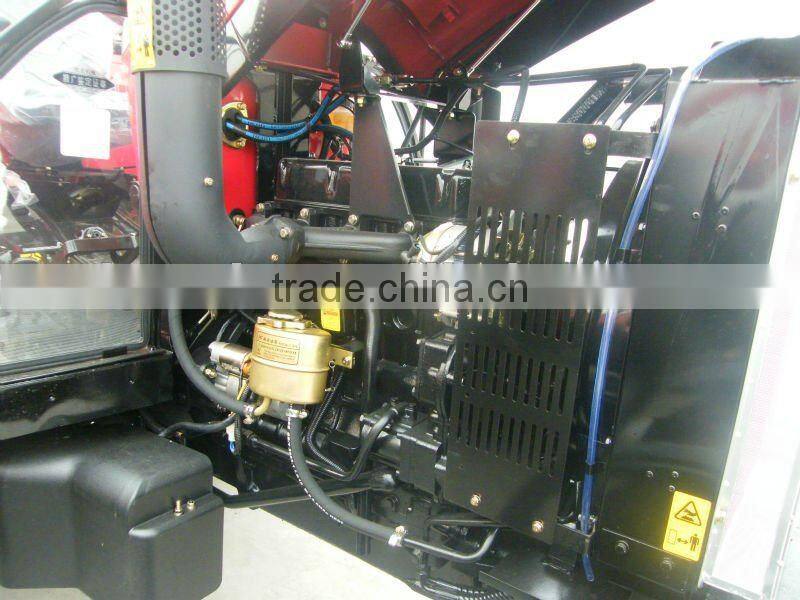

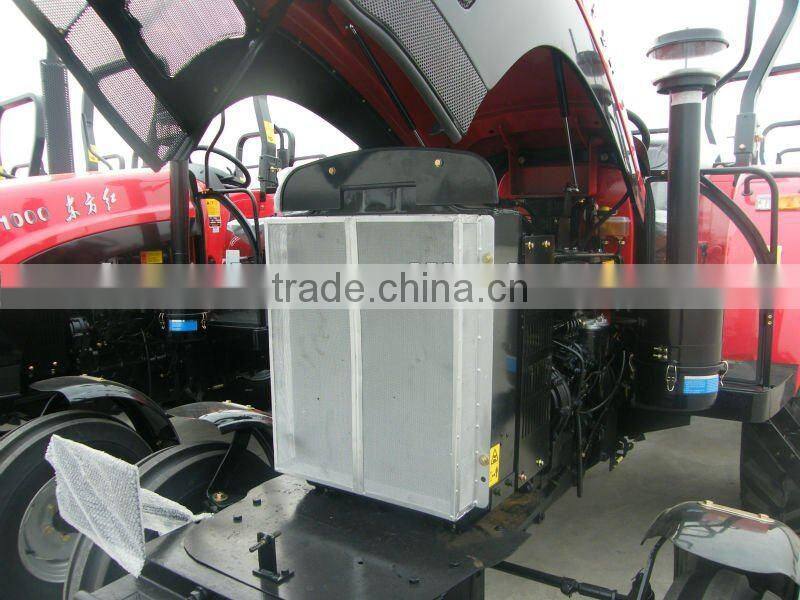

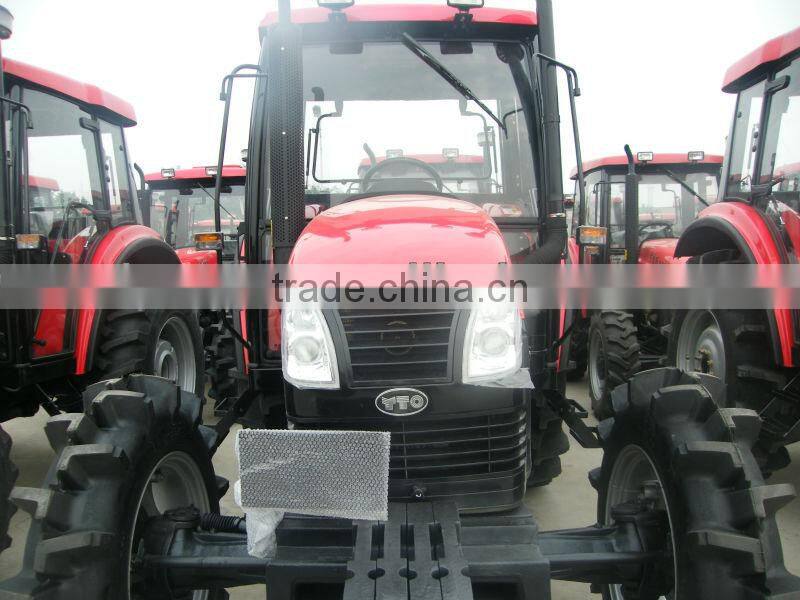

 PHOTOS

YTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractor



YTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractorYTO 70HP 4WD agricultural tractor
