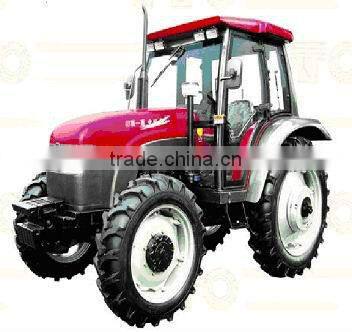

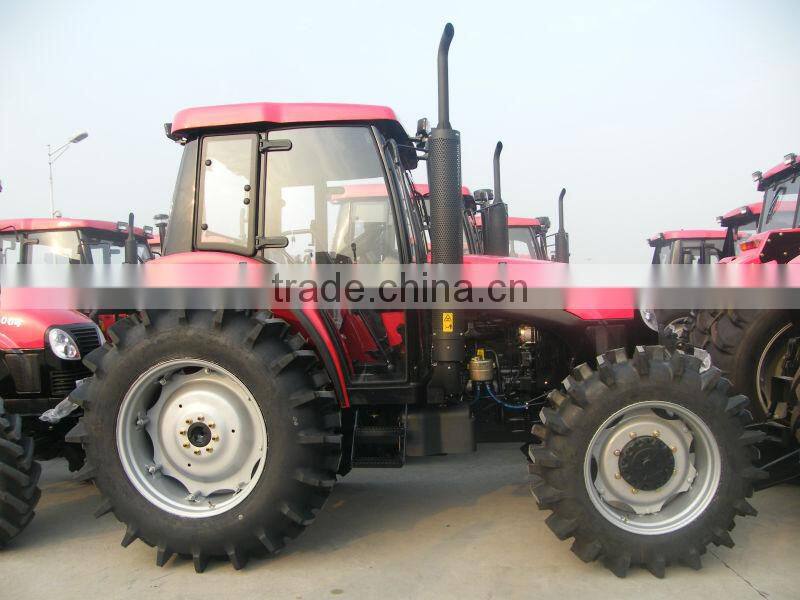

YTO 100hp Wheel Tractors YTO-X1004

YTO 100hp Wheel Tractors YTO-X1004 thumbnail-1
YTO 100hp Wheel Tractors YTO-X1004 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Mingyang Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Power(W) 74kw
Certificate CE
Brand Name YTO
Model Number YTO X1004
Place of Origin Henan, China
After-sales Service Provided Overseas service center available

                                                      Dongfanghong-x1004 wheel tractor



YTO 100hp wheel tractors YTO-X1004



YTO 100hp wheel tractors YTO-X1004YTO 100hp wheel tractors YTO-X1004YTO 100hp wheel tractors YTO-X1004



Employ original electronic control Perkins engine, high torque, powerful overload performance, low fuel consumption;
Absorb the design features of Italian mechanical T/M of the same power range, with rational layout structure;
Independent oil loop, hydraulic steering system control; safe and reliable wet or disc brakes for rear axle;
Brand new flat floor cab, elegant and comfortable, options: with cold or warm air or A/C;
Two independent PTO output speeds,540 and 1000 rpm, adaptable for all operation requirements;
High lifting force, with multiple tilling depth control;
Two groups of hydraulic output valves optioned with 3-group hydraulic valves..



Engine

Model



LR4A3L-23

Rated rotation speed

r/min

2400

Transmission system

Speed range forward

km/h

2.24-29.30

Speed range reverse

km/h

4.83-13.67

Machine body

Wheel base

mm

2648.5

Front wheel tread

mm

1760-2000

Rear wheel tread

mm

1600-2200

Min. turning radius

m

4.5

Max. operating weight

kg

5420

Specific fuel consumption under rated conditions

g/kW.h

≤245

Wheel tires (front / rear)



14.9-24/16.9-38

PTO shaft type



Rear-positioned, independent and synchronous

PTO shaft rotation speed

r/min

540/1000

Overall dimensions (L×W×H)

mm

5200X2696X2970

Min. ground clearance

mm

470
