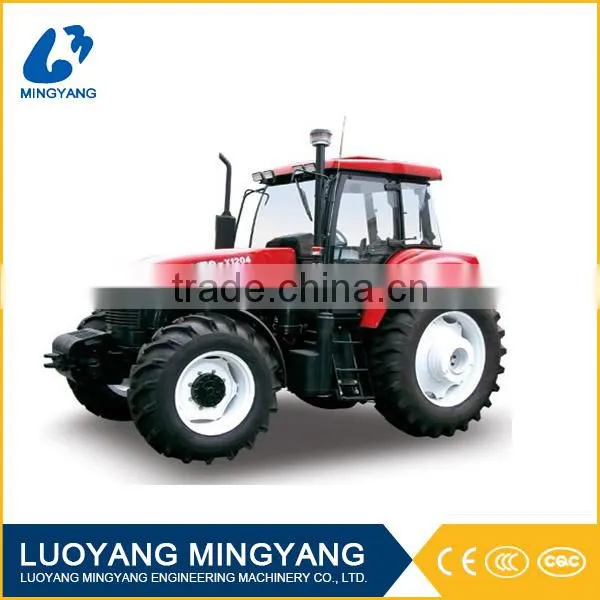

Agricultural Machinery of YTO X1204 120Hp Four Wheel Tractors

Agricultural Machinery of YTO X1204 120Hp Four Wheel Tractors thumbnail-1
Agricultural Machinery of YTO X1204 120Hp Four Wheel Tractors photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Mingyang Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate CE
Brand Name YTO
Model Number X1204
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

YTO-X1204

Agricultural machinery of YTO X1204 120Hp four Wheel TractorsAgricultural machinery of YTO X1204 120Hp four Wheel TractorsAgricultural machinery of YTO X1204 120Hp four Wheel TractorsAgricultural machinery of YTO X1204 120Hp four Wheel Tractors



The YTO-X1204 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine. The machine body has a streamline configuration. It is low in specific fuel consumption and better in power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.



Engine

Model



LR6B5-23

Type



Vertical, water-cooled, four-stroke direct injection diesel

Rated rotation speed

r/min

2400

Transmission system

Number of speed gears, forward / reverse



12/4

Speed range,forward

km/h

2.34-30.55

Speed range,reverse

km/h

5.04-14.27

Machine body

Wheel base

mm

2688.5

Front wheel tread

mm

1760-2000

Rear wheel tread

mm

1660-2260

Min. ground clearance

mm

495

Min. turning radius

m

4.6

Max. operating weight

kg

5420

Specific fuel consumption under rated conditions

g/kw.h

≤242

Wheel tires (front / rear)

inch

14.9-26/18.4-38

Lifting capability

KN

26

PTO shaft rotation speed

r/min

540/1000

Overall dimensions(L×W×H)

mm

4770×2330×2960
