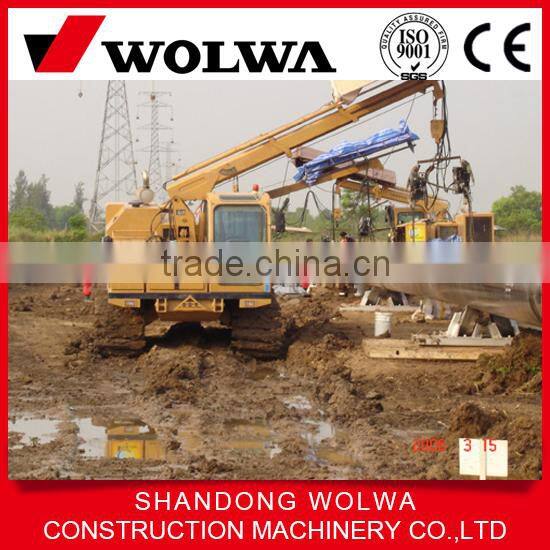

Multi-functional Machine Tool Equipment Welding Workstation on Crawler
Welding work station is the latest product developed based on former model. Engine , generator and hydraulic pump are connected directly which features of simple transmission structure and high reliability. Multifunctional digital display meter display apparent overall working conditions. Front double pedal traveling operation, which makes the operation more simple and convenient.
Technical characteristics
1 .Engine , generator and hydraulic pump are connected directly which features of simple transmission structure and high reliability.
2.Reasonable overall arrangement of center of gravity, and high stability. 3.Multi-functional digital meter displays apparent overall working conditions.
4.Front double pedal traveling operation, handle is placed in the cab which makes the operation more simple and convenient.
5.Split housing is convenient for repair & maintenance.
Main parameter
| Items | Main parameters | ||
| Model | HQ100 | HQ125 | |
| Dimensions (L×W×H) mm | 5850 * 2470 * 3050mm | 5850 * 2470 * 3050mm | |
| Overall weight(approx.) t | 9.65t | 10.17t | |
| Average ground pressure kPa | 28.6 kPa | 30.15kPa | |
| Max. climbing capability ° | 25° | ||
| Max. traction force kN | 91 kN | ||
| Travelling speed km/h | Double speed , gear I 0 ~ 2.9 gear II 0 ~ 4.6 | ||
| Engine | Model | 6BTA5.9-C170 | 6BTAA5.9-C180 |
| Rated power/ rotating speed | 127kW/2000rpm | 132kW/2200rpm | |
| Min. fuel consumption g/kW·h | 204 g /kW · h | 208 g /kW · h | |
| Generator | Model | UCI 274C 1 | UCI274E2 |
| Rated capacity kVA | 100kVA (80kW) | 140kVA(112kW) | |
| Rated voltage V | 380/220 V | 380/220 V | |
| Rated frequency Hz | 50Hz | 50Hz | |
| Crane | Max. lifting capacity KN·m | 78.4KN · m | |
| Max. working range m | 7.8 ( from crane turning center ) | ||
| Max. lifting height m | 9m | ||
| Turing type | full 360°turing | ||
| Luffing angle(degree) | 1 ~ 80° | ||
| Electrical control | Electrical leakage protection | yes | |
| cabinet | Nos.of external plug | 2 380V total 10kW ,2 220V total 2.2kW | |
| Air compressor ( optional ) | Type | Electrical driving 2 stage piston type | |
| Pressure Mpa | 1.6 MPa | ||
| Flow L/min | 800 L /min | ||
| Gas cylinder(optional) | Type | Manual pump driving hydraulic cylinder up and down | |
| Nos. of carried cylinder | 3 or 4 | ||
About Us
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.

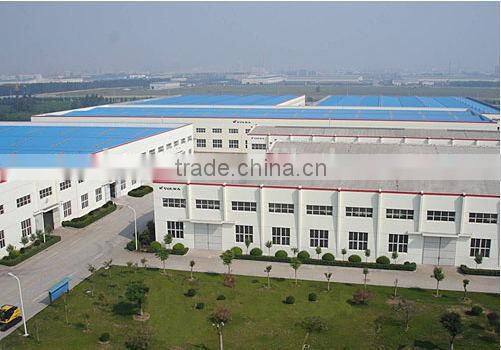

We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our
pruducts.We are also pleased to welcome you to visit our factory.^^
