Specification:
Items |
Main parameters |
Product model |
PMHY100 PMHY125 |
t Overall weight without load |
10.17 10.24 |
mm Overall dimensions(L×W×H) |
5850×2470×3050(600 track width Track shoes) |
kPa Ground ratio pressure without load |
30.15 30.36 |
° Max. climbing angle |
25 |
kN Max. traction power |
91 |
km/h Travelling speed |
Double speed, Ⅰgear 0~2.9 Ⅱ gear 0~4.6 |
kVA Generator rated capacity |
100(80kW) 125(100kW) |
V/Hz Rated voltage/Rated frequency |
380,220 / 50 |
kW/rpm Engine rated power/rpm |
125/2300 132/2200 |
Items |
Main parameters |
|
|
Crane |
t Max. lifting capacity |
3.2 |
m Max. working range |
5.6from slew center of crane |
|
m Max. lifting height |
6.1 |
|
Slew type |
full slew |
|
° Slew angle |
1--65 |
|
Electrical control cabinet |
akage protection |
yes |
Qty. of plug socket |
380V 2pieces total 10kW,220V 2pieces total 2.2kW |
|
Cylinder hoder(optional) |
e |
manual pump driving hydraulic cylinder to control up and down |
Qty. of cylinder loading |
3 or 4 |
|

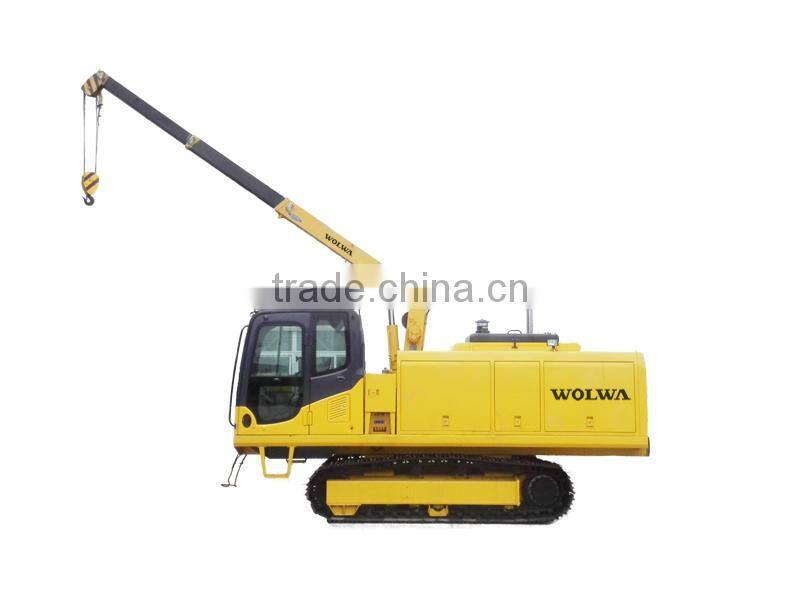

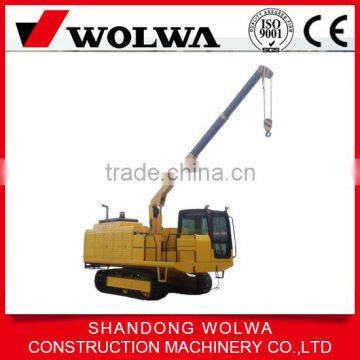

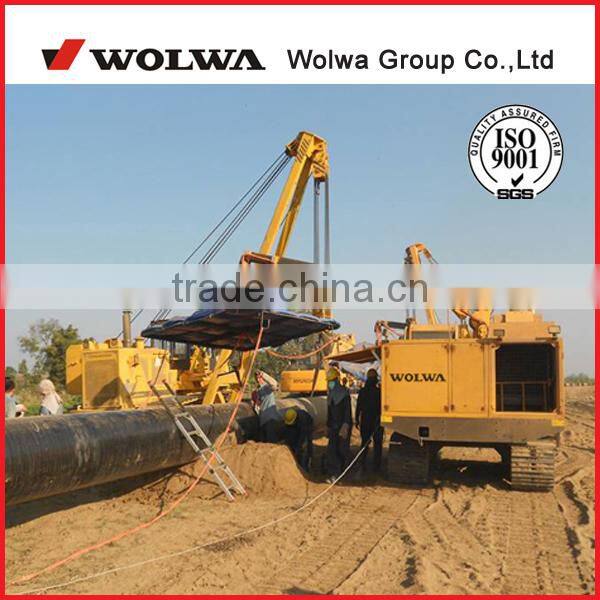

Products Picture
Advantage:
Pay welder is a pipeline construction sepcial equipments, which could offer stable power and own strong load ability. It has functions of travelling, generating, loading, and hoisting, etc, which is a ideal professional equipment. According to different terrain of worksite, we could offer full hydraulic pay welder, wet land pay welder, smart pay welder, wheel type pay welder, etc. We could also produce tailored pay welder according to customer's special demands.
