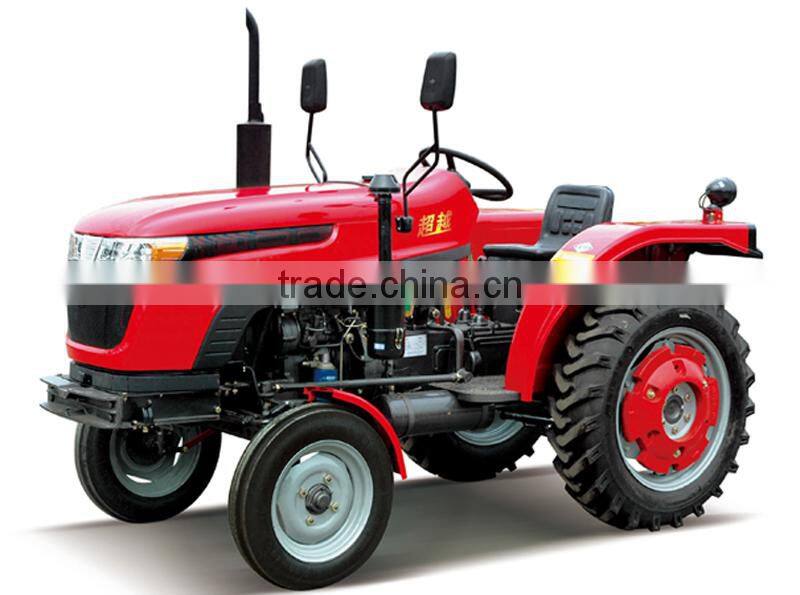

Help CenterChinese Farm Tractor Price With Excellent Quailty GN254, 25HP
Related Products
-
4x4 Mini Tractor Farm Tractor 25hp for SaleUS$ 5,000 - 20,000MOQ: 1 Set -
25HP Micro Chinese Tractor GN254 4*4 FOR SALEUS$ 5,000 - 20,000MOQ: 1 Set
-
Prices of Agricultural Tractor Made in China, GN254, 25HPUS$ 5,000 - 20,000MOQ: 1 Set
-
25HP Mini Tractor Price, Farming Tractor 4*4 TypeUS$ 5,000 - 20,000MOQ: 1 Set
-
Chinese Farm Tractor Price With Excellent Quailty GN304, 30HPUS$ 5,000 - 20,000MOQ: 1 Set
Product Introduction
GN254 25hp tractor Specifications
1)Type:4*4
2)Tractor Model:GN254
3)Wheel base(mm):1755
Specification
Model |
GN254 |
Drive Type |
4×4 |
Engine |
|
Engine Model |
FD295TA |
Engine Type |
inline,vertical,water-cooled,four-stroke |
Cylinder diameter(mm) |
95 |
Stroke(mm) |
115 |
Max Torque(N·m)/Revolving Speed(rpm) |
≥96.8/≤1575 |
Displacement(L) |
1.63 |
Fuel Tank Capacity(L) |
51 |
Engine Rated Power (kW/rpm) |
18.5 |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) |
≤250 |
Drive Train |
|
Clutch |
Dry,single-stage |
Standard PTO speed(rpm) |
(540,1000)/(750,1000)/(540,750) |
Gears |
8F+2R/10F+2R |
Speed range(Km) |
1.73~22.04 |
Steering type |
hydraulic steering |
Gear Shift Mode |
sliding gear shift |
Break System |
|
Service Brake |
pedal,mechanical drive,closed shoe type |
Parking Brake |
locked pedal |
Hydraulic System |
|
Hydraulic Output Flow(L/min) |
30 |
Hydraulic Output Valve |
1 way(optional) |
Working Device |
|
Three-Point Suspension |
postposition,Category I |
Max.Lifting Capacity(kN) |
≥4.16 |
Tillage Depth Adjustment |
position adjustable |
General Parameter |
|
Overall Dimension(L×W×H)mm |
/ |
3105×1430×2090 | |
Wheelbase(mm) |
1755 |
Min. operating weight(kg) |
/ |
1340 | |
Min. Ground Clearance(mm) |
335 |
Min.turning radius(mm) |
3000 |
Maximum Pull(KN) |
7.35 |
Front Tire |
6.0-16 |
Rear Tire |
9.5-24 |
Optional Disposition |
|
|
dual-stage clutch, |

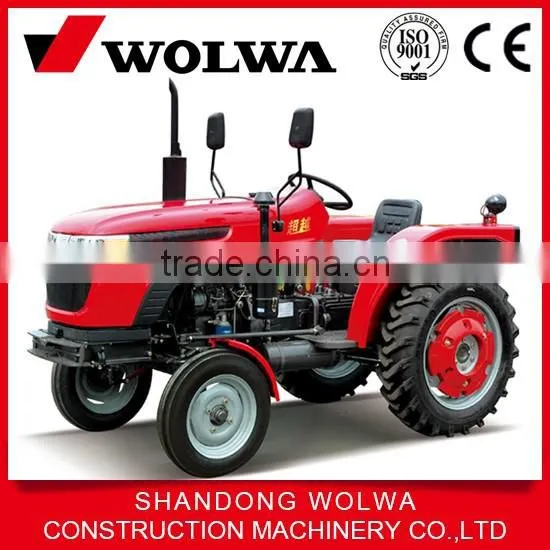

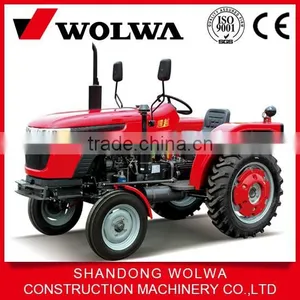

Figure Photos
