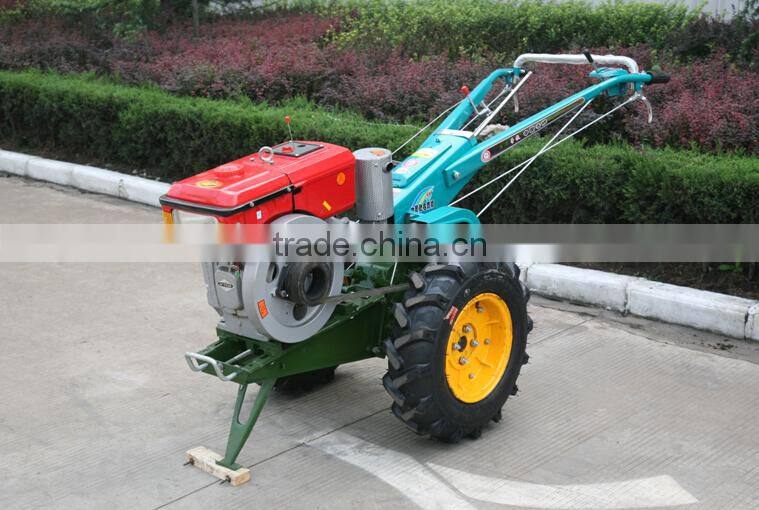

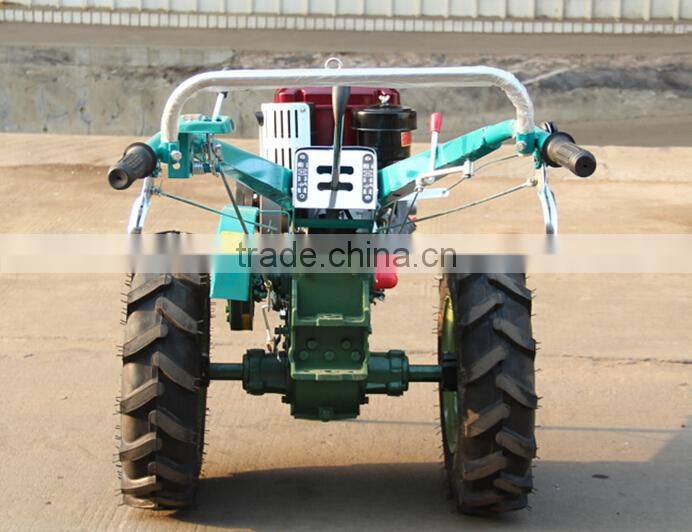

Help CenterChina Factory Supply 10KW 2wd Mini Walking Agricultural Tractor
Related Products
-
Hot Sale 4*2 2wd Multifunction Walking Type Mini Tractor GN101-2 in ChinaUS$ 5,000 - 20,000MOQ: 1 Set -
Hot Sale 8hp GN81-14*2 Walking Type Tractor With Low PriceUS$ 5,000 - 20,000MOQ: 1 Set
-
Hot Sale 8hp 4*2 Walking-behind Tractor for AgricultureUS$ 5,000 - 20,000MOQ: 1 Set
-
China Factory Supply Drive and Pull Agricultural Mini Tractor 8hpUS$ 5,000 - 20,000MOQ: 1 Set
-
China Factory Supply 5.88KW 2wd Mini Walking Agricultural TractorUS$ 5,000 - 20,000MOQ: 1 Set
Product Introduction
Specifications
1)Type:4*2
2)Tractor Model: GN101-2
3)Wheel base(mm):: 680-740
Specification
Item |
unit |
value |
|
whole machine |
brand |
/ |
wolwa |
type |
/ |
GN101-2 |
|
model |
/ |
drive and pull |
|
dimension |
mm |
2180×910×1060 |
|
wheelbase |
mm |
680-740 |
|
min ground clearance |
mm |
210 |
|
min use weight |
kg |
360 |
|
bob-weight |
kg |
/ |
|
gear number |
/ |
6/2 |
|
Engine and clutch coupling mode |
/ |
triangle belt connect |
|
start way |
/ |
manual |
|
engine |
brand |
/ |
wolwa |
model |
/ |
single cylinder ,horizontal type,water cooling ,four travel, votex shedding |
|
type |
/ |
192 |
|
company name |
/ |
wolwa |
|
cylinder number |
/ |
1 |
|
cylinder diameter×travel |
mm |
92×90 |
|
discharge capacity |
L |
0.598 |
|
compression ratio |
/ |
21:1 |
|
calibration power |
kW |
7.35 |
|
calibration rotate speed |
r/min |
2300 |
|
fuel injection pump model ,type |
/ |
single plunger pumpBF1A75Z01 |
|
fuel spray nozzle model type |
/ |
Single shaft pin type PB40S |
|
air filter type model |
/ |
two section oil bath type |
|
cooling system model |
/ |
evaporation water cooling |
|
Hand starting anti-reverse device model type |
|
handle start equipment 185-S0000 |
|
headlight |
type |
/ |
C201-006 |
fuel tank |
type |
/ |
185-11100 |
work pressure |
kPa |
100-120 |
|
volume |
L |
9.1 |
|
Figure Photos
Company Information
Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.
Customers Visiting
Qualification&Certification
Our Factory
Our Service
