Product Introduction
Specifications
1)Type:4*2
2)Tractor Model: GN81-1
3)Wheel base(mm):: 680-740
Specification
Item |
unit |
value |
|
whole machine |
|
/ |
|
type |
/ |
GN81-1 |
|
model |
/ |
drive and pull |
|
dimension |
mm |
2180×940×1150 |
|
wheelbase |
mm |
680-740 |
|
min ground clearance |
mm |
200 |
|
min use weight |
kg |
352 |
|
bob-weight |
kg |
/ |
|
gear number |
/ |
6/2 |
|
Engine and clutch coupling mode |
/ |
triangle belt |
|
start way |
/ |
manual |
|
engine |
brand |
/ |
wolwa |
model |
/ |
single cylinder, horizontal type,water cooling, four travel ,votex shedding |
|
type |
/ |
185 |
|
company name |
/ |
wolwa group |
|
cylinder number |
/ |
1 |
|
cylinder diameter×travel |
mm |
85×90 |
|
discharge capacity |
L |
0.510 |
|
compression ratio |
/ |
21:1 |
|
calibration power |
kW |
5.88 |
|
calibration rotate speed |
r/min |
2200 |
|
fuel injection pump model ,type |
/ |
Single plunger BF1A70Z01 |
|
fuel spray nozzle model type |
/ |
Single shaft pin type PB40S |
|
air filter type model |
/ |
two section oil bath type |
|
cooling system model |
/ |
evaporation cooling |
|
Hand starting anti-reverse device model type |
|
handle start equipment ? 185-S0000 |
|
headlight |
type |
/ |
C201-006 |
fuel tank |
type |
/ |
185-11100 |
work pressure |
kPa |
100-120 |
|
volume |
L |
9.1 |
|

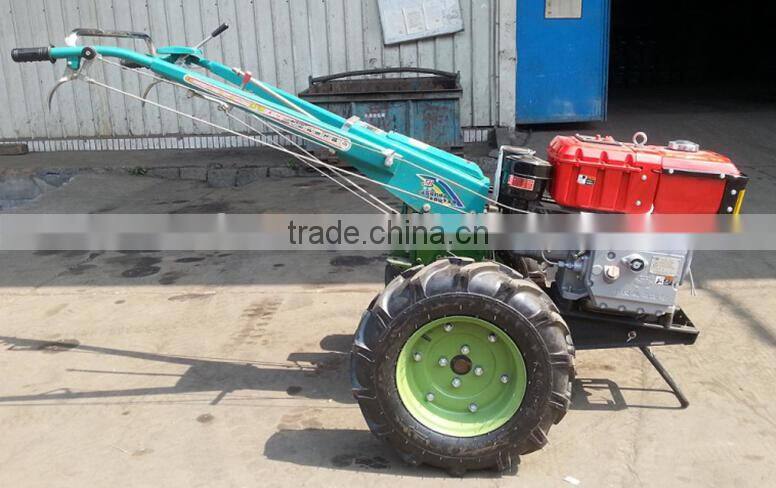

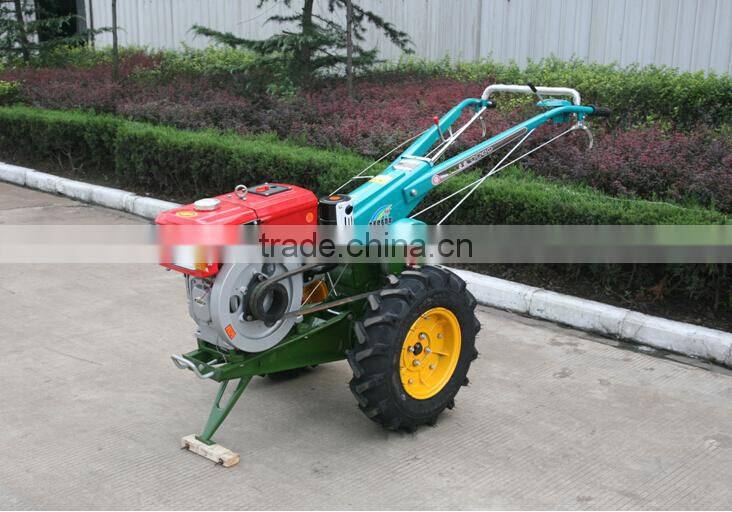

Figure Photos
